Datasheet OP42 (Analog Devices)

制造商Analog Devices
描述High Speed, Fast Settling Precision Operational Amplifier
页数 / 页12 / 1 — DLA LAND AND MARITIME. COLUMBUS, OHIO 43218-3990. STANDARD. …
文件格式/大小PDF / 162 Kb
文件语言英语

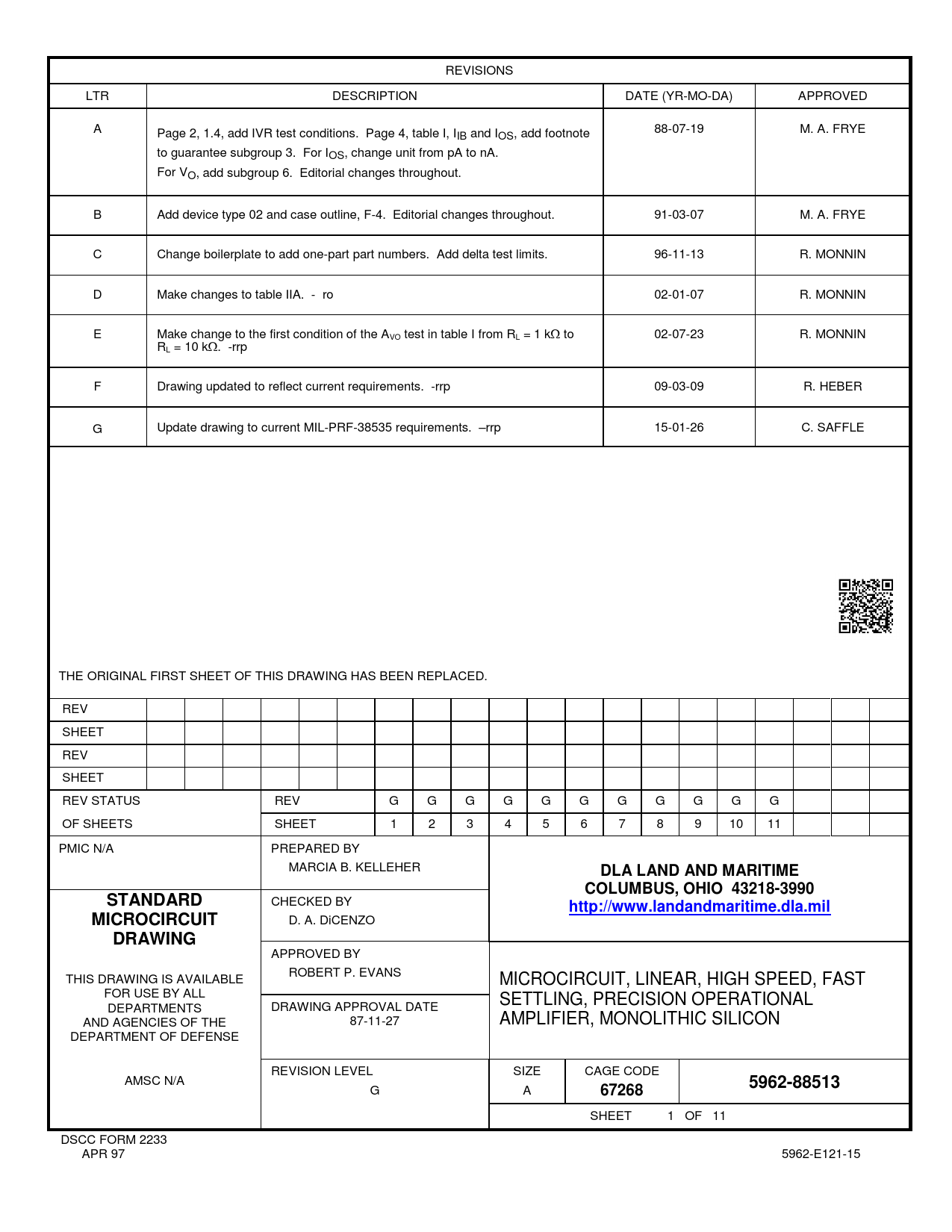

DLA LAND AND MARITIME. COLUMBUS, OHIO 43218-3990. STANDARD. http://www.landandmaritime.dla.mil. MICROCIRCUIT. DRAWING. 5962-88513

Datasheet OP42 Analog Devices

该数据表的模型线

文件文字版本

REVISIONS LTR DESCRIPTION DATE (YR-MO-DA) APPROVED A Page 2, 1.4, add IVR test conditions. Page 4, table I, I 88-07-19 M. A. FRYE IB and IOS, add footnote to guarantee subgroup 3. For IOS, change unit from pA to nA. For VO, add subgroup 6. Editorial changes throughout. B Add device type 02 and case outline, F-4. Editorial changes throughout. 91-03-07 M. A. FRYE C Change boilerplate to add one-part part numbers. Add delta test limits. 96-11-13 R. MONNIN D Make changes to table IIA. - ro 02-01-07 R. MONNIN E Make change to the first condition of the AVO test in table I from RL = 1 kΩ to 02-07-23 R. MONNIN RL = 10 kΩ. -rrp F Drawing updated to reflect current requirements. -rrp 09-03-09 R. HEBER G Update drawing to current MIL-PRF-38535 requirements. –rrp 15-01-26 C. SAFFLE THE ORIGINAL FIRST SHEET OF THIS DRAWING HAS BEEN REPLACED. REV SHEET REV SHEET REV STATUS REV G G G G G G G G G G G OF SHEETS SHEET 1 2 3 4 5 6 7 8 9 10 11 PMIC N/A PREPARED BY MARCIA B. KELLEHER
DLA LAND AND MARITIME COLUMBUS, OHIO 43218-3990 STANDARD
CHECKED BY
http://www.landandmaritime.dla.mil MICROCIRCUIT
D. A. DiCENZO
DRAWING
APPROVED BY ROBERT P. EVANS THIS DRAWING IS AVAILABLE MICROCIRCUIT, LINEAR, HIGH SPEED, FAST FOR USE BY ALL SETTLING, PRECISION OPERATIONAL DEPARTMENTS DRAWING APPROVAL DATE AND AGENCIES OF THE 87-11-27 AMPLIFIER, MONOLITHIC SILICON DEPARTMENT OF DEFENSE REVISION LEVEL SIZE CAGE CODE AMSC N/A
5962-88513
G A
67268
SHEET 1 OF 11 DSCC FORM 2233 APR 97 5962-E121-15 Document Outline DEPARTMENT OF DEFENSE SPECIFICATION DEPARTMENT OF DEFENSE STANDARDS
