Datasheet ADIS16201 (Analog Devices)

制造商Analog Devices
描述Programmable Dual-Axis Inclinometer/Accelerometer
页数 / 页33 / 1 — Programmable Dual-Axis. Inclinometer/Accelerometer. Data Sheet. …
修订版E
文件格式/大小PDF / 605 Kb
文件语言英语

Programmable Dual-Axis. Inclinometer/Accelerometer. Data Sheet. ADIS16201. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet ADIS16201 Analog Devices, 修订版: E

该数据表的模型线

文件文字版本

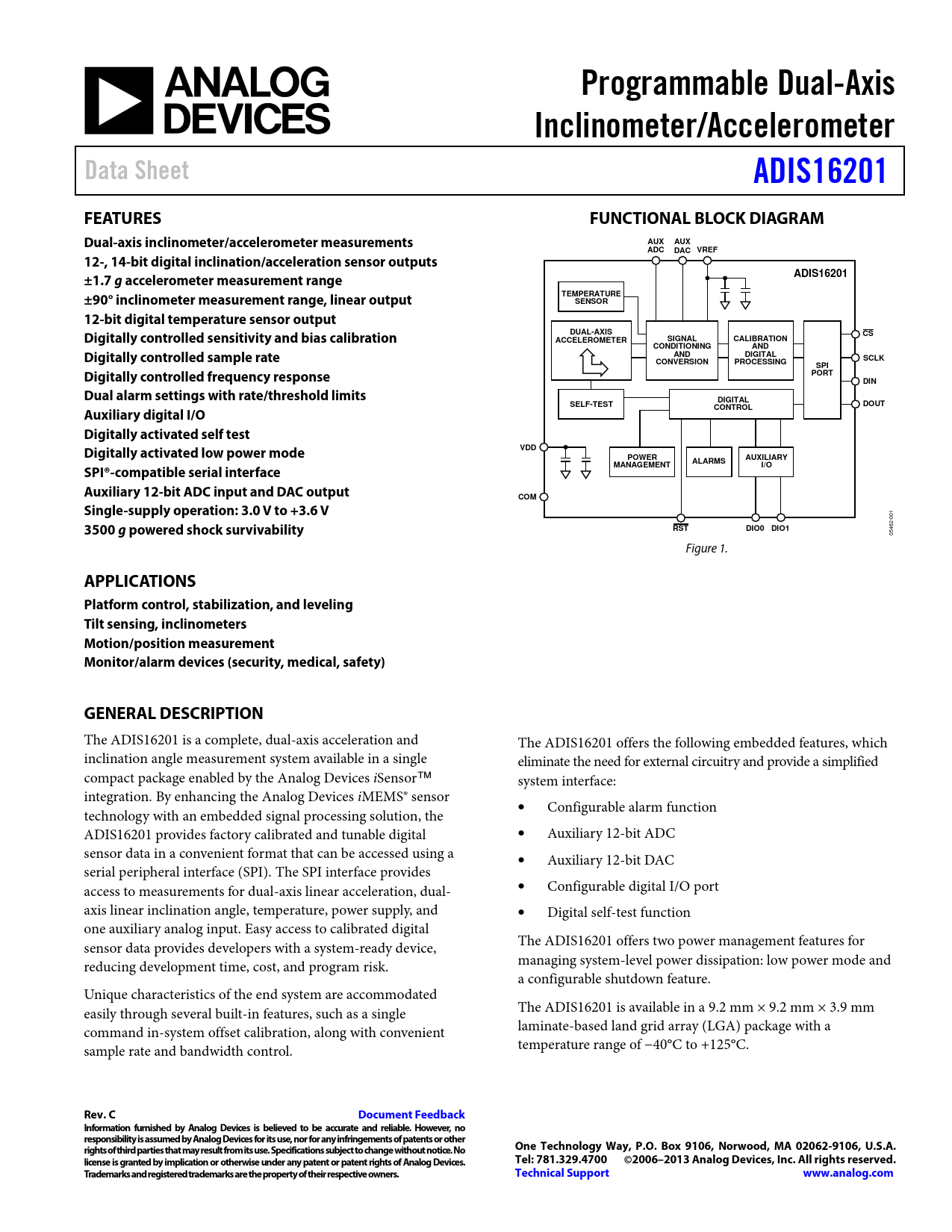

Programmable Dual-Axis Inclinometer/Accelerometer Data Sheet ADIS16201 FEATURES FUNCTIONAL BLOCK DIAGRAM Dual-axis inclinometer/accelerometer measurements AUX AUX ADC DAC VREF 12-, 14-bit digital inclination/acceleration sensor outputs ±1.7 g accelerometer measurement range ADIS16201 ±90° inclinometer measurement range, linear output TEMPERATURE SENSOR 12-bit digital temperature sensor output Digitally controlled sensitivity and bias calibration DUAL-AXIS CS ACCELEROMETER SIGNAL CALIBRATION CONDITIONING AND Digitally controlled sample rate AND DIGITAL SCLK CONVERSION PROCESSING SPI Digitally controlled frequency response PORT DIN Dual alarm settings with rate/threshold limits DIGITAL SELF-TEST DOUT Auxiliary digital I/O CONTROL Digitally activated self test Digitally activated low power mode VDD POWER AUXILIARY ALARMS SPI®-compatible serial interface MANAGEMENT I/O Auxiliary 12-bit ADC input and DAC output COM Single-supply operation: 3.0 V to +3.6 V
001
3500 g powered shock survivability RST DIO0 DIO1
05462- Figure 1.
APPLICATIONS Platform control, stabilization, and leveling Tilt sensing, inclinometers Motion/position measurement Monitor/alarm devices (security, medical, safety) GENERAL DESCRIPTION
The ADIS16201 is a complete, dual-axis acceleration and The ADIS16201 offers the fol owing embedded features, which inclination angle measurement system available in a single eliminate the need for external circuitry and provide a simplified compact package enabled by the Analog Devices iSensor™ system interface: integration. By enhancing the Analog Devices iMEMS® sensor • technology with an embedded signal processing solution, the Configurable alarm function ADIS16201 provides factory calibrated and tunable digital • Auxiliary 12-bit ADC sensor data in a convenient format that can be accessed using a • Auxiliary 12-bit DAC serial peripheral interface (SPI). The SPI interface provides access to measurements for dual-axis linear acceleration, dual- • Configurable digital I/O port axis linear inclination angle, temperature, power supply, and • Digital self-test function one auxiliary analog input. Easy access to calibrated digital sensor data provides developers with a system-ready device, The ADIS16201 offers two power management features for reducing development time, cost, and program risk. managing system-level power dissipation: low power mode and a configurable shutdown feature. Unique characteristics of the end system are accommodated easily through several built-in features, such as a single The ADIS16201 is available in a 9.2 mm × 9.2 mm × 3.9 mm command in-system offset calibration, along with convenient laminate-based land grid array (LGA) package with a sample rate and bandwidth control. temperature range of −40°C to +125°C.
