Datasheet MCP48FEBXX (Microchip) - 4

制造商Microchip
描述8-/10-/12-Bit Single/Dual Voltage Output Nonvolatile Digital-to-Analog Converters with SPI Interface
页数 / 页92 / 4 — MCP48FEBXX. Device Features. # of. Internal. Specified. Device. lutio. …
文件格式/大小PDF / 1.1 Mb
文件语言英语

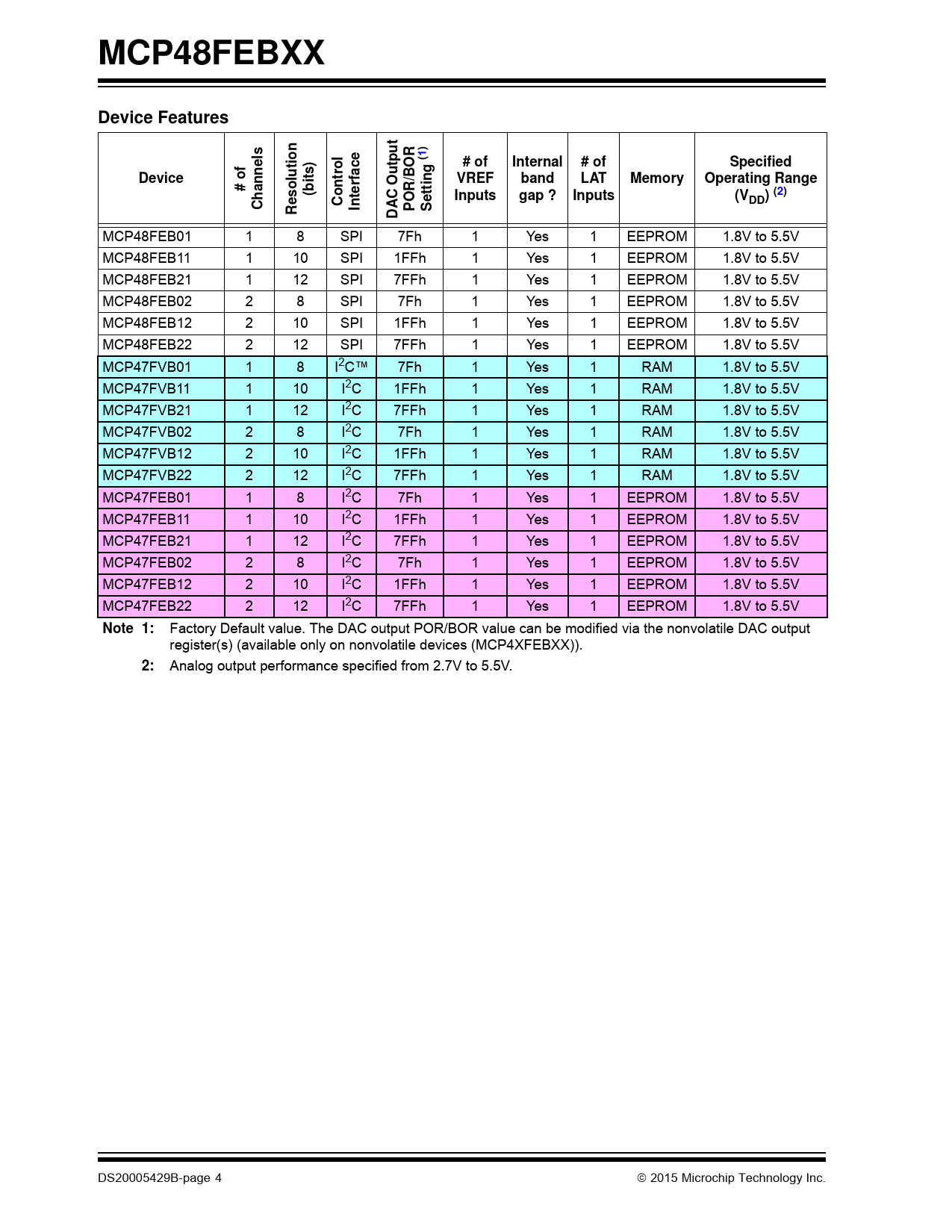

MCP48FEBXX. Device Features. # of. Internal. Specified. Device. lutio. trol. VREF. band. LAT. Memory. Operating Range. # o. o s. (bit. terfac. tting

MCP48FEBXX Device Features # of Internal Specified Device lutio trol VREF band LAT Memory Operating Range # o o s (bit terfac tting

该数据表的模型线

文件文字版本

link to page 4 link to page 4
MCP48FEBXX Device Features n ) ls ut e (1 f ) # of Internal # of Specified ne s Device n lutio trol VREF band LAT Memory Operating Range # o o s (bit terfac tting Inputs gap ? Inputs (V Cha Con DD) (2 ) Re In POR/BOR Se DAC Outp
MCP48FEB01 1 8 SPI 7Fh 1 Yes 1 EEPROM 1.8V to 5.5V MCP48FEB11 1 10 SPI 1FFh 1 Yes 1 EEPROM 1.8V to 5.5V MCP48FEB21 1 12 SPI 7FFh 1 Yes 1 EEPROM 1.8V to 5.5V MCP48FEB02 2 8 SPI 7Fh 1 Yes 1 EEPROM 1.8V to 5.5V MCP48FEB12 2 10 SPI 1FFh 1 Yes 1 EEPROM 1.8V to 5.5V MCP48FEB22 2 12 SPI 7FFh 1 Yes 1 EEPROM 1.8V to 5.5V MCP47FVB01 1 8 I2C™ 7Fh 1 Yes 1 RAM 1.8V to 5.5V MCP47FVB11 1 10 I2C 1FFh 1 Yes 1 RAM 1.8V to 5.5V MCP47FVB21 1 12 I2C 7FFh 1 Yes 1 RAM 1.8V to 5.5V MCP47FVB02 2 8 I2C 7Fh 1 Yes 1 RAM 1.8V to 5.5V MCP47FVB12 2 10 I2C 1FFh 1 Yes 1 RAM 1.8V to 5.5V MCP47FVB22 2 12 I2C 7FFh 1 Yes 1 RAM 1.8V to 5.5V MCP47FEB01 1 8 I2C 7Fh 1 Yes 1 EEPROM 1.8V to 5.5V MCP47FEB11 1 10 I2C 1FFh 1 Yes 1 EEPROM 1.8V to 5.5V MCP47FEB21 1 12 I2C 7FFh 1 Yes 1 EEPROM 1.8V to 5.5V MCP47FEB02 2 8 I2C 7Fh 1 Yes 1 EEPROM 1.8V to 5.5V MCP47FEB12 2 10 I2C 1FFh 1 Yes 1 EEPROM 1.8V to 5.5V MCP47FEB22 2 12 I2C 7FFh 1 Yes 1 EEPROM 1.8V to 5.5V
Note 1:
Factory Default value. The DAC output POR/BOR value can be modified via the nonvolatile DAC output register(s) (available only on nonvolatile devices (MCP4XFEBXX)).
2:
Analog output performance specified from 2.7V to 5.5V. DS20005429B-page 4  2015 Microchip Technology Inc. Document Outline Features Package Types General Description Applications MCP48FEBX1 Device Block Diagram (Single-Channel Output) MCP48FEBX2 Device Block Diagram (Dual-Channel Output) Device Features 1.0 Electrical Characteristics Absolute Maximum Ratings (†) DC Characteristics DC Characteristics (Continued) DC Characteristics (Continued) DC Characteristics (Continued) DC Characteristics (Continued) DC Characteristics (Continued) DC Characteristics (Continued) DC Characteristics (Continued) DC Characteristics (Continued) DC Characteristics (Continued) DC Notes: 1.1 Reset, Power-Down, and SPI Mode Timing Waveforms and Requirements FIGURE 1-1: Power-on and Brown-out Reset Waveforms. FIGURE 1-2: SPI Power-Down Command Waveforms. TABLE 1-1: RESET and Power-Down Timing FIGURE 1-3: VOUT Settling Time Waveform. TABLE 1-2: VOUT Settling Timing FIGURE 1-4: SPI Timing (Mode = 11) Waveforms. FIGURE 1-5: SPI Timing (Mode = 00) Waveforms. TABLE 1-3: SPI Requirements (Mode = 11) TABLE 1-4: SPI Requirements (Mode = 00) Timing Table Notes: Temperature Specifications 2.0 Typical Performance Curves 3.0 Pin Descriptions TABLE 3-1: MCP48FEBX1 (Single-DAC) Pinout Description TABLE 3-2: MCP48FEBX2 (Dual-DAC) Pinout Description 3.1 Positive Power Supply Input (VDD) 3.2 Voltage Reference Pin (VREF) 3.3 Analog Output Voltage Pin (VOUT) 3.4 No Connect (NC) 3.5 Ground (VSS) 3.6 Latch Pin (LAT)/High-Voltage Command (HVC) 3.7 SPI - Chip Select Pin (CS) 3.8 SPI - Serial Data In Pin (SDI) 3.9 SPI - Serial Data Out Pin (SDO) 3.10 SPI - Serial Clock Pin (SCK) 4.0 General Description 4.1 Power-on Reset/Brown-out Reset (POR/BOR) FIGURE 4-1: Power-on Reset Operation. 4.2 Device Memory TABLE 4-1: Memory Map (x16) TABLE 4-2: Factory Default POR / BOR Values TABLE 4-3: WiperLock™ Technology Configuration Bits - Functional Description Register 4-1: DAC0 and DAC1 Registers (Volatile and Nonvolatile) Register 4-2: Voltage Reference (VREF) Control Register (Volatile and Nonvolatile) (Addresses 08h and 18h) Register 4-3: Power-down Control Register (Volatile and Nonvolatile) (Addresses 09h, 19h) Register 4-4: Gain Control and System Status Register (Volatile) (Address 0Ah) Register 4-5: Gain Control Register (Nonvolatile) (Address 1AH) Register 4-6: DAC Wiperlock Technology Status Register (Volatile) (Address 0Bh) 5.0 DAC Circuitry FIGURE 5-1: MCP48FEBXX DAC Module Block Diagram. 5.1 Resistor Ladder FIGURE 5-2: Resistor Ladder Model Block Diagram. 5.2 Voltage Reference Selection FIGURE 5-3: Resistor Ladder Reference Voltage Selection Block Diagram. FIGURE 5-4: Reference Voltage Selection Implementation Block Diagram. 5.3 Output Buffer/VOUT Operation TABLE 5-1: Output Driver Gain FIGURE 5-5: Output Driver Block Diagram. TABLE 5-2: Theoretical Step Voltage (VS) (1) FIGURE 5-6: VOUT pin Slew Rate. FIGURE 5-7: Circuit to Stabilize Output Buffer for Large Capacitive Loads (CL). TABLE 5-3: DAC Input Code Vs. Calculated Analog Output (VOUT) (VDD = 5.0V) 5.4 Internal Band Gap TABLE 5-4: VOUT Using Band Gap 5.5 Latch Pin (LAT) FIGURE 5-8: LAT and DAC Interaction. FIGURE 5-9: Example use of LAT pin operation. 5.6 Power-Down Operation FIGURE 5-10: VOUT Power-Down Block Diagram. TABLE 5-5: Power-down bits and Output resistive load TABLE 5-6: DAC Current Sources 5.7 DAC Registers, Configuration Bits, and Status Bits 6.0 SPI Serial Interface Module 6.1 Overview 6.2 SPI Serial Interface 6.3 Communication Data Rates 6.4 POR/BOR FIGURE 6-1: Typical SPI Interface Block Diagram. 6.5 Interface Pins (CS, SCK, SDI, SDO, and LAT/HVC) 7.0 SPI Commands TABLE 7-1: SPI Commands - Number of Clocks TABLE 7-2: Command Bit Overview FIGURE 7-1: 8-Bit SPI Command Format. FIGURE 7-2: 24-bit SPI Command Format. 7.1 Write Command TABLE 7-3: Volatile Memory Addresses FIGURE 7-3: Write Command - SDI and SDO States. FIGURE 7-4: Continuous Write Sequence (Volatile Memory only). FIGURE 7-5: 24-Bit Write Command (C1:C0 = “00”) - SPI Waveform with PIC MCU (Mode 1,1). FIGURE 7-6: 24-Bit Write Command (C1:C0 = “00”) - SPI Waveform with PIC MCU (Mode 0,0). 7.2 Read Command FIGURE 7-7: Read Command - SDI and SDO States. FIGURE 7-8: Continuous-Reads Sequence. FIGURE 7-9: 24-Bit Read Command (C1:C0 = “11”) - SPI Waveform with PIC MCU (Mode 1,1). FIGURE 7-10: 24-Bit Read Command (C1:C0 = “11”) - SPI Waveform with PIC MCU (Mode 0,0). 7.3 Commands to Modify the Device Configuration Bits 7.4 Enable Configuration Bit FIGURE 7-11: Enable Command Sequence. FIGURE 7-12: 8-Bit Enable Command (C1:C0 = “10”) - SPI Waveform with PIC MCU (Mode 1,1). FIGURE 7-13: 8-Bit Enable Command (C1:C0 = “10”) - SPI Waveform with PIC MCU (Mode 0,0). 7.5 Disable Configuration Bit FIGURE 7-14: Disable Command Sequence. FIGURE 7-15: 8-Bit Disable Command (C1:C0 = “01”) - SPI Waveform with PIC MCU (Mode 1,1). FIGURE 7-16: 8-Bit Disable Command (C1:C0 = “01”) - SPI Waveform with PIC MCU (Mode 0,0). 8.0 Typical Applications 8.1 Power Supply Considerations FIGURE 8-1: Bypass Filtering Example Circuit. 8.2 Application Examples FIGURE 8-2: Example Circuit Of Set Point or Threshold Calibration. FIGURE 8-3: Single-Supply “Window” DAC. 8.3 Bipolar Operation FIGURE 8-4: Digitally-Controlled Bipolar Voltage Source Example Circuit. 8.4 Selectable Gain and Offset Bipolar Voltage Output FIGURE 8-5: Bipolar Voltage Source with Selectable Gain and Offset. 8.5 Designing a Double-Precision DAC FIGURE 8-6: Simple Double-Precision DAC using MCP48FEBX2. 8.6 Building Programmable Current Source FIGURE 8-7: Digitally-Controlled Current Source. 8.7 Serial Interface Communication Times TABLE 8-1: Serial Interface Times / Frequencies 8.8 Design Considerations FIGURE 8-8: Typical Microcontroller Connections. TABLE 8-2: Package Footprint(1) 9.0 Development Support 9.1 Development Tools 9.2 Technical Documentation TABLE 9-1: Technical Documentation 10.0 Packaging Information 10.1 Package Marking Information 8-/10-/12-Bit Single/Dual Voltage Output Nonvolatile Digital-to-Analog Converters with SPI Interface Appendix A: Revision History Revision B (September 2015) Revision A (September 2015) Appendix B: Terminology B.1 Resolution B.2 Least Significant Bit (LSb) B.3 Monotonic Operation FIGURE B-1: VW (VOUT). B.4 Full-Scale Error (EFS) B.5 Zero-Scale Error (EZS) B.6 Total Unadjusted Error (ET) B.7 Offset Error (EOS) FIGURE B-2: Offset Error and Zero-Scale Error. B.8 Offset Error Drift (EOSD) B.9 Gain Error (EG) FIGURE B-3: Gain Error and Full-Scale Error Example. B.10 Gain-Error Drift (EGD) B.11 Integral Nonlinearity (INL) FIGURE B-4: INL Accuracy. B.12 Differential Nonlinearity (DNL) FIGURE B-5: DNL Accuracy. B.13 Settling Time B.14 Major-Code Transition Glitch B.15 Digital Feed-through B.16 -3 dB Bandwidth B.17 Power-Supply Sensitivity (PSS) B.18 Power-Supply Rejection Ratio (PSRR) B.19 VOUT Temperature Coefficient B.20 Absolute Temperature Coefficient B.21 Noise Spectral Density Product Identification System Worldwide Sales and Service
