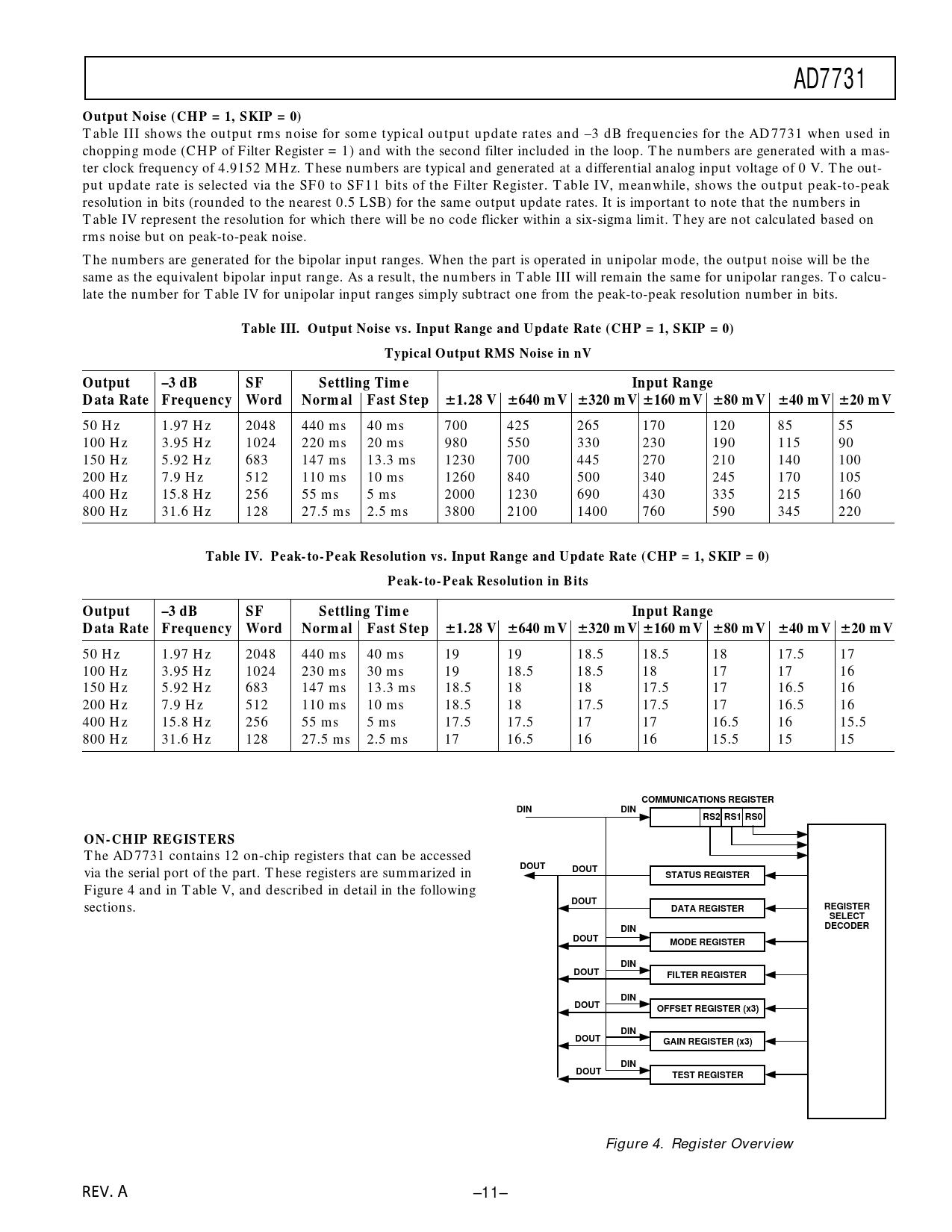

AD7731 Output Noise (CHP = 1, SKIP = 0)
Table III shows the output rms noise for some typical output update rates and –3 dB frequencies for the AD7731 when used in chopping mode (CHP of Filter Register = 1) and with the second filter included in the loop. The numbers are generated with a mas- ter clock frequency of 4.9152 MHz. These numbers are typical and generated at a differential analog input voltage of 0 V. The out- put update rate is selected via the SF0 to SF11 bits of the Filter Register. Table IV, meanwhile, shows the output peak-to-peak resolution in bits (rounded to the nearest 0.5 LSB) for the same output update rates. It is important to note that the numbers in Table IV represent the resolution for which there will be no code flicker within a six-sigma limit. They are not calculated based on rms noise but on peak-to-peak noise. The numbers are generated for the bipolar input ranges. When the part is operated in unipolar mode, the output noise will be the same as the equivalent bipolar input range. As a result, the numbers in Table III will remain the same for unipolar ranges. To calcu- late the number for Table IV for unipolar input ranges simply subtract one from the peak-to-peak resolution number in bits.
Table III. Output Noise vs. Input Range and Update Rate (CHP = 1, SKIP = 0) Typical Output RMS Noise in nV Output –3 dB SF Settling Time Input Range Data Rate Frequency Word Normal Fast Step
6
1.28 V
6
640 mV
6
320 mV
6
160 mV
6
80 mV
6
40 mV
6
20 mV
50 Hz 1.97 Hz 2048 440 ms 40 ms 700 425 265 170 120 85 55 100 Hz 3.95 Hz 1024 220 ms 20 ms 980 550 330 230 190 115 90 150 Hz 5.92 Hz 683 147 ms 13.3 ms 1230 700 445 270 210 140 100 200 Hz 7.9 Hz 512 110 ms 10 ms 1260 840 500 340 245 170 105 400 Hz 15.8 Hz 256 55 ms 5 ms 2000 1230 690 430 335 215 160 800 Hz 31.6 Hz 128 27.5 ms 2.5 ms 3800 2100 1400 760 590 345 220
Table IV. Peak-to-Peak Resolution vs. Input Range and Update Rate (CHP = 1, SKIP = 0) Peak-to-Peak Resolution in Bits Output –3 dB SF Settling Time Input Range Data Rate Frequency Word Normal Fast Step
6
1.28 V
6
640 mV
6
320 mV
6
160 mV
6
80 mV
6
40 mV
6
20 mV
50 Hz 1.97 Hz 2048 440 ms 40 ms 19 19 18.5 18.5 18 17.5 17 100 Hz 3.95 Hz 1024 230 ms 30 ms 19 18.5 18.5 18 17 17 16 150 Hz 5.92 Hz 683 147 ms 13.3 ms 18.5 18 18 17.5 17 16.5 16 200 Hz 7.9 Hz 512 110 ms 10 ms 18.5 18 17.5 17.5 17 16.5 16 400 Hz 15.8 Hz 256 55 ms 5 ms 17.5 17.5 17 17 16.5 16 15.5 800 Hz 31.6 Hz 128 27.5 ms 2.5 ms 17 16.5 16 16 15.5 15 15
COMMUNICATIONS REGISTER DIN DIN RS2 RS1 RS0 ON-CHIP REGISTERS
The AD7731 contains 12 on-chip registers that can be accessed
DOUT
via the serial port of the part. These registers are summarized in
DOUT STATUS REGISTER
Figure 4 and in Table V, and described in detail in the following sections.
DOUT REGISTER DATA REGISTER SELECT DECODER DIN DOUT MODE REGISTER DIN DOUT FILTER REGISTER DIN DOUT OFFSET REGISTER (x3) DIN DOUT GAIN REGISTER (x3) DIN DOUT TEST REGISTER
Figure 4. Register Overview REV. 0 REV. A –11– Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM AD7731-SPECIFICATIONS TIMING CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS Ordering Guide ESD Caution PIN CONFIGURATION Pin Function Descriptions TERMINOLOGY OUTPUT NOISE AND RESOLUTION SPECIFICATION Output Noise (CHP = 0, SKIP= 1) Output Noise (CHP = 1, SKIP = 0) ON-CHIP REGISTERS Communications Register (RS2-RS0 = 0, 0, 0) Status Register (RS2-RS0 = 0, 0, 0); Power-On/Reset Status: CX Hex Data Register (RS2-RS0 = 0, 0, 1); Power On/Reset Status: 000000 Hex Mode Register (RS2-RS0 = 0, 1, 0); Power-On/Reset Status: 0174 Hex Filter Register (RS2-RS0 = 0, 1, 1); Power-On/Reset Status: 2002 Hex Offset Calibration Register (RS2-RS0 = 1, 0, 1) Gain Calibration Register (RS2-RS0 = 1, 1, 0) Test Register (RS2-RS0 = 1, 1, 1); Power On/Reset Status: 000000 Hex READING FROM AND WRITING TO THE ON-CHIP REGISTERS CALIBRATION OPERATION SUMMARY CIRCUIT DESCRIPTION ANALOG INPUT Analog Input Channels Buffered Inputs Analog Input Ranges Programmable Gain Amplifier Bipolar/Unipolar Inputs Burnout Currents REFERENCE INPUT Reference Detect SIGMA-DELTA MODULATOR DIGITAL FILTERING Filter Architecture First State Filter/SKIP Mode Enabled (SKIP =1) Nonchop Mode (SKIP =1, CHP = 0) Chop Mode (SKIP = 1, CHP =1) Second Stage Filter Normal FIR Operation (SKIP = 0) Chop Mode (SKIP = 0, CHP =1) Nonchop Mode (SKIP = 1, CHP = 0) FASTStep Mode (SKIP = 0, FAST = 1) CALIBRATION Internal Zero-Scale Calibration Internal Full-Scale Calibration System Zero-Scale Calibration System Full-Scale Calibration Span and Offset Limits Power-Up and Calibration Drift Considerations USING THE AD7731 Clocking and Oscillator Circuit System Synchronization Single-Shot Conversions Reset Input Standby Mode Digital Outputs POWER SUPPLIES Grounding and Layout Evaluting the AD7731 Performance SERIAL INTERFACE Write Operation Read Operation CONFIGURING THE AD7731 MICROCOMPUTER/MICROPROCESSOR INTERFACING AD7731 to 68HC11 Interface AD7731 to 8051 Interface AD7731 to ADSP-2103/ADSP-2105 Interface APPLICATIONS Data Acquisition Programmable Logic Controllers Pressure Measurement Temperature Measurement Bipolar Input Signals PAGE INDEX TABLE INDEX OUTLINE DIMENSIONS
