14-Bit, 20/40/65/80 MSPS,. 1.8 V Analog-to-Digital Converter. Data Sheet. AD9649. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet AD9649 Analog Devices, 修订版: B

该数据表的模型线

文件文字版本

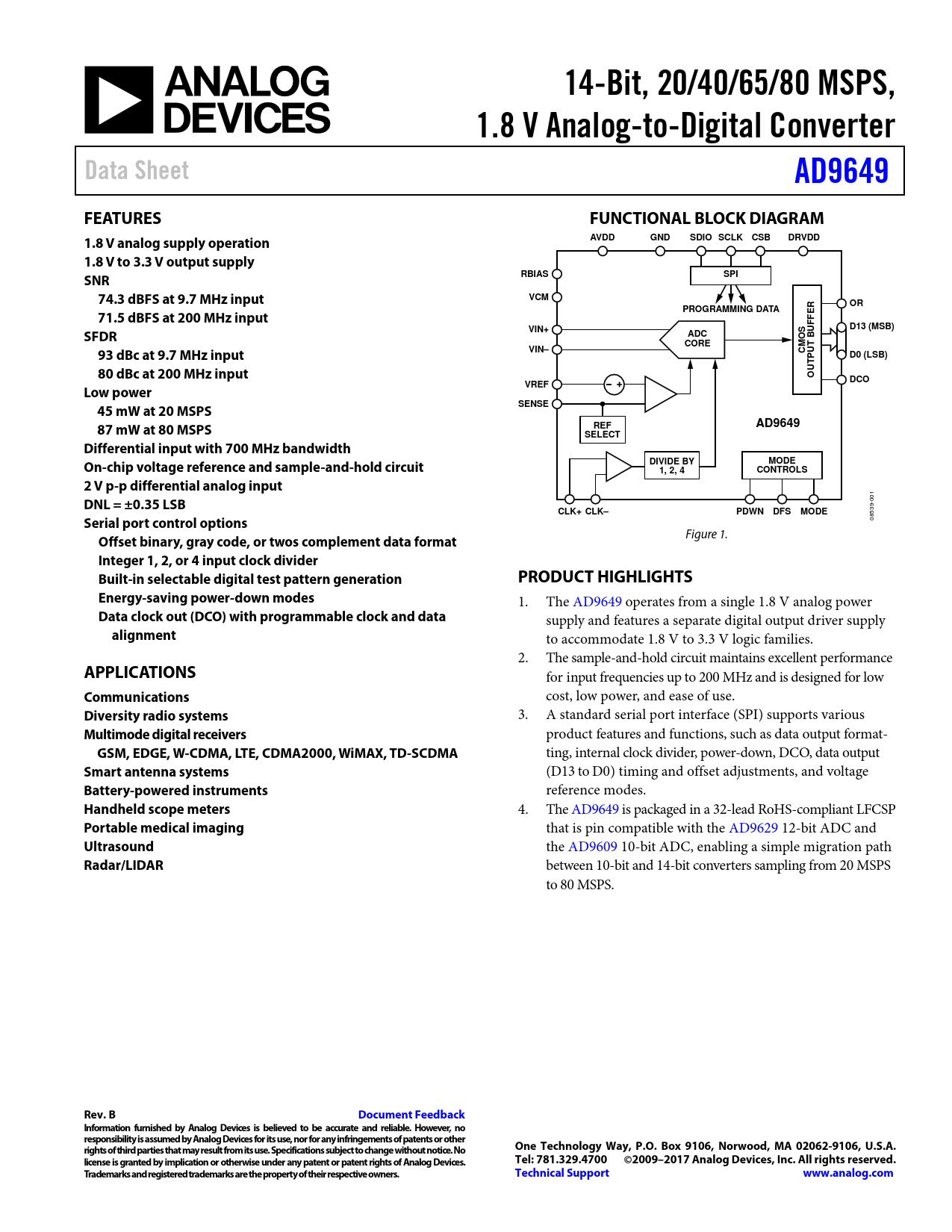

14-Bit, 20/40/65/80 MSPS, 1.8 V Analog-to-Digital Converter Data Sheet AD9649 FEATURES FUNCTIONAL BLOCK DIAGRAM 1.8 V analog supply operation AVDD GND SDIO SCLK CSB DRVDD 1.8 V to 3.3 V output supply SNR RBIAS SPI 74.3 dBFS at 9.7 MHz input VCM R OR PROGRAMMING DATA 71.5 dBFS at 200 MHz input FFE D13 (MSB) SFDR VIN+ S U ADC O CORE T B 93 dBc at 9.7 MHz input VIN– CM U D0 (LSB) TP 80 dBc at 200 MHz input OU DCO Low power VREF 45 mW at 20 MSPS SENSE 87 mW at 80 MSPS REF AD9649 SELECT Differential input with 700 MHz bandwidth On-chip voltage reference and sample-and-hold circuit DIVIDE BY MODE 1, 2, 4 CONTROLS 2 V p-p differential analog input DNL = ±0.35 LSB
001
CLK+ CLK– PDWN DFS MODE Serial port control options
08539-
Offset binary, gray code, or twos complement data format
Figure 1.
Integer 1, 2, or 4 input clock divider Built-in selectable digital test pattern generation PRODUCT HIGHLIGHTS Energy-saving power-down modes
1. The AD9649 operates from a single 1.8 V analog power
Data clock out (DCO) with programmable clock and data
supply and features a separate digital output driver supply
alignment
to accommodate 1.8 V to 3.3 V logic families. 2. The sample-and-hold circuit maintains excel ent performance
APPLICATIONS
for input frequencies up to 200 MHz and is designed for low
Communications
cost, low power, and ease of use.
Diversity radio systems
3. A standard serial port interface (SPI) supports various
Multimode digital receivers
product features and functions, such as data output format-
GSM, EDGE, W-CDMA, LTE, CDMA2000, WiMAX, TD-SCDMA
ting, internal clock divider, power-down, DCO, data output
Smart antenna systems
(D13 to D0) timing and offset adjustments, and voltage
Battery-powered instruments
reference modes.
Handheld scope meters
4. The AD9649 is packaged in a 32-lead RoHS-compliant LFCSP
Portable medical imaging
that is pin compatible with the AD9629 12-bit ADC and
Ultrasound
the AD9609 10-bit ADC, enabling a simple migration path
Radar/LIDAR
between 10-bit and 14-bit converters sampling from 20 MSPS to 80 MSPS.
