16-Bit, 1 MSPS, 8-Channel. Data Acquisition System. Data Sheet. ADAS3022. FEATURES

Datasheet ADAS3022 Analog Devices, 修订版: D

该数据表的模型线

文件文字版本

link to page 1 link to page 27 link to page 27 link to page 26 link to page 1

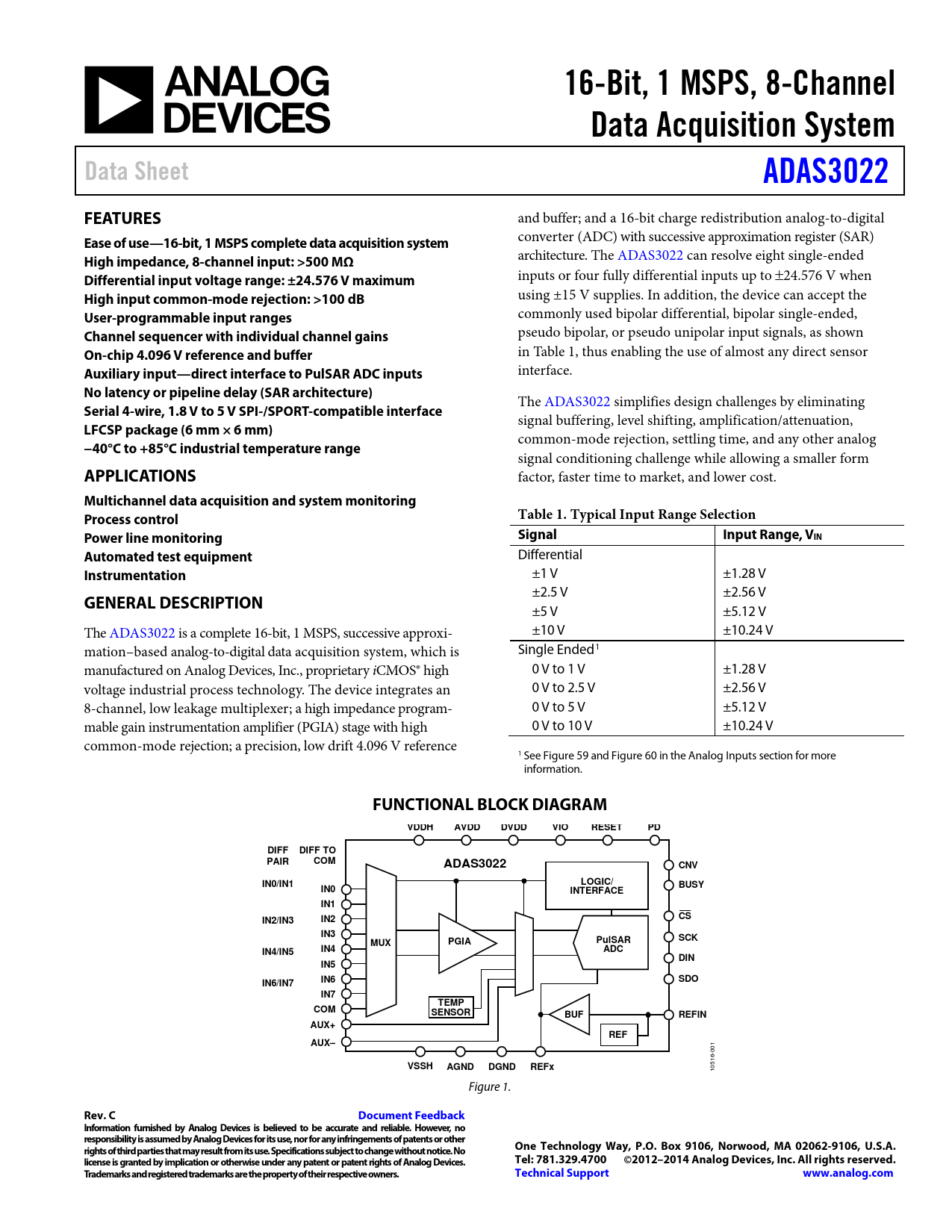

16-Bit, 1 MSPS, 8-Channel Data Acquisition System Data Sheet ADAS3022 FEATURES
and buffer; and a 16-bit charge redistribution analog-to-digital
Ease of use—16-bit, 1 MSPS complete data acquisition system
converter (ADC) with successive approximation register (SAR)
High impedance, 8-channel input: >500 MΩ
architecture. The ADAS3022 can resolve eight single-ended
Differential input voltage range: ±24.576 V maximum
inputs or four fully differential inputs up to ±24.576 V when
High input common-mode rejection: >100 dB
using ±15 V supplies. In addition, the device can accept the
User-programmable input ranges
commonly used bipolar differential, bipolar single-ended,
Channel sequencer with individual channel gains
pseudo bipolar, or pseudo unipolar input signals, as shown
On-chip 4.096 V reference and buffer
in Table 1, thus enabling the use of almost any direct sensor
Auxiliary input—direct interface to PulSAR ADC inputs
interface.
No latency or pipeline delay (SAR architecture)
The ADAS3022 simplifies design challenges by eliminating
Serial 4-wire, 1.8 V to 5 V SPI-/SPORT-compatible interface
signal buffering, level shifting, amplification/attenuation,
LFCSP package (6 mm × 6 mm)
common-mode rejection, settling time, and any other analog
−40°C to +85°C industrial temperature range
signal conditioning challenge while allowing a smaller form
APPLICATIONS
factor, faster time to market, and lower cost.
Multichannel data acquisition and system monitoring Process control Table 1. Typical Input Range Selection Power line monitoring Signal Input Range, VIN Automated test equipment
Differential
Instrumentation
±1 V ±1.28 V ±2.5 V ±2.56 V
GENERAL DESCRIPTION
±5 V ±5.12 V The ADAS3022 is a complete 16-bit, 1 MSPS, successive approxi- ±10 V ±10.24 V mation–based analog-to-digital data acquisition system, which is Single Ended1 manufactured on Analog Devices, Inc., proprietary iCMOS® high 0 V to 1 V ±1.28 V voltage industrial process technology. The device integrates an 0 V to 2.5 V ±2.56 V 8-channel, low leakage multiplexer; a high impedance program- 0 V to 5 V ±5.12 V mable gain instrumentation amplifier (PGIA) stage with high 0 V to 10 V ±10.24 V common-mode rejection; a precision, low drift 4.096 V reference 1 See Figure 59 and Figure 60 in the Analog Inputs section for more information.
FUNCTIONAL BLOCK DIAGRAM VDDH AVDD DVDD VIO RESET PD DIFF DIFF TO PAIR COM ADAS3022 CNV IN0/IN1 LOGIC/ IN0 BUSY INTERFACE IN1 IN2/IN3 IN2 CS IN3 PulSAR SCK MUX PGIA IN4 IN4/IN5 ADC DIN IN5 IN6 SDO IN6/IN7 IN7 TEMP COM SENSOR BUF REFIN AUX+ REF AUX–
001
VSSH AGND DGND REFx
10516- Figure 1.
Rev. C Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2012–2014 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
