Datasheet LTC3528-2 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | 1A, 2MHz Synchronous Step-Up DC/DC Converter in 2mm × 3mm DFN |
| 页数 / 页 | 18 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. … |
| 文件格式/大小 | PDF / 406 Kb |
| 文件语言 | 英语 |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING
该数据表的模型线
文件文字版本

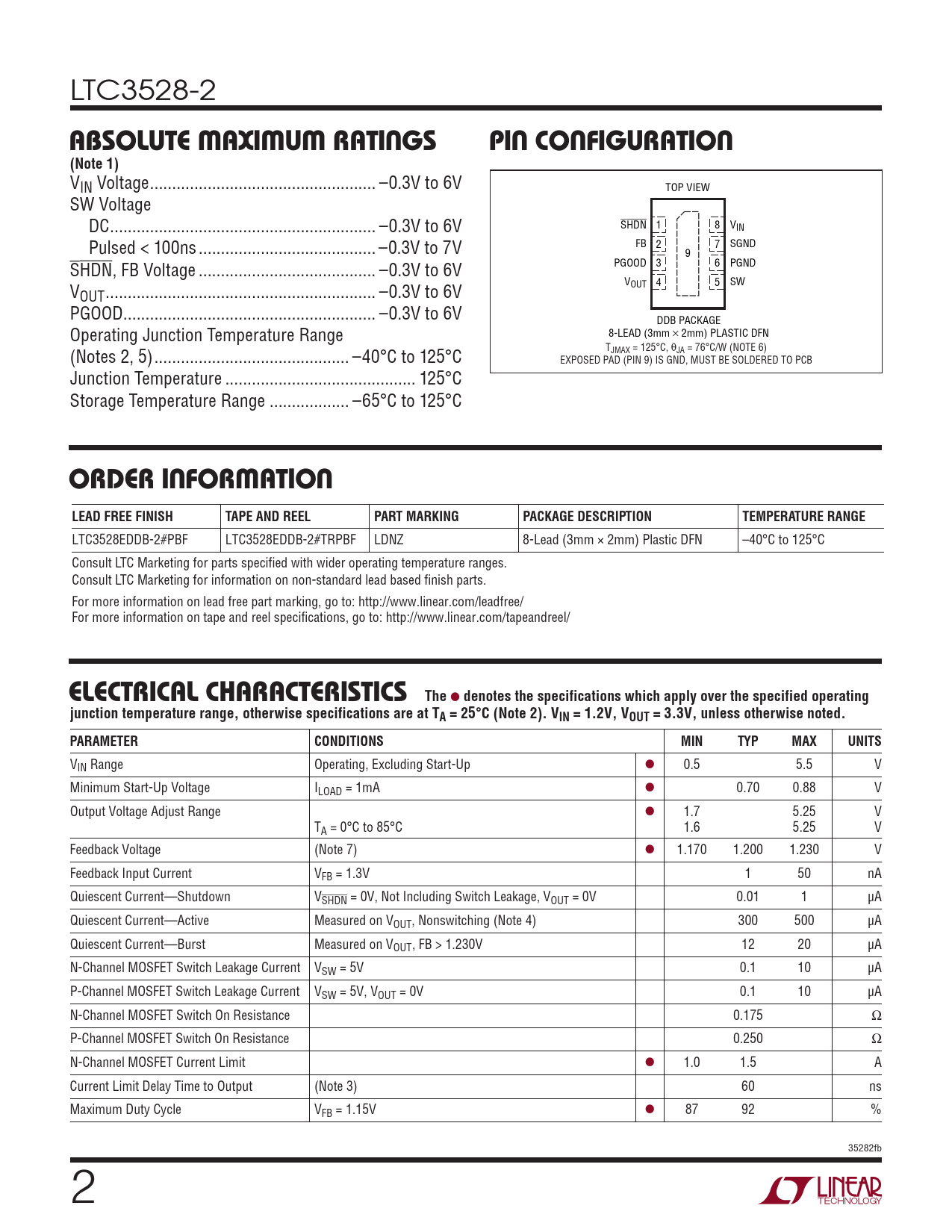

LTC3528-2
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
VIN Voltage ... –0.3V to 6V TOP VIEW SW Voltage DC .. –0.3V to 6V SHDN 1 8 VIN Pulsed < 100ns .. –0.3V to 7V FB 2 7 SGND 9 SHDN, FB Voltage .. –0.3V to 6V PGOOD 3 6 PGND V VOUT 4 5 SW OUT ... –0.3V to 6V PGOOD ... –0.3V to 6V DDB PACKAGE Operating Junction Temperature Range 8-LEAD (3mm × 2mm) PLASTIC DFN (Notes 2, 5) .. –40°C to 125°C TJMAX = 125°C, θJA = 76°C/W (NOTE 6) EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO PCB Junction Temperature ... 125°C Storage Temperature Range .. –65°C to 125°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3528EDDB-2#PBF LTC3528EDDB-2#TRPBF LDNZ 8-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TA = 25°C (Note 2). VIN = 1.2V, VOUT = 3.3V, unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN Range Operating, Excluding Start-Up l 0.5 5.5 V Minimum Start-Up Voltage ILOAD = 1mA l 0.70 0.88 V Output Voltage Adjust Range l 1.7 5.25 V TA = 0°C to 85°C 1.6 5.25 V Feedback Voltage (Note 7) l 1.170 1.200 1.230 V Feedback Input Current VFB = 1.3V 1 50 nA Quiescent Current—Shutdown VSHDN = 0V, Not Including Switch Leakage, VOUT = 0V 0.01 1 µA Quiescent Current—Active Measured on VOUT, Nonswitching (Note 4) 300 500 µA Quiescent Current—Burst Measured on VOUT , FB > 1.230V 12 20 µA N-Channel MOSFET Switch Leakage Current VSW = 5V 0.1 10 µA P-Channel MOSFET Switch Leakage Current VSW = 5V, VOUT = 0V 0.1 10 µA N-Channel MOSFET Switch On Resistance 0.175 Ω P-Channel MOSFET Switch On Resistance 0.250 Ω N-Channel MOSFET Current Limit l 1.0 1.5 A Current Limit Delay Time to Output (Note 3) 60 ns Maximum Duty Cycle VFB = 1.15V l 87 92 % 35282fb 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Related Parts
