Datasheet Linear Technology LT1613 (Linear Technology) - 12
| 制造商 | Linear Technology |
| 描述 | 1.4MHz, Single Cell DC/DC Converter in 5-Lead SOT-23 |
| 页数 / 页 | 12 / 12 — TYPICAL APPLICATIONS. Li-Ion to 16V/20mA Step-Up DC/DC Converter |
| 修订版 | S |
| 文件格式/大小 | PDF / 302 Kb |
| 文件语言 | 英语 |
TYPICAL APPLICATIONS. Li-Ion to 16V/20mA Step-Up DC/DC Converter
该数据表的模型线
文件文字版本

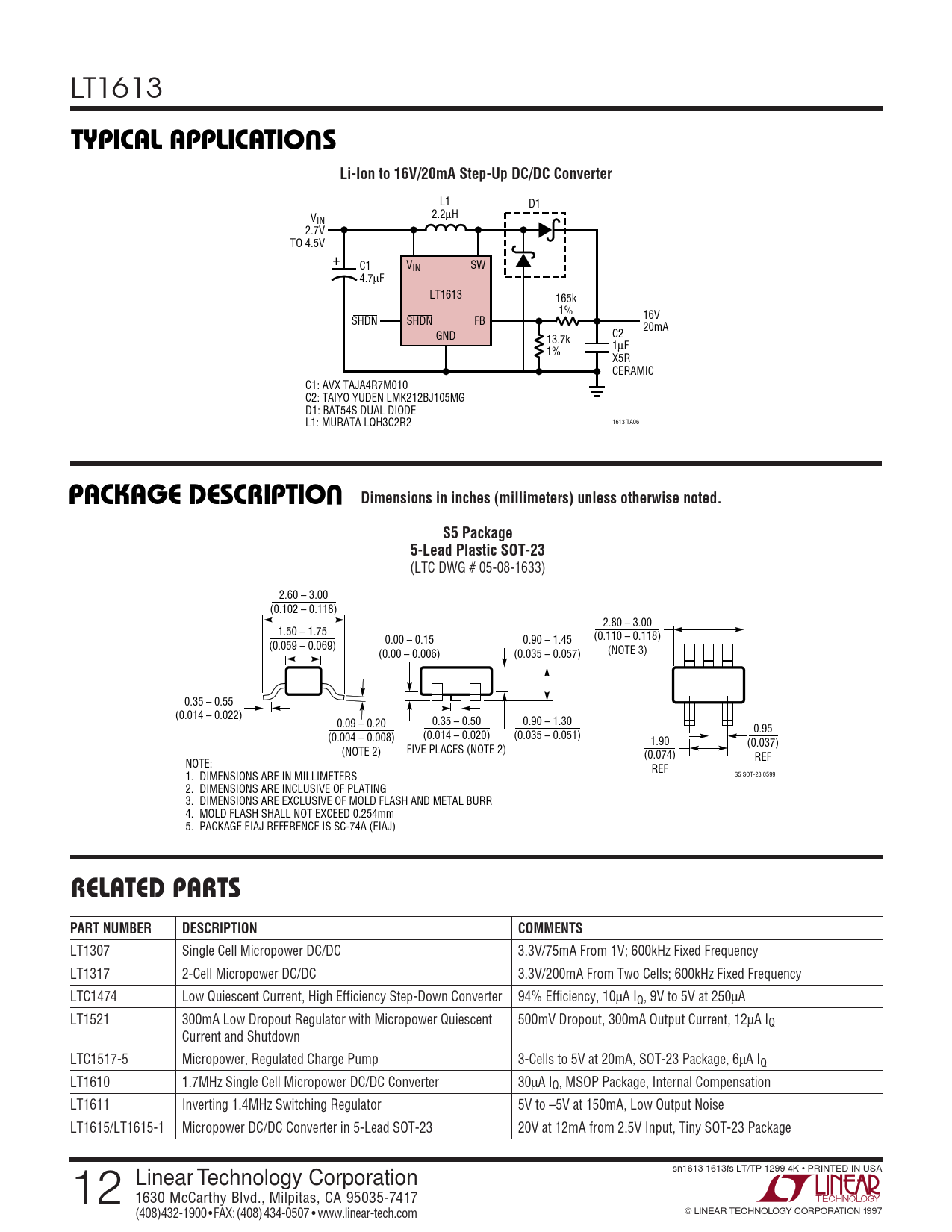

LT1613
U TYPICAL APPLICATIONS Li-Ion to 16V/20mA Step-Up DC/DC Converter
L1 D1 2.2µH VIN 2.7V TO 4.5V + C1 VIN SW 4.7µF LT1613 165k 1% 16V SHDN SHDN FB 20mA GND C2 13.7k 1µF 1% X5R CERAMIC C1: AVX TAJA4R7M010 C2: TAIYO YUDEN LMK212BJ105MG D1: BAT54S DUAL DIODE 1613 TA06 L1: MURATA LQH3C2R2
U PACKAGE DESCRIPTION Dimensions in inches (millimeters) unless otherwise noted. S5 Package 5-Lead Plastic SOT-23
(LTC DWG # 05-08-1633) 2.60 – 3.00 (0.102 – 0.118) 2.80 – 3.00 1.50 – 1.75 0.00 – 0.15 0.90 – 1.45 (0.110 – 0.118) (0.059 – 0.069) (0.00 – 0.006) (0.035 – 0.057) (NOTE 3) 0.35 – 0.55 (0.014 – 0.022) 0.35 – 0.50 0.90 – 1.30 0.09 – 0.20 0.95 (0.014 – 0.020) (0.035 – 0.051) (0.004 – 0.008) 1.90 (0.037) FIVE PLACES (NOTE 2) (NOTE 2) (0.074) REF NOTE: REF S5 SOT-23 0599 1. DIMENSIONS ARE IN MILLIMETERS 2. DIMENSIONS ARE INCLUSIVE OF PLATING 3. DIMENSIONS ARE EXCLUSIVE OF MOLD FLASH AND METAL BURR 4. MOLD FLASH SHALL NOT EXCEED 0.254mm 5. PACKAGE EIAJ REFERENCE IS SC-74A (EIAJ)
RELATED PARTS PART NUMBER DESCRIPTION COMMENTS
LT1307 Single Cell Micropower DC/DC 3.3V/75mA From 1V; 600kHz Fixed Frequency LT1317 2-Cell Micropower DC/DC 3.3V/200mA From Two Cells; 600kHz Fixed Frequency LTC1474 Low Quiescent Current, High Efficiency Step-Down Converter 94% Efficiency, 10µA IQ, 9V to 5V at 250µA LT1521 300mA Low Dropout Regulator with Micropower Quiescent 500mV Dropout, 300mA Output Current, 12µA IQ Current and Shutdown LTC1517-5 Micropower, Regulated Charge Pump 3-Cells to 5V at 20mA, SOT-23 Package, 6µA IQ LT1610 1.7MHz Single Cell Micropower DC/DC Converter 30µA IQ, MSOP Package, Internal Compensation LT1611 Inverting 1.4MHz Switching Regulator 5V to –5V at 150mA, Low Output Noise LT1615/LT1615-1 Micropower DC/DC Converter in 5-Lead SOT-23 20V at 12mA from 2.5V Input, Tiny SOT-23 Package sn1613 1613fs LT/TP 1299 4K • PRINTED IN USA 12 Linear Technology Corporation 1630 McCarthy Blvd., Milpitas, CA 95035-7417 LINEAR TECHNOLOGY CORPORATION 1997 (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear-tech.com
