Datasheet LT1764A (Analog Devices) - 18
| 制造商 | Analog Devices |
| 描述 | 3A, Fast Transient Response, Low Noise, LDO Regulators |
| 页数 / 页 | 20 / 18 — TYPICAL APPLICATIO S. Adjustable Current Source. PACKAGE DESCRIPTION. Q … |
| 文件格式/大小 | PDF / 648 Kb |
| 文件语言 | 英语 |
TYPICAL APPLICATIO S. Adjustable Current Source. PACKAGE DESCRIPTION. Q Package. 5-Lead Plastic DD Pak
该数据表的模型线
- LT1764AEFE#PBF LT1764AEFE#PBF LT1764AEFE#TRPBF LT1764AEFE#TRPBF LT1764AEFE-1.5#PBF LT1764AEFE-1.5#PBF LT1764AEFE-1.5#TRPBF LT1764AEFE-1.5#TRPBF LT1764AEFE-1.8#PBF LT1764AEFE-1.8#PBF LT1764AEFE-1.8#TRPBF LT1764AEFE-1.8#TRPBF LT1764AEFE-2.5#PBF LT1764AEFE-2.5#PBF LT1764AEFE-2.5#TRPBF LT1764AEFE-2.5#TRPBF LT1764AEFE-3.3#PBF LT1764AEFE-3.3#PBF LT1764AEFE-3.3#TRPBF LT1764AEFE-3.3#TRPBF LT1764AEQ#PBF LT1764AEQ#PBF LT1764AEQ#TRPBF LT1764AEQ#TRPBF LT1764AEQ-1.5#PBF LT1764AEQ-1.5#PBF LT1764AEQ-1.5#TRPBF LT1764AEQ-1.5#TRPBF LT1764AEQ-1.8#PBF LT1764AEQ-1.8#PBF LT1764AEQ-1.8#TRPBF LT1764AEQ-1.8#TRPBF LT1764AEQ-2.5#PBF LT1764AEQ-2.5#PBF LT1764AEQ-2.5#TRPBF LT1764AEQ-2.5#TRPBF LT1764AEQ-3.3#PBF LT1764AEQ-3.3#PBF LT1764AEQ-3.3#TRPBF LT1764AEQ-3.3#TRPBF LT1764AET#06PBF LT1764AET#06PBF LT1764AET#30PBF LT1764AET#30PBF LT1764AET#31PBF LT1764AET#31PBF LT1764AET#PBF LT1764AET#PBF LT1764AET-1.5#PBF LT1764AET-1.5#PBF LT1764AET-1.8#30PBF LT1764AET-1.8#30PBF LT1764AET-1.8#PBF LT1764AET-1.8#PBF LT1764AET-2.5#06PBF LT1764AET-2.5#06PBF LT1764AET-2.5#PBF LT1764AET-2.5#PBF LT1764AET-3.3#06PBF LT1764AET-3.3#06PBF LT1764AET-3.3#PBF LT1764AET-3.3#PBF LT1764AMPQ LT1764AMPQ#PBF LT1764AMPQ#PBF LT1764AMPQ#TR LT1764AMPQ#TRPBF LT1764AMPQ#TRPBF
文件文字版本
LT1764A Series

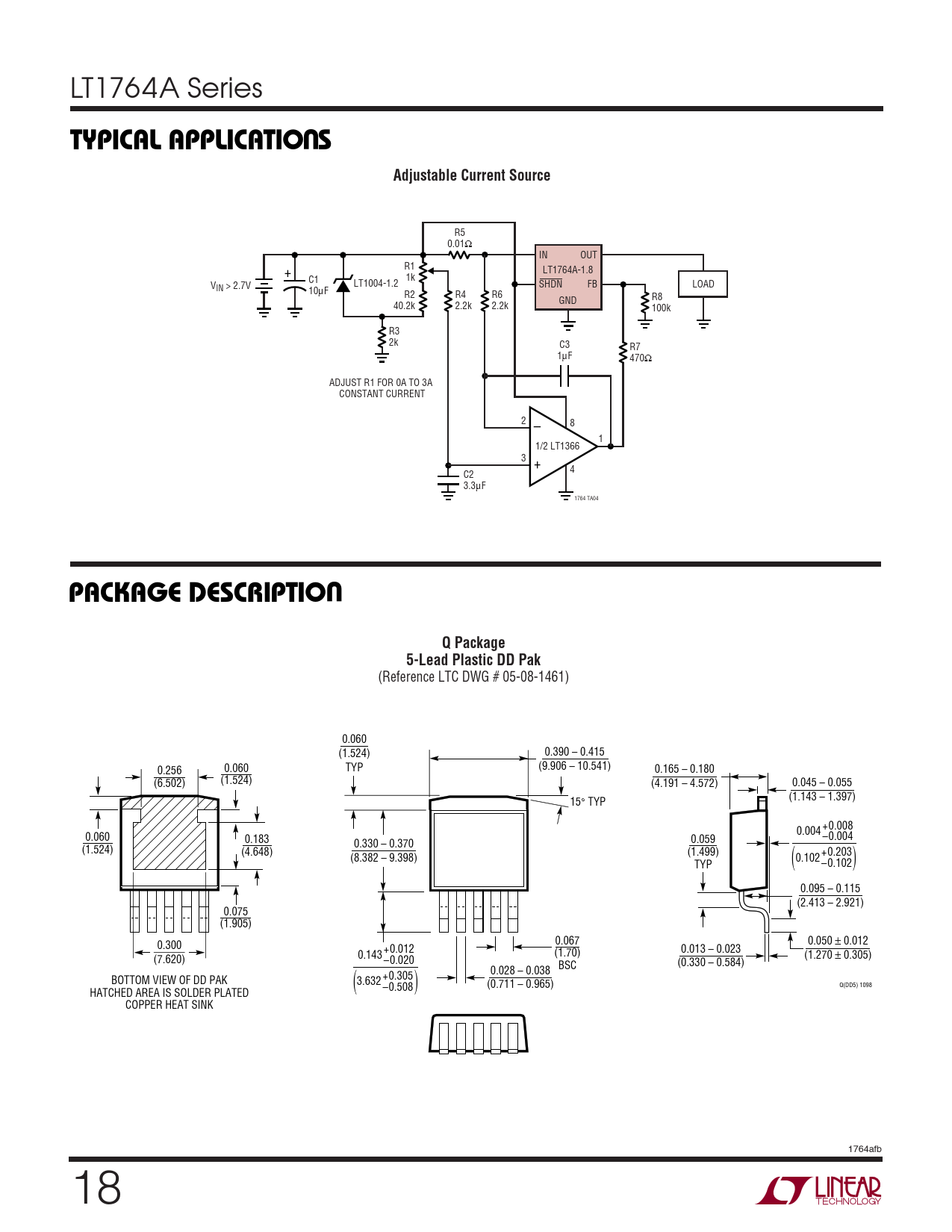

U TYPICAL APPLICATIO S Adjustable Current Source
R5 0.01Ω IN OUT R1 LT1764A-1.8 + 1k C1 V SHDN FB IN > 2.7V LT1004-1.2 LOAD 10µF R2 R4 R6 GND R8 40.2k 2.2k 2.2k 100k R3 2k C3 R7 1µF 470Ω ADJUST R1 FOR 0A TO 3A CONSTANT CURRENT 2 – 8 1 1/2 LT1366 3 + 4 C2 3.3µF 1764 TA04
U PACKAGE DESCRIPTION Q Package 5-Lead Plastic DD Pak
(Reference LTC DWG # 05-08-1461) 0.060 (1.524) 0.390 – 0.415 0.060 TYP (9.906 – 10.541) 0.256 0.165 – 0.180 (1.524) (6.502) (4.191 – 4.572) 0.045 – 0.055 (1.143 – 1.397) 15° TYP +0.008 0.004 0.060 –0.004 0.183 0.059 0.330 – 0.370 (1.524) (4.648) (1.499) (8.382 – 9.398) TYP ( +0.203 0.102 –0.102) 0.095 – 0.115 (2.413 – 2.921) 0.075 (1.905) 0.067 0.050 ± 0.012 0.300 +0.012 0.013 – 0.023 0.143 (1.70) (1.270 ± 0.305) (7.620) –0.020 (0.330 – 0.584) 0.028 – 0.038 BOTTOM VIEW OF DD PAK HATCHED AREA IS SOLDER PLATED ( BSC +0.305 3.632 –0.508) (0.711 – 0.965) Q(DD5) 1098 COPPER HEAT SINK 1764afb 18
