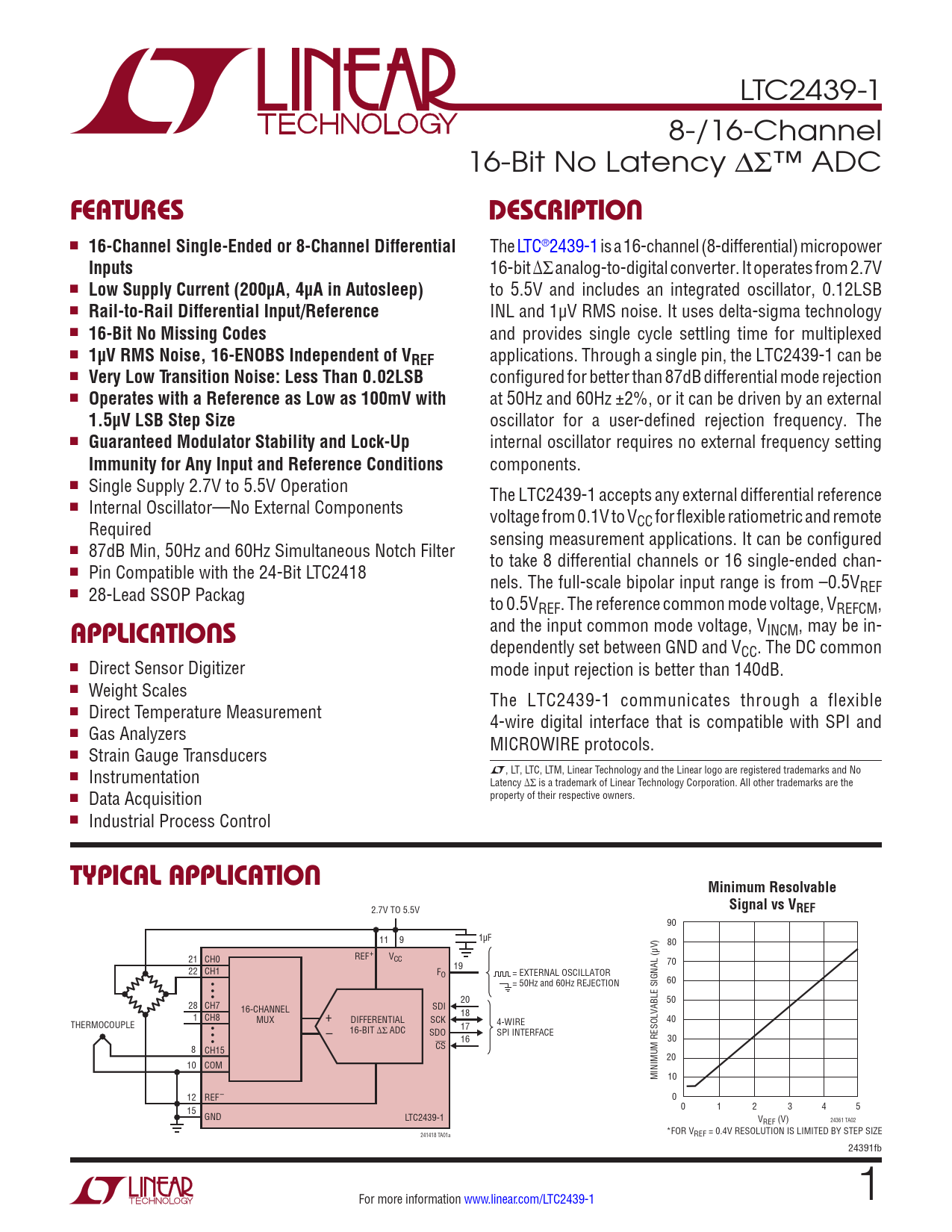

LTC2439-1 8-/16-Channel 16-Bit No Latency ∆Σ™ ADC
FEATURES DESCRIPTION
n
16-Channel Single-Ended or 8-Channel Differential
The LTC®2439-1 is a 16-channel (8-differential) micropower
Inputs
16-bit ∆Σ analog-to-digital converter. It operates from 2.7V n
Low Supply Current (200µA, 4µA in Autosleep)
to 5.5V and includes an integrated oscillator, 0.12LSB n
Rail-to-Rail Differential Input/Reference
INL and 1µV RMS noise. It uses delta-sigma technology n
16-Bit No Missing Codes
and provides single cycle settling time for multiplexed n
1µV RMS Noise, 16-ENOBS Independent of VREF
applications. Through a single pin, the LTC2439-1 can be n
Very Low Transition Noise: Less Than 0.02LSB
configured for better than 87dB differential mode rejection n
Operates with a Reference as Low as 100mV with
at 50Hz and 60Hz ±2%, or it can be driven by an external
1.5µV LSB Step Size
oscillator for a user-defined rejection frequency. The n
Guaranteed Modulator Stability and Lock-Up
internal oscillator requires no external frequency setting
Immunity for Any Input and Reference Conditions
components. n Single Supply 2.7V to 5.5V Operation The LTC2439-1 accepts any external differential reference n Internal Oscillator—No External Components voltage from 0.1V to VCC for flexible ratiometric and remote Required sensing measurement applications. It can be configured n 87dB Min, 50Hz and 60Hz Simultaneous Notch Filter to take 8 differential channels or 16 single-ended chan- n Pin Compatible with the 24-Bit LTC2418 nels. The full-scale bipolar input range is from –0.5VREF n 28-Lead SSOP Packag to 0.5VREF. The reference common mode voltage, VREFCM, and the input common mode voltage, VINCM, may be in-
APPLICATIONS
dependently set between GND and VCC. The DC common n Direct Sensor Digitizer mode input rejection is better than 140dB. n Weight Scales The LTC2439-1 communicates through a flexible n Direct Temperature Measurement 4-wire digital interface that is compatible with SPI and n Gas Analyzers MICROWIRE protocols. n Strain Gauge Transducers L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and No n Instrumentation Latency ∆Σ is a trademark of Linear Technology Corporation. All other trademarks are the n Data Acquisition property of their respective owners. n Industrial Process Control
