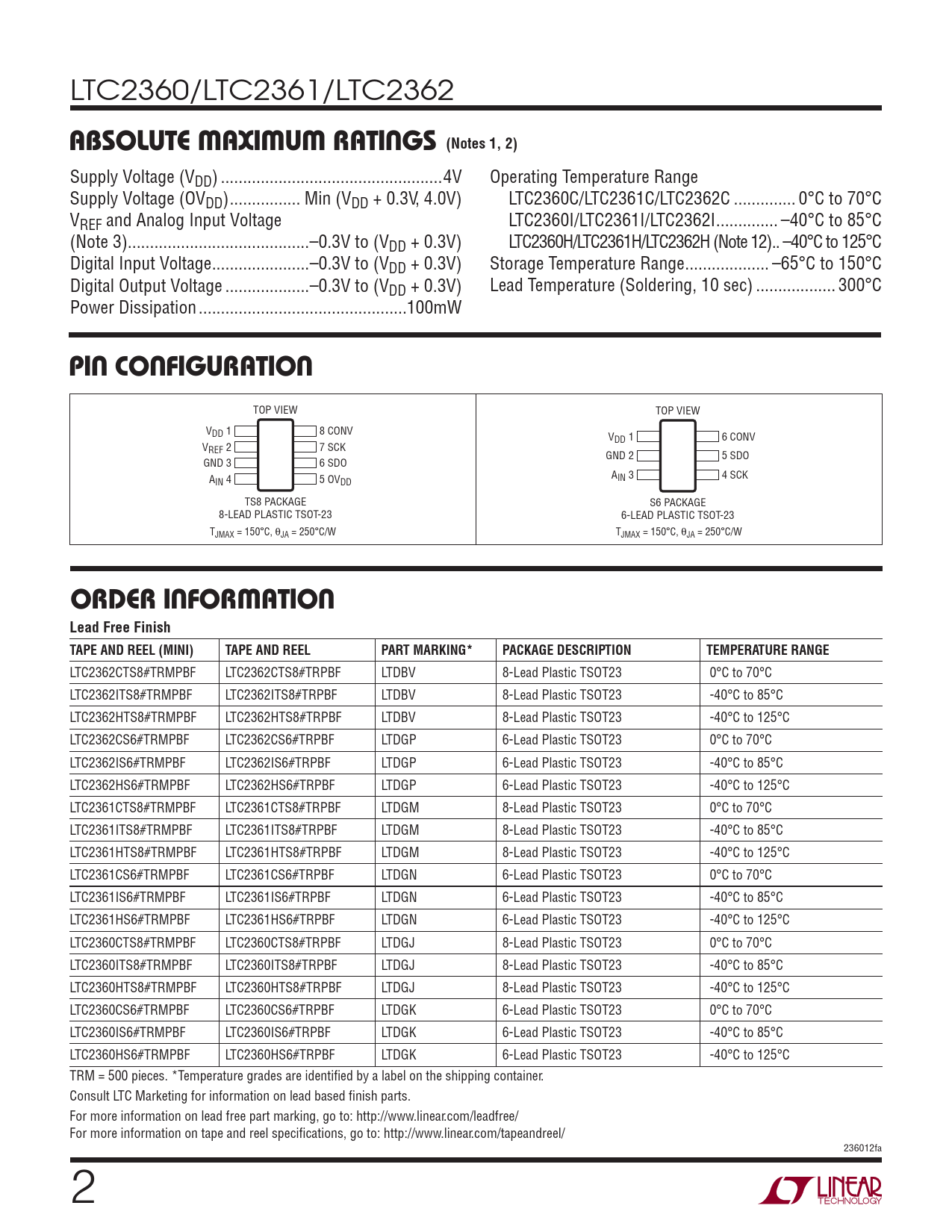

LTC2360/LTC2361/LTC2362
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Supply Voltage (VDD) ..4V Operating Temperature Range Supply Voltage (OVDD) .. Min (VDD + 0.3V, 4.0V) LTC2360C/LTC2361C/LTC2362C .. 0°C to 70°C VREF and Analog Input Voltage LTC2360I/LTC2361I/LTC2362I .. –40°C to 85°C (Note 3) ...–0.3V to (VDD + 0.3V) LTC2360H/LTC2361H/LTC2362H (Note 12) .. –40°C to 125°C Digital Input Voltage ..–0.3V to (VDD + 0.3V) Storage Temperature Range ... –65°C to 150°C Digital Output Voltage ...–0.3V to (VDD + 0.3V) Lead Temperature (Soldering, 10 sec) .. 300°C Power Dissipation ...100mW
PIN CONFIGURATION
TOP VIEW TOP VIEW VDD 1 8 CONV VDD 1 6 CONV VREF 2 7 SCK GND 2 5 SDO GND 3 6 SDO A A 4 SCK IN 4 5 OVDD IN 3 TS8 PACKAGE S6 PACKAGE 8-LEAD PLASTIC TSOT-23 6-LEAD PLASTIC TSOT-23 TJMAX = 150°C, θJA = 250°C/W TJMAX = 150°C, θJA = 250°C/W
ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2362CTS8#TRMPBF LTC2362CTS8#TRPBF LTDBV 8-Lead Plastic TSOT23 0°C to 70°C LTC2362ITS8#TRMPBF LTC2362ITS8#TRPBF LTDBV 8-Lead Plastic TSOT23 -40°C to 85°C LTC2362HTS8#TRMPBF LTC2362HTS8#TRPBF LTDBV 8-Lead Plastic TSOT23 -40°C to 125°C LTC2362CS6#TRMPBF LTC2362CS6#TRPBF LTDGP 6-Lead Plastic TSOT23 0°C to 70°C LTC2362IS6#TRMPBF LTC2362IS6#TRPBF LTDGP 6-Lead Plastic TSOT23 -40°C to 85°C LTC2362HS6#TRMPBF LTC2362HS6#TRPBF LTDGP 6-Lead Plastic TSOT23 -40°C to 125°C LTC2361CTS8#TRMPBF LTC2361CTS8#TRPBF LTDGM 8-Lead Plastic TSOT23 0°C to 70°C LTC2361ITS8#TRMPBF LTC2361ITS8#TRPBF LTDGM 8-Lead Plastic TSOT23 -40°C to 85°C LTC2361HTS8#TRMPBF LTC2361HTS8#TRPBF LTDGM 8-Lead Plastic TSOT23 -40°C to 125°C LTC2361CS6#TRMPBF LTC2361CS6#TRPBF LTDGN 6-Lead Plastic TSOT23 0°C to 70°C LTC2361IS6#TRMPBF LTC2361IS6#TRPBF LTDGN 6-Lead Plastic TSOT23 -40°C to 85°C LTC2361HS6#TRMPBF LTC2361HS6#TRPBF LTDGN 6-Lead Plastic TSOT23 -40°C to 125°C LTC2360CTS8#TRMPBF LTC2360CTS8#TRPBF LTDGJ 8-Lead Plastic TSOT23 0°C to 70°C LTC2360ITS8#TRMPBF LTC2360ITS8#TRPBF LTDGJ 8-Lead Plastic TSOT23 -40°C to 85°C LTC2360HTS8#TRMPBF LTC2360HTS8#TRPBF LTDGJ 8-Lead Plastic TSOT23 -40°C to 125°C LTC2360CS6#TRMPBF LTC2360CS6#TRPBF LTDGK 6-Lead Plastic TSOT23 0°C to 70°C LTC2360IS6#TRMPBF LTC2360IS6#TRPBF LTDGK 6-Lead Plastic TSOT23 -40°C to 85°C LTC2360HS6#TRMPBF LTC2360HS6#TRPBF LTDGK 6-Lead Plastic TSOT23 -40°C to 125°C TRM = 500 pieces. *Temperature grades are identifi ed by a label on the shipping container. Consult LTC Marketing for information on lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 236012fa 2
