Precision, Very Low Noise, Low Input Bias Current,. Wide Bandwidth JFET Operational Amplifiers. Date Sheet. AD8510/. AD8512/

Datasheet AD8510, AD8512, AD8513 Analog Devices, 修订版: K

该数据表的模型线

文件文字版本

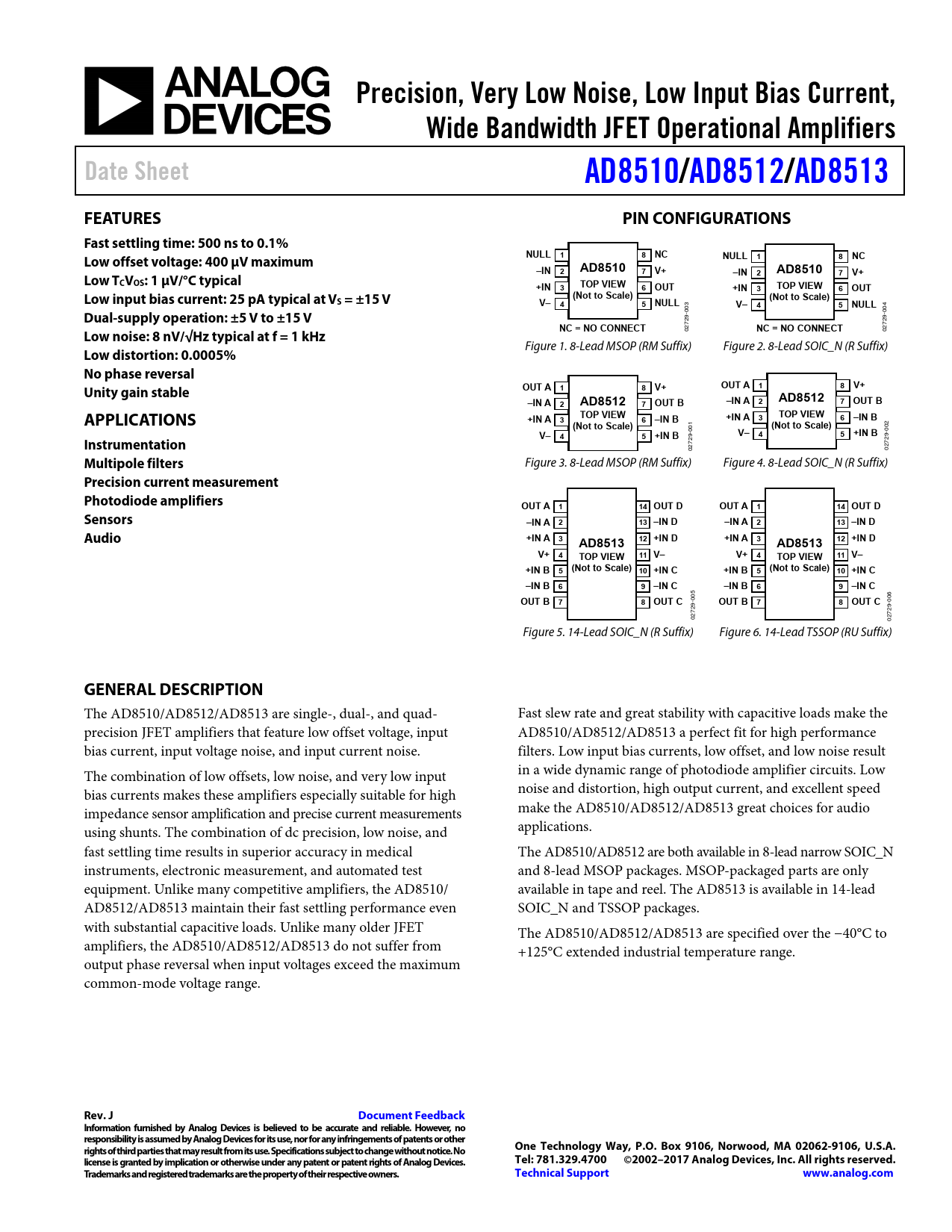

Precision, Very Low Noise, Low Input Bias Current, Wide Bandwidth JFET Operational Amplifiers Date Sheet AD8510/ AD8512/ AD8513 FEATURES PIN CONFIGURATIONS Fast settling time: 500 ns to 0.1% NULL 1 8 NC NULL 1 8 NC Low offset voltage: 400 μV maximum –IN 2 AD8510 7 V+ –IN 2 AD8510 7 V+ Low TCVOS: 1 μV/°C typical TOP VIEW +IN 3 6 OUT TOP VIEW +IN 3 6 OUT Low input bias current: 25 pA typical at V (Not to Scale) (Not to Scale) S = ±15 V V– 4 5 NULL V– 4 5 NULL
4 03 0 -00
Dual-supply operation: ±5 V to ±15 V
9- 9 72 72
NC = NO CONNECT
02
NC = NO CONNECT
02
Low noise: 8 nV/√Hz typical at f = 1 kHz
Figure 1. 8-Lead MSOP (RM Suffix) Figure 2. 8-Lead SOIC_N (R Suffix)
Low distortion: 0.0005% No phase reversal OUT A 1 8 V+ OUT A 1 8 V+ Unity gain stable –IN A 2 AD8512 –IN A 2 AD8512 7 OUT B 7 OUT B APPLICATIONS +IN A TOP VIEW TOP VIEW 3 6 –IN B +IN A 3 6 –IN B (Not to Scale)
2 01
(Not to Scale)
00
V– 4 5 +IN B
-0
V– 4 5 +IN B
29-
Instrumentation
729 2 27 0 0
Multipole filters
Figure 3. 8-Lead MSOP (RM Suffix) Figure 4. 8-Lead SOIC_N (R Suffix)
Precision current measurement Photodiode amplifiers OUT A 1 14 OUT D OUT A 1 14 OUT D Sensors –IN A 2 13 –IN D –IN A 2 13 –IN D Audio +IN A 3 AD8513 12 +IN D +IN A 3 AD8513 12 +IN D V+ 4 TOP VIEW 11 V– V+ 4 TOP VIEW 11 V– (Not to Scale) +IN B 5 10 +IN C (Not to Scale) +IN B 5 10 +IN C –IN B 6 9 –IN C –IN B 6 9 –IN C
05 6
OUT B 7 8 OUT C
-0
OUT B 7 8 OUT C
00 29 29- 027 27 0 Figure 5. 14-Lead SOIC_N (R Suffix) Figure 6. 14-Lead TSSOP (RU Suffix)
GENERAL DESCRIPTION
The AD8510/AD8512/AD8513 are single-, dual-, and quad- Fast slew rate and great stability with capacitive loads make the precision JFET amplifiers that feature low offset voltage, input AD8510/AD8512/AD8513 a perfect fit for high performance bias current, input voltage noise, and input current noise. filters. Low input bias currents, low offset, and low noise result The combination of low offsets, low noise, and very low input in a wide dynamic range of photodiode amplifier circuits. Low bias currents makes these amplifiers especially suitable for high noise and distortion, high output current, and excellent speed impedance sensor amplification and precise current measurements make the AD8510/AD8512/AD8513 great choices for audio using shunts. The combination of dc precision, low noise, and applications. fast settling time results in superior accuracy in medical The AD8510/AD8512 are both available in 8-lead narrow SOIC_N instruments, electronic measurement, and automated test and 8-lead MSOP packages. MSOP-packaged parts are only equipment. Unlike many competitive amplifiers, the AD8510/ available in tape and reel. The AD8513 is available in 14-lead AD8512/AD8513 maintain their fast settling performance even SOIC_N and TSSOP packages. with substantial capacitive loads. Unlike many older JFET The AD8510/AD8512/AD8513 are specified over the −40°C to amplifiers, the AD8510/AD8512/AD8513 do not suffer from +125°C extended industrial temperature range. output phase reversal when input voltages exceed the maximum common-mode voltage range.
Rev. J Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2002–2017 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Applications Pin Configurations General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings ESD Caution Typical Performance Characteristics General Application Information Input Overvoltage Protection Output Phase Reversal Total Harmonic Distortion (THD) + Noise Total Noise Including Source Resistors Settling Time Overload Recovery Time Capacitive Load Drive Open-Loop Gain and Phase Response Precision Rectifiers I-V Conversion Applications Photodiode Circuits Signal Transmission Applications Crosstalk Outline Dimensions Ordering Guide
