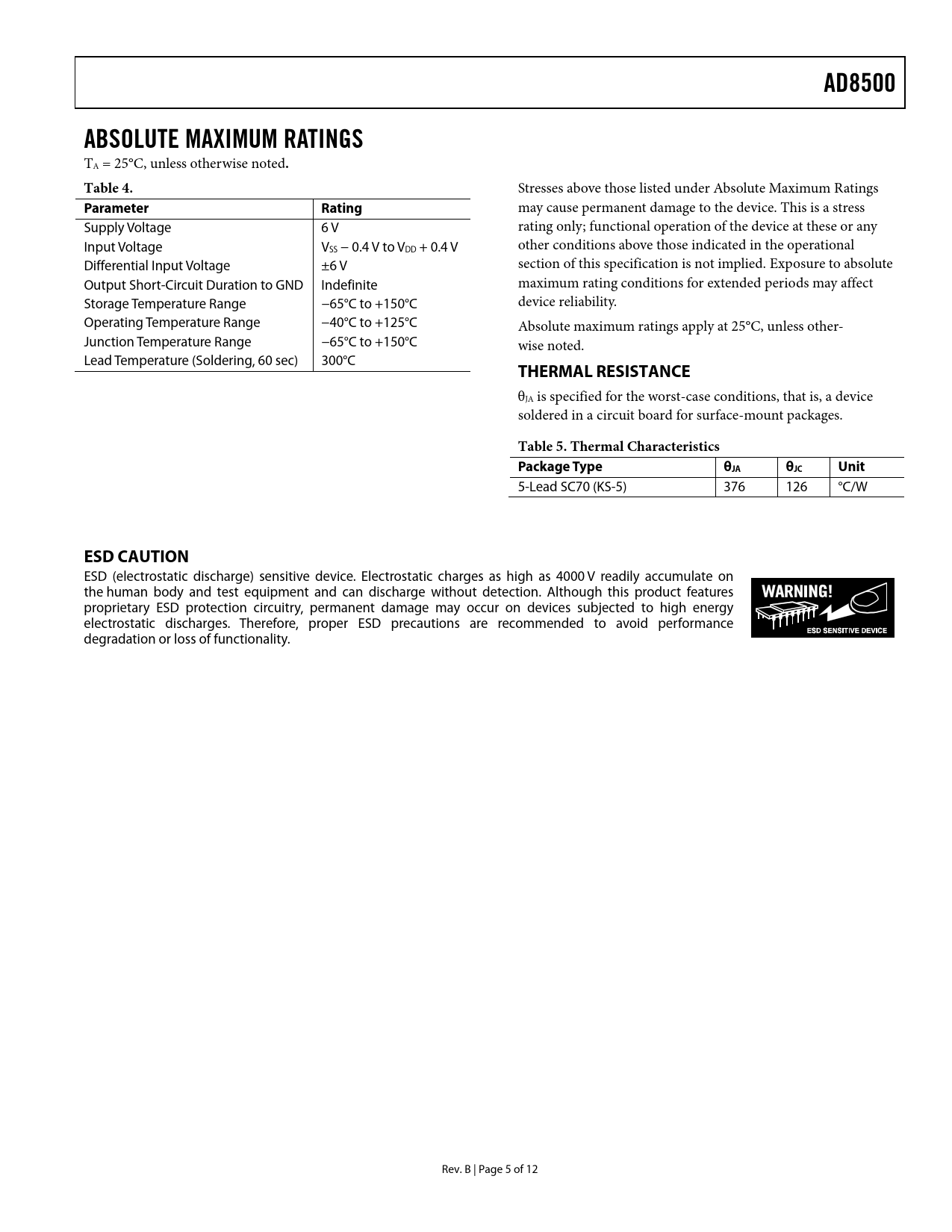

AD8500 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted
. Table 4.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage 6 V rating only; functional operation of the device at these or any Input Voltage V other conditions above those indicated in the operational SS − 0.4 V to VDD + 0.4 V Differential Input Voltage ±6 V section of this specification is not implied. Exposure to absolute Output Short-Circuit Duration to GND Indefinite maximum rating conditions for extended periods may affect Storage Temperature Range −65°C to +150°C device reliability. Operating Temperature Range −40°C to +125°C Absolute maximum ratings apply at 25°C, unless other- Junction Temperature Range −65°C to +150°C wise noted. Lead Temperature (Soldering, 60 sec) 300°C
THERMAL RESISTANCE
θJA is specified for the worst-case conditions, that is, a device soldered in a circuit board for surface-mount packages.
Table 5. Thermal Characteristics Package Type θJA θJC Unit
5-Lead SC70 (KS-5) 376 126 °C/W
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. B | Page 5 of 12 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
