Datasheet AD8646, AD8647, AD8648 (Analog Devices) - 6
| 制造商 | Analog Devices |
| 描述 | 24 MHz Rail-to-Rail Dual Amplifier with Low Power Shutdown function |
| 页数 / 页 | 18 / 6 — AD8646/AD8647/AD8648. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. … |
| 修订版 | F |
| 文件格式/大小 | PDF / 519 Kb |
| 文件语言 | 英语 |

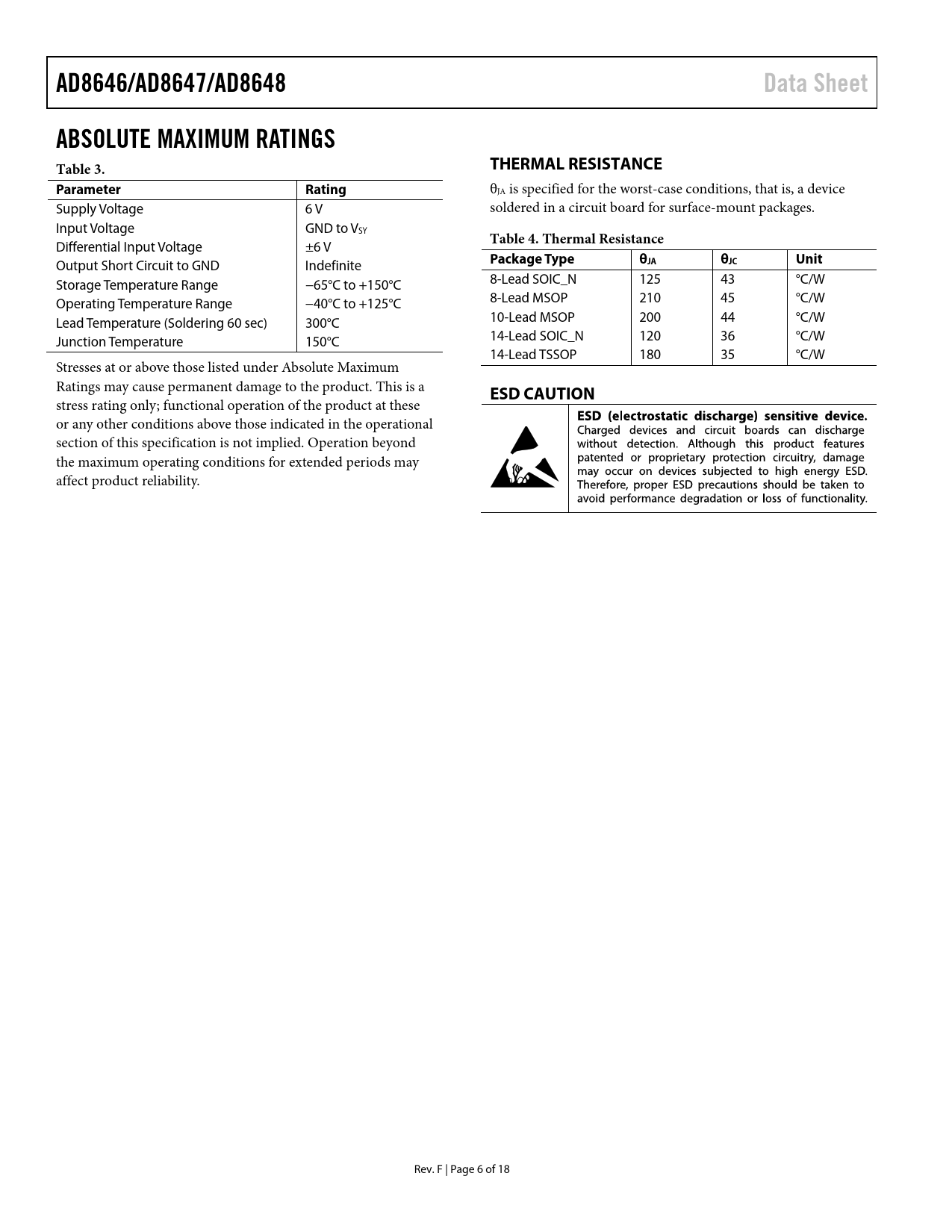

AD8646/AD8647/AD8648. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE. Parameter. Rating
该数据表的模型线
文件文字版本
AD8646/AD8647/AD8648 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Supply Voltage 6 V soldered in a circuit board for surface-mount packages. Input Voltage GND to VSY Differential Input Voltage ±6 V
Table 4. Thermal Resistance
Output Short Circuit to GND Indefinite
Package Type θJA θJC Unit
Storage Temperature Range −65°C to +150°C 8-Lead SOIC_N 125 43 °C/W Operating Temperature Range −40°C to +125°C 8-Lead MSOP 210 45 °C/W Lead Temperature (Soldering 60 sec) 300°C 10-Lead MSOP 200 44 °C/W Junction Temperature 150°C 14-Lead SOIC_N 120 36 °C/W 14-Lead TSSOP 180 35 °C/W Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
