Micropower RRIO Operational Amplifier. ADA4092-4. FEATURES. PIN CONFIGURATION. Single-supply operation: 3 V to 30 V. OUTA. 14 OUTD

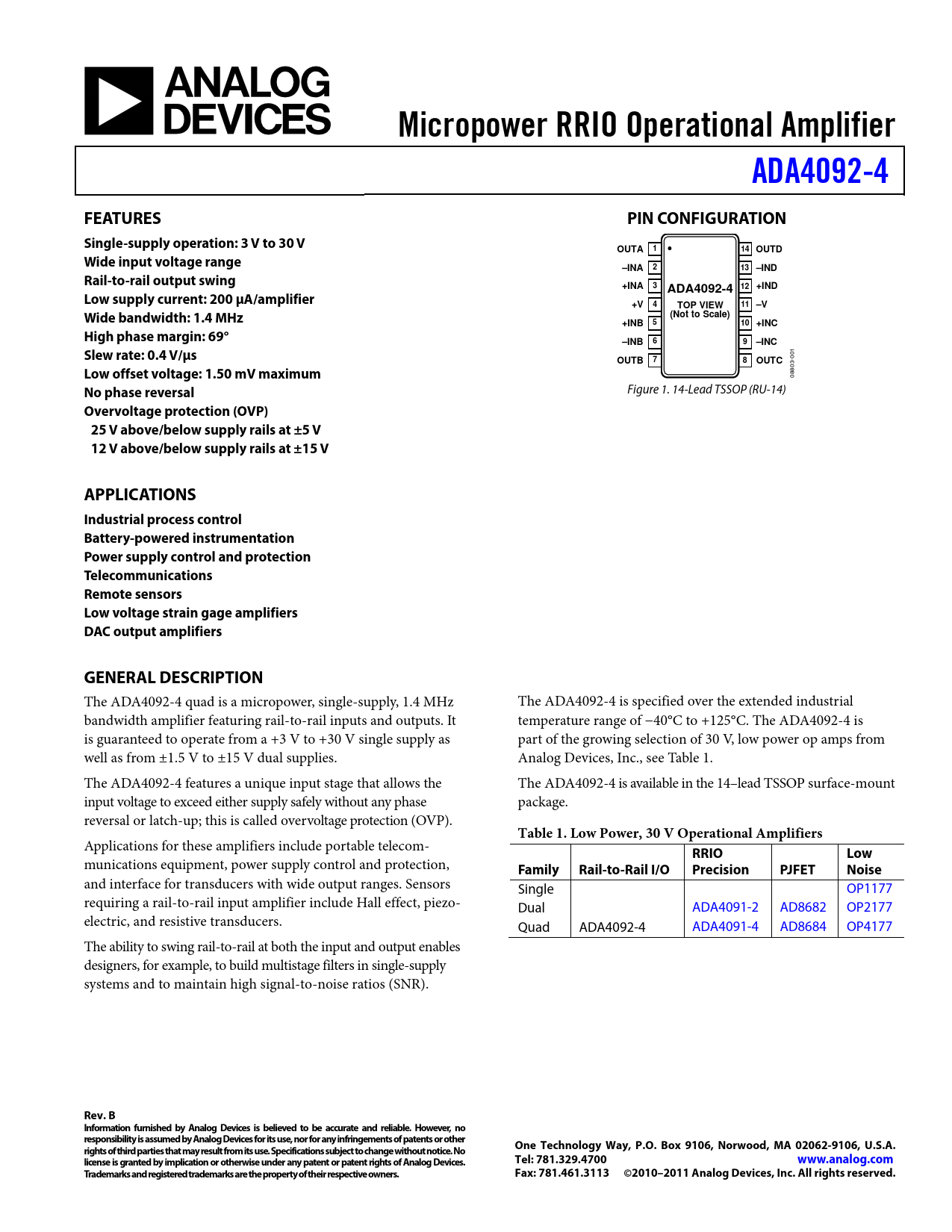

Datasheet ADA4092-4 Analog Devices, 修订版: B

文件文字版本

link to page 1
Micropower RRIO Operational Amplifier ADA4092-4 FEATURES PIN CONFIGURATION Single-supply operation: 3 V to 30 V OUTA 1 14 OUTD Wide input voltage range –INA 2 13 –IND Rail-to-rail output swing +INA 3 ADA4092-4 12 +IND Low supply current: 200 μA/amplifier +V 4 TOP VIEW 11 –V Wide bandwidth: 1.4 MHz (Not to Scale) +INB 5 10 +INC High phase margin: 69° –INB 6 9 –INC
1
Slew rate: 0.4 V/μs
-00
OUTB 7 8 OUTC Low offset voltage: 1.50 mV maximum
803 08
No phase reversal
Figure 1. 14-Lead TSSOP (RU-14)
Overvoltage protection (OVP) 25 V above/below supply rails at ±5 V 12 V above/below supply rails at ±15 V APPLICATIONS Industrial process control Battery-powered instrumentation Power supply control and protection Telecommunications Remote sensors Low voltage strain gage amplifiers DAC output amplifiers GENERAL DESCRIPTION
The ADA4092-4 quad is a micropower, single-supply, 1.4 MHz The ADA4092-4 is specified over the extended industrial bandwidth amplifier featuring rail-to-rail inputs and outputs. It temperature range of −40°C to +125°C. The ADA4092-4 is is guaranteed to operate from a +3 V to +30 V single supply as part of the growing selection of 30 V, low power op amps from well as from ±1.5 V to ±15 V dual supplies. Analog Devices, Inc., see Table 1. The ADA4092-4 features a unique input stage that allows the The ADA4092-4 is available in the 14–lead TSSOP surface-mount input voltage to exceed either supply safely without any phase package. reversal or latch-up; this is called overvoltage protection (OVP).
Table 1. Low Power, 30 V Operational Amplifiers
Applications for these amplifiers include portable telecom-
RRIO Low
munications equipment, power supply control and protection,
Family Rail-to-Rail I/O Precision PJFET Noise
and interface for transducers with wide output ranges. Sensors Single OP1177 requiring a rail-to-rail input amplifier include Hall effect, piezo- Dual ADA4091-2 AD8682 OP2177 electric, and resistive transducers. Quad ADA4092-4 ADA4091-4 AD8684 OP4177 The ability to swing rail-to-rail at both the input and output enables designers, for example, to build multistage filters in single-supply systems and to maintain high signal-to-noise ratios (SNR).
Rev. B Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2010–2011 Analog Devices, Inc. All rights reserved.
