Datasheet LF253, LF353 (STMicroelectronics) - 3

制造商STMicroelectronics
描述Wide bandwidth dual JFET operational amplifiers
页数 / 页15 / 3 — LF253, LF353. Absolute maximum ratings and operating conditions. Table 1. …
修订版3.1
文件格式/大小PDF / 925 Kb
文件语言英语

LF253, LF353. Absolute maximum ratings and operating conditions. Table 1. Absolute maximum ratings. Symbol. Parameter. Value. Unit

LF253, LF353 Absolute maximum ratings and operating conditions Table 1 Absolute maximum ratings Symbol Parameter Value Unit

文件文字版本

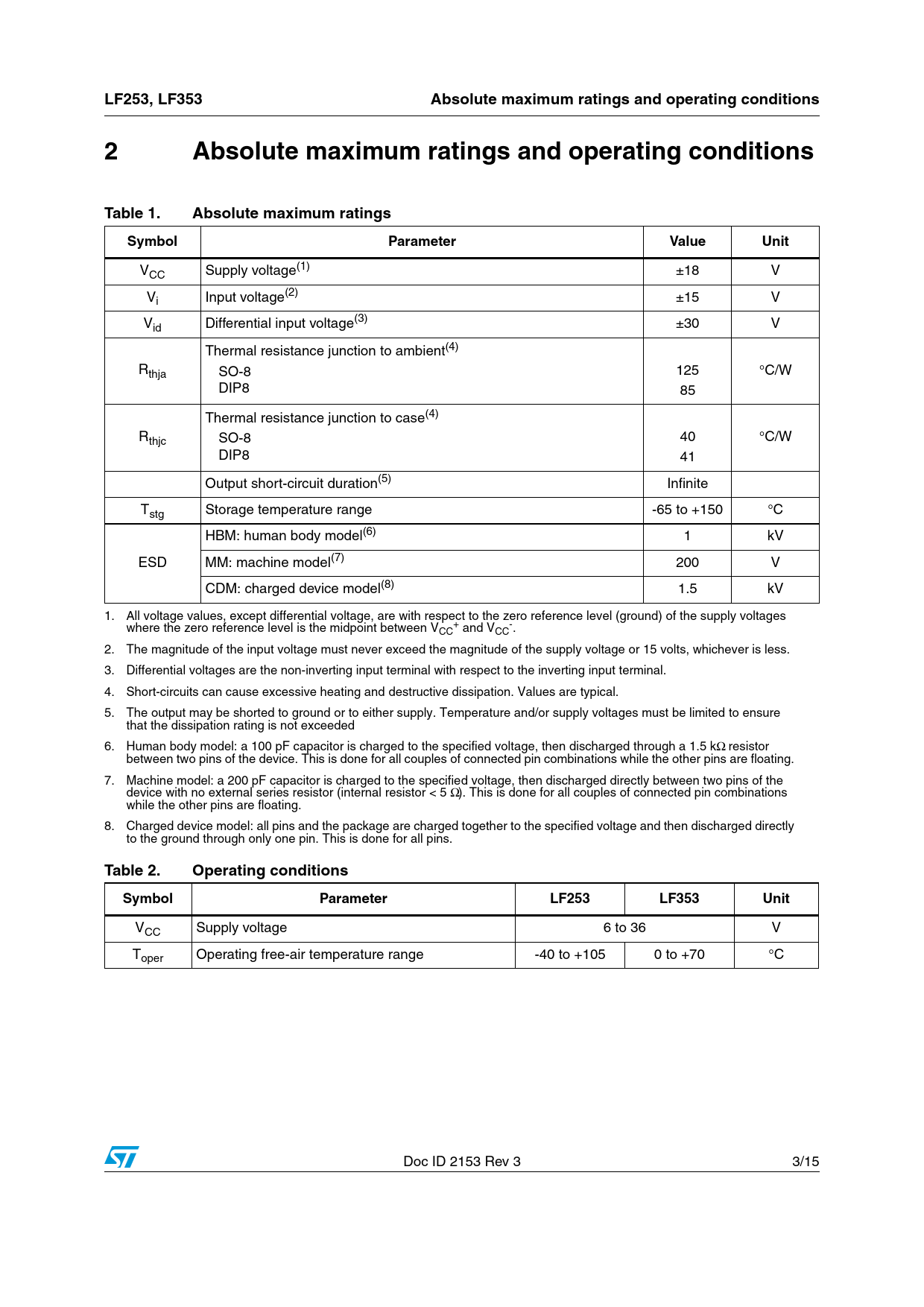

LF253, LF353 Absolute maximum ratings and operating conditions 2 Absolute maximum ratings and operating conditions Table 1. Absolute maximum ratings Symbol Parameter Value Unit
VCC Supply voltage(1) ±18 V Vi Input voltage(2) ±15 V Vid Differential input voltage(3) ±30 V Thermal resistance junction to ambient(4) Rthja SO-8 125 °C/W DIP8 85 Thermal resistance junction to case(4) Rthjc SO-8 40 °C/W DIP8 41 Output short-circuit duration(5) Infinite Tstg Storage temperature range -65 to +150 °C HBM: human body model(6) 1 kV ESD MM: machine model(7) 200 V CDM: charged device model(8) 1.5 kV 1. All voltage values, except differential voltage, are with respect to the zero reference level (ground) of the supply voltages where the zero reference level is the midpoint between V + - CC and VCC . 2. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 volts, whichever is less. 3. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal. 4. Short-circuits can cause excessive heating and destructive dissipation. Values are typical. 5. The output may be shorted to ground or to either supply. Temperature and/or supply voltages must be limited to ensure that the dissipation rating is not exceeded 6. Human body model: a 100 pF capacitor is charged to the specified voltage, then discharged through a 1.5 kΩ resistor between two pins of the device. This is done for all couples of connected pin combinations while the other pins are floating. 7. Machine model: a 200 pF capacitor is charged to the specified voltage, then discharged directly between two pins of the device with no external series resistor (internal resistor < 5 Ω). This is done for all couples of connected pin combinations while the other pins are floating. 8. Charged device model: all pins and the package are charged together to the specified voltage and then discharged directly to the ground through only one pin. This is done for all pins.
Table 2. Operating conditions Symbol Parameter LF253 LF353 Unit
VCC Supply voltage 6 to 36 V Toper Operating free-air temperature range -40 to +105 0 to +70 °C Doc ID 2153 Rev 3 3/15 Document Outline 1 Schematics Figure 1. Schematic diagram (each amplifier) 2 Absolute maximum ratings and operating conditions Table 1. Absolute maximum ratings Table 2. Operating conditions 3 Electrical characteristics Table 3. Electrical characteristics at VCC = ±15 V, Tamb = +25˚C (unless otherwise specified) Figure 2. Maximum peak-to-peak output voltage vs. frequency, RL = 2 kW Figure 3. Maximum peak-to-peak output voltage vs. frequency, RL = 10 kW Figure 4. Maximum peak-to-peak output voltage versus frequency Figure 5. Maximum peak-to-peak output voltage versus free air temperature Figure 6. Maximum peak-to-peak output voltage versus load resistance Figure 7. Maximum peak-to-peak output voltage versus supply voltage Figure 8. Input bias current versus free air temperature Figure 9. Large signal differential voltage amplification versus free air temp. Figure 10. Large signal differential voltage amplification and phase shift versus frequency Figure 11. Total power dissipation versus free air temperature Figure 12. Supply current per amplifier versus free air temperature Figure 13. Supply current per amplifier versus supply voltage Figure 14. Common mode rejection ratio versus free air temperature Figure 15. Voltage follower large signal pulse response Figure 16. Output voltage versus elapsed time Figure 17. Equivalent input noise voltage versus frequency Figure 18. Total harmonic distortion versus frequency 4 Parameter measurement information Figure 19. Voltage follower Figure 20. Gain of 10 inverting amplifier 5 Typical application Figure 21. Quadruple oscillator 6 Package information 6.1 DIP8 package information Figure 22. DIP8 package mechanical drawing Table 4. DIP8 package mechanical data 6.2 SO-8 package information Figure 23. SO-8 package mechanical drawing Table 5. SO-8 package mechanical data 7 Ordering information Table 6. Order codes 8 Revision history Table 7. Document revision history
