Micrel, Inc. MIC7111 Since a significant percentage of CIN may be caused by

Micrel, Inc MIC7111 Since a significant percentage of CIN may be caused by

该数据表的模型线

文件文字版本

Micrel, Inc. MIC7111 Since a significant percentage of CIN may be caused by
board layout, it is important to note that the correct value
of CFB may change when changing from a breadboard to
the final circuit layout.
Typical Circuits
Some single-supply, rail-to-rail applications − for which
the MIC7111 is well suited − are shown in the circuit

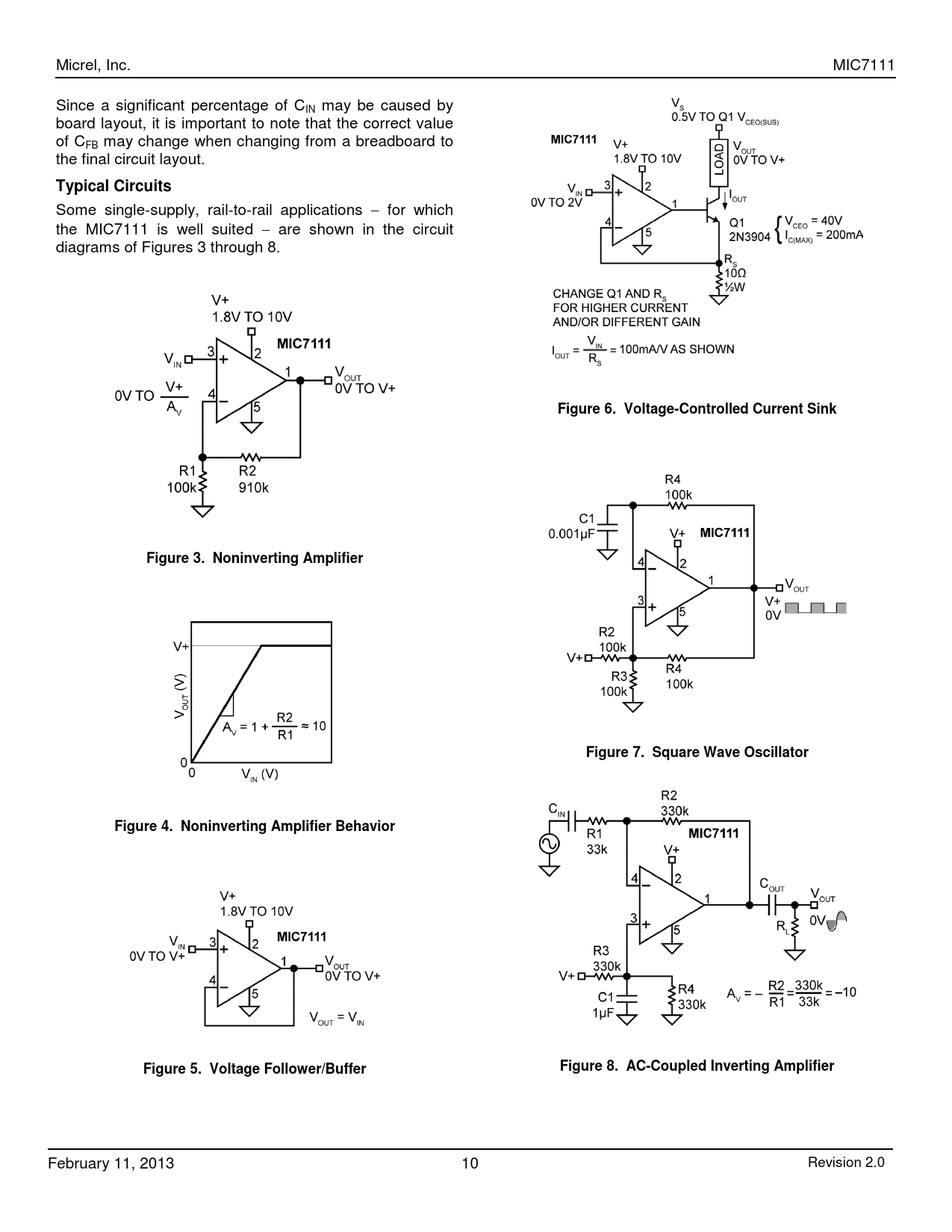

diagrams of Figures 3 through 8. Figure 6. Voltage-Controlled Current Sink Figure 3. Noninverting Amplifier Figure 7. Square Wave Oscillator Figure 4. Noninverting Amplifier Behavior Figure 8. AC-Coupled Inverting Amplifier Figure 5. Voltage Follower/Buffer February 11, 2013 10 Revision 2.0
