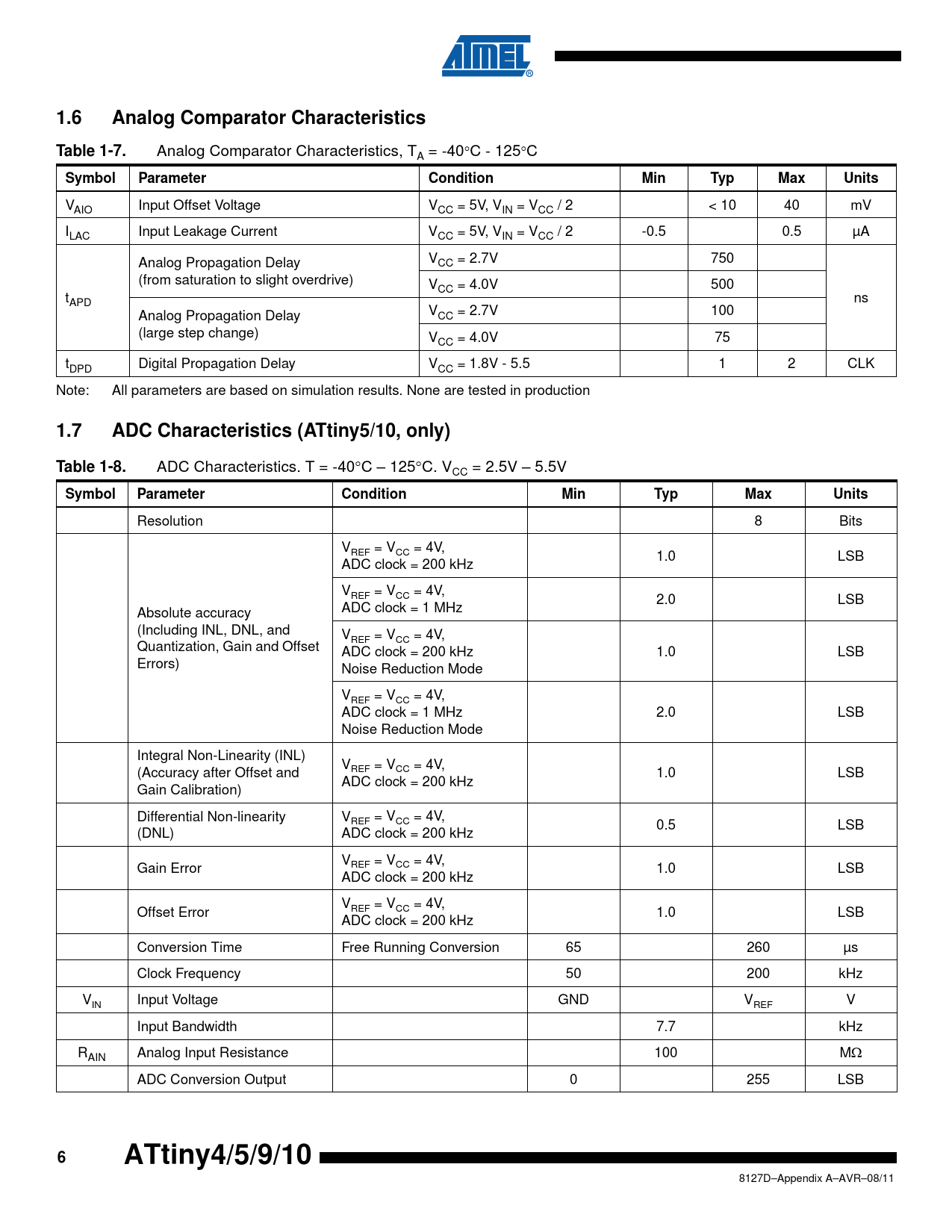

1.6. Analog Comparator Characteristics. Table 1-7. Symbol. Parameter. Condition. Min. Typ. Max. Units. 1.7
该数据表的模型线
文件文字版本
1.6 Analog Comparator Characteristics Table 1-7.
Analog Comparator Characteristics, T = -40°C - 125°C A
Symbol Parameter Condition Min Typ Max Units
VAIO Input Offset Voltage VCC = 5V, VIN = VCC / 2 < 10 40 mV ILAC Input Leakage Current VCC = 5V, VIN = VCC / 2 -0.5 0.5 µA Analog Propagation Delay VCC = 2.7V 750 (from saturation to slight overdrive) VCC = 4.0V 500 tAPD ns Analog Propagation Delay VCC = 2.7V 100 (large step change) VCC = 4.0V 75 tDPD Digital Propagation Delay VCC = 1.8V - 5.5 1 2 CLK Note: All parameters are based on simulation results. None are tested in production
1.7 ADC Characteristics (ATtiny5/10, only) Table 1-8.
ADC Characteristics. T = -40°C – 125°C. V = 2.5V – 5.5V CC
Symbol Parameter Condition Min Typ Max Units
Resolution 8 Bits VREF = VCC = 4V, 1.0 LSB ADC clock = 200 kHz V = V = 4V, REF CC 2.0 LSB Absolute accuracy ADC clock = 1 MHz (Including INL, DNL, and V = V = 4V, REF CC Quantization, Gain and Offset ADC clock = 200 kHz 1.0 LSB Errors) Noise Reduction Mode V = V = 4V, REF CC ADC clock = 1 MHz 2.0 LSB Noise Reduction Mode Integral Non-Linearity (INL) V (Accuracy after Offset and REF = VCC = 4V, 1.0 LSB ADC clock = 200 kHz Gain Calibration) Differential Non-linearity V = V = 4V, REF CC 0.5 LSB (DNL) ADC clock = 200 kHz V Gain Error REF = VCC = 4V, 1.0 LSB ADC clock = 200 kHz V = V = 4V, Offset Error REF CC 1.0 LSB ADC clock = 200 kHz Conversion Time Free Running Conversion 65 260 µs Clock Frequency 50 200 kHz VIN Input Voltage GND VREF V Input Bandwidth 7.7 kHz RAIN Analog Input Resistance 100 MΩ ADC Conversion Output 0 255 LSB
