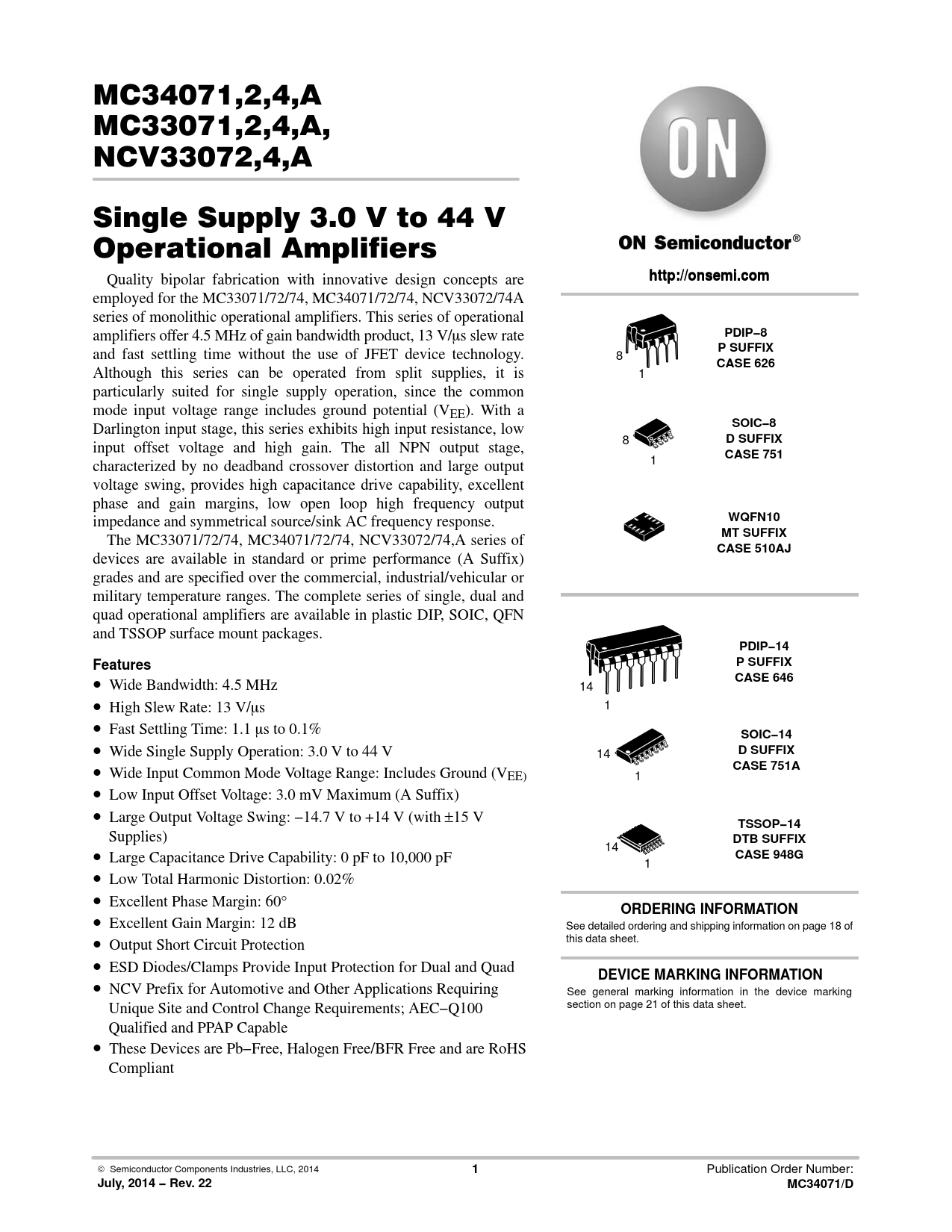

link to page 18 link to page 21 MC34071,2,4,A MC33071,2,4,A, NCV33072,4,A Single Supply 3.0 V to 44 V Operational Amplifiers Quality bipolar fabrication with innovative design concepts are
http://onsemi.com
employed for the MC33071/72/74, MC34071/72/74, NCV33072/74A series of monolithic operational amplifiers. This series of operational amplifiers offer 4.5 MHz of gain bandwidth product, 13 V/ms slew rate
PDIP−8
and fast settling time without the use of JFET device technology.
P SUFFIX
8
CASE 626
Although this series can be operated from split supplies, it is 1 particularly suited for single supply operation, since the common mode input voltage range includes ground potential (VEE). With a Darlington input stage, this series exhibits high input resistance, low
SOIC−8
8
D SUFFIX
input offset voltage and high gain. The all NPN output stage,
CASE 751
characterized by no deadband crossover distortion and large output 1 voltage swing, provides high capacitance drive capability, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source/sink AC frequency response.
WQFN10 MT SUFFIX
The MC33071/72/74, MC34071/72/74, NCV33072/74,A series of
CASE 510AJ
devices are available in standard or prime performance (A Suffix) grades and are specified over the commercial, industrial/vehicular or military temperature ranges. The complete series of single, dual and quad operational amplifiers are available in plastic DIP, SOIC, QFN and TSSOP surface mount packages.
PDIP−14 Features P SUFFIX

CASE 646
Wide Bandwidth: 4.5 MHz 14 • High Slew Rate: 13 V/ms 1 • Fast Settling Time: 1.1 ms to 0.1%
SOIC−14
• Wide Single Supply Operation: 3.0 V to 44 V 14
D SUFFIX

CASE 751A
Wide Input Common Mode Voltage Range: Includes Ground (VEE) 1 • Low Input Offset Voltage: 3.0 mV Maximum (A Suffix) • Large Output Voltage Swing: −14.7 V to +14 V (with ±15 V
TSSOP−14
Supplies)
DTB SUFFIX
• 14 Large Capacitance Drive Capability: 0 pF to 10,000 pF
CASE 948G
1 • Low Total Harmonic Distortion: 0.02% • Excellent Phase Margin: 60° •
ORDERING INFORMATION
Excellent Gain Margin: 12 dB See detailed ordering and shipping information on page 18 of • this data sheet. Output Short Circuit Protection • ESD Diodes/Clamps Provide Input Protection for Dual and Quad •
DEVICE MARKING INFORMATION
NCV Prefix for Automotive and Other Applications Requiring See general marking information in the device marking Unique Site and Control Change Requirements; AEC−Q100 section on page 21 of this data sheet. Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant © Semiconductor Components Industries, LLC, 2014
1
Publication Order Number:
July, 2014 − Rev. 22 MC34071/D
