Datasheet Diodes DMMT3904WQ — 数据表
| 制造商 | Diodes |
| 系列 | DMMT3904WQ |

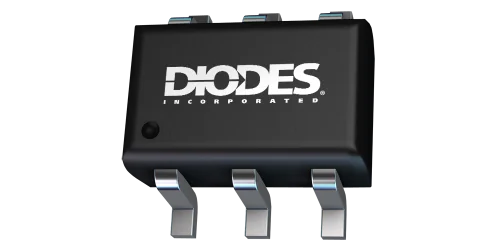

双NPN，40V，0.2A，SOT363
数据表
Datasheet DMMT3904WQ
PDF, 466 Kb, 语言: en, 文件上传: Sep 22, 2025, 页数: 6
Dual NPN, 40V, 0.2A, SOT363
Dual NPN, 40V, 0.2A, SOT363
从文件中提取
参数化
| Parameters / Models | DMMT3904WQ-7-F |
|---|---|
| Category | Small Signal Transistor (Matched hFE VCE(sat) & VBE) |
| Compliance (Only Automotive Supports PPAP) | Automotive |
| IC (A) | 0.2 |
| PD (W) | 0.2 |
| Polarity | NPN + NPN |
| VCE(SAT) (@ IC/IB) (A/mA) | 0.01/1 |
| VCE(sat) (@ IC/IB2) (A/mA) | 0.05/5 |
| VCE(sat) (Max.2) (mV) | 300 |
| VCE(sat) Max (mV) | 200 |
| VCEO, VCES (V) | 40 |
| fT (MHz) | 300 |
| hFE (@ IC) (A) | 0.01 |
| hFE (@ IC2) (A) | 0.05 |
| hFE (Min) | 100 |
| hFE(Min 2) | 60 |
模型线
系列: DMMT3904WQ (1)
制造商分类
- Discrete Semiconductors > Bipolar Transistors > DMMT3904WQ
