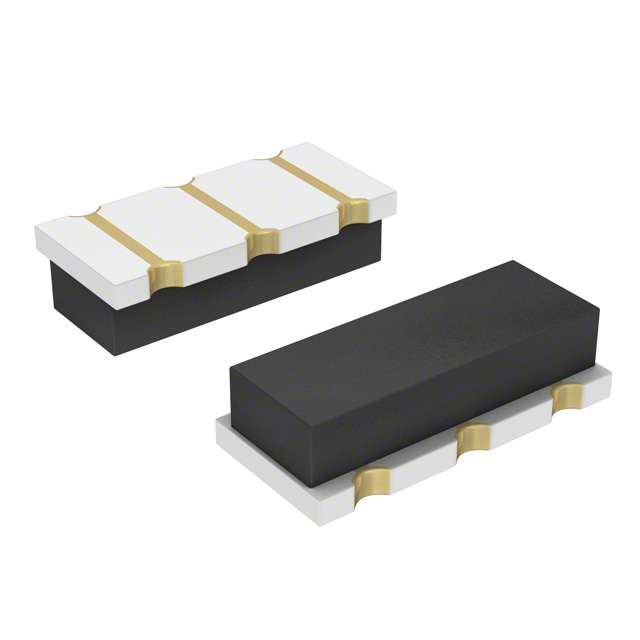

PBRC -B, -D Series Chip Resonators
Built-in Capacitor MHz Band SMT Resonators
FEATURES HOW TO ORDER 1) Built-in load capacitor
2) High reliability chip resonator
in a ceramic case which can
be reflow soldered and washed
3) Ultra-miniature size is suitable
for compact equipment and
high mounting density
4) Rectangular shape allows
easy “pick and place” operation
5) 2000 pcs. per reel
6) Sold in increments of 2000 pcs. PBRC -4.00 B R ƒO: 2.00 to 36.00 MHz 1
2
3
4 5
Type: (Piezo Bulk Resonator Chip)
Oscillation frequency (MHz)
Resonator type:
B = With capacitor (2.00~20.00MHz)
D = With capacitor (20.01~36.00MHz)
Packaging:
R = Tape and reel …
