Datasheet Wago 773-118 — 数据表

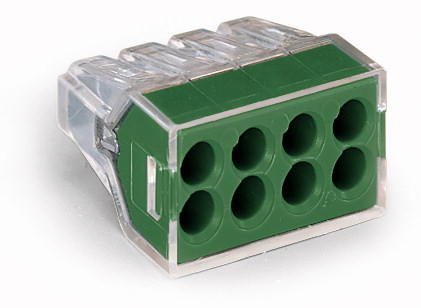

用于接线盒的推线连接器； 8芯;透明的外壳；绿脸
参数化
| Actuation type | Push-in |
| Color | transparent |
| Connectable conductor materials | Copper Aluminum |
| Connection technology | PUSH WIRE® |
| Страна происхождения | CN |
| Cover color | green |
| Depth | 19.5 mm / 0.768 inch |
| Fire load | 0.099 MJ |
| Flammability class per UL94 | V2 |
| Global Trade Item Number (GTIN) | 4055143237567 |
| Height | 13.1 mm / 0.516 inch |
| Legend (ratings) | (II / 2) ≙ Overvoltage category II / Pollution degree 2 |
| Rated current | 24 A |
| Rated impulse voltage (II / 2) | 4 kV |
| Rated voltage (II / 2) | 400 V |
| Solid conductor | 0.75 … 2.5 mm² / 18 … 12 AWG |
| Strip length | 12 mm / 0.47 Inch |
| Surrounding air (operating) temperature | 60 °C |
| Total number of connection points | 8 |
| Total number of potentials | 1 |
| Type of wiring | Side-entry wiring |
| Weight | 4.604 g |
| Width | 24 mm / 0.945 inch |
模型线
系列: 773 (19)
制造商分类
- Wire/Splicing Connectors
其他名称:
773118, 773 118
