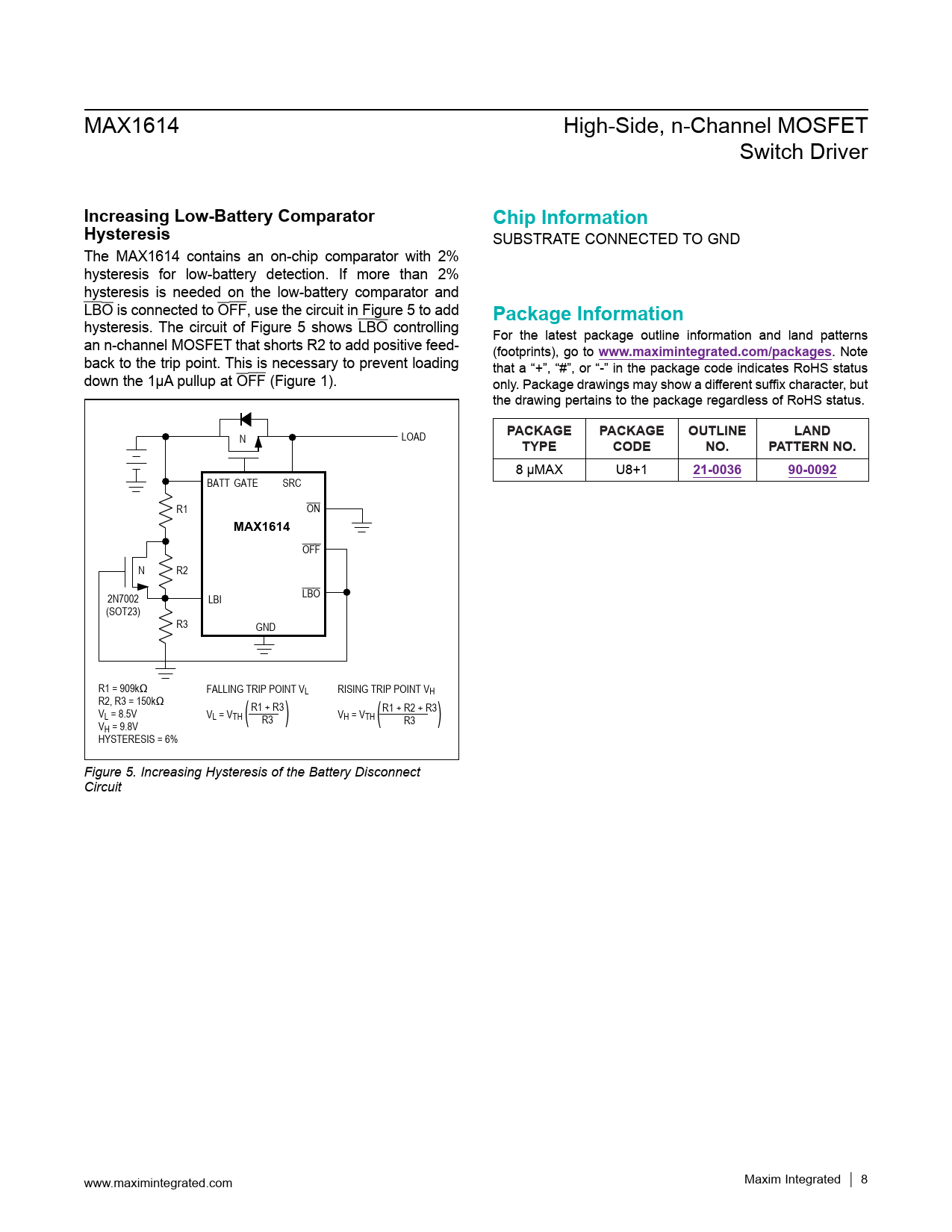

MAX1614 High-Side, n-Channel MOSFET Switch Driver
Increasing Low-Battery Comparator Chip Information Hysteresis
SUBSTRATE CONNECTED TO GND The MAX1614 contains an on-chip comparator with 2% hysteresis for low-battery detection. If more than 2% hysteresis is needed on the low-battery comparator and LBO is connected to OFF, use the circuit in Figure 5 to add
Package Information
hysteresis. The circuit of Figure 5 shows LBO controlling For the latest package outline information and land patterns an n-channel MOSFET that shorts R2 to add positive feed- (footprints), go to
www.maximintegrated.com/packages
. Note back to the trip point. This is necessary to prevent loading that a “+”, “#”, or “-” in the package code indicates RoHS status down the 1μA pullup at OFF (Figure 1). only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status.
PACKAGE PACKAGE OUTLINE LAND
N LOAD
TYPE CODE NO. PATTERN NO.
8 μMAX U8+1
21-0036 90-0092
BATT GATE SRC R1 ON
MAX1614
OFF N R2 LBO 2N7002 LBI (SOT23) R3 GND R1 = 909kΩ FALLING TRIP POINT VL RISING TRIP POINT VH R2, R3 = 150kΩ V R1 + R3 L = 8.5V VL = VTH ( ) VH = VTH R3 ( ) R1 + R2 + R3 V R3 H = 9.8V HYSTERESIS = 6% Figure 5. Increasing Hysteresis of the Battery Disconnect Circuit www.maximintegrated.com Maxim Integrated │ 8
