Datasheet FGD3050G2V (ON Semiconductor) - 7
| 制造商 | ON Semiconductor |
| 描述 | Ignition IGBT, 500V, 27A, 1.3V, 300mJ, DPAK EcoSPARK II, N-Channel Ignition |
| 页数 / 页 | 9 / 7 — PACKAGE DIMENSIONS. DPAK3 6.10x6.54x2.28, 2.29P. SCALE 1:1. DOCUMENT … |
| 文件格式/大小 | PDF / 602 Kb |
| 文件语言 | 英语 |

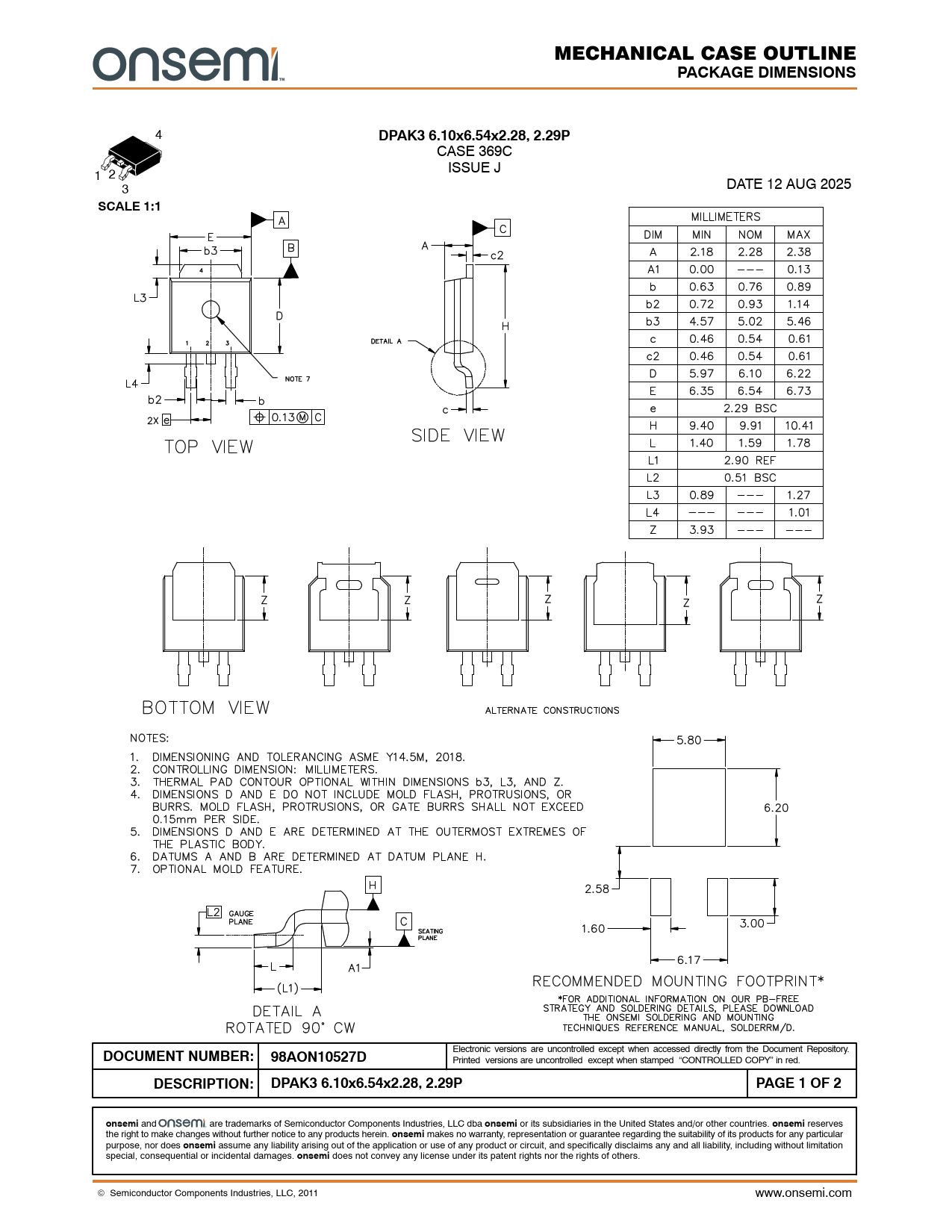

PACKAGE DIMENSIONS. DPAK3 6.10x6.54x2.28, 2.29P. SCALE 1:1. DOCUMENT NUMBER: 98AON10527D. DESCRIPTION:. PAGE 1 OF 2. onsemi
该数据表的模型线
文件文字版本
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
4
DPAK3 6.10x6.54x2.28, 2.29P
CASE 369C ISSUE J 1 2 DATE 12 AUG 2025 3
SCALE 1:1 DOCUMENT NUMBER: 98AON10527D
Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
DESCRIPTION: DPAK3 6.10x6.54x2.28, 2.29P PAGE 1 OF 2 onsemi
