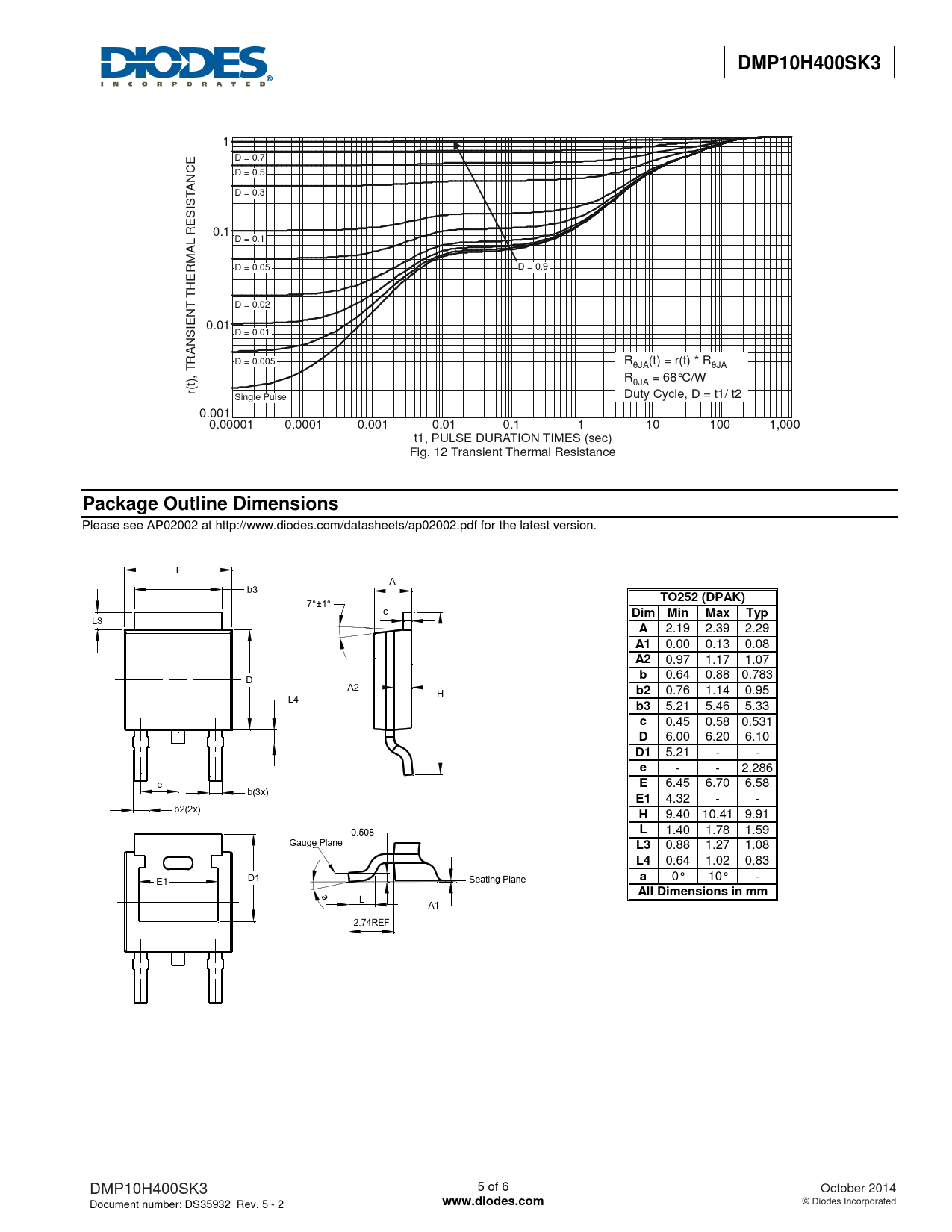

Datasheet DMP10H400SK3 (Diodes) - 5

DMP10H400SK3
1 E D = 0.7 C D = 0.5 N A T D = 0.3 SI S E R 0.1
T
L D = 0.1 A
C
M R D = 0.05 D = 0.9
U
E H
D
T
O
T D = 0.02 N
R
EI 0.01 S D = 0.01
P
N A R D = 0.005 R (t) = r(t) * R
W
JA JA T ,) R = 68°C/W
E
t JA (r Single Pulse Duty Cycle, D = t1/ t2
N
0.001 0.00001 0.0001 0.001 0.01 0.1 1 10 100 1,000 t1, PULSE DURATION TIMES (sec) Fig. 12 Transient Thermal Resistance
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version. E A b3 7°±1°
TO252 (DPAK)
c
Dim Min Max Typ
L3
A
2.19 2.39 2.29
A1
0.00 0.13 0.08
A2
0.97 1.17 1.07 D
b
0.64 0.88 0.783 A2 H
b2
0.76 1.14 0.95 L4
b3
5.21 5.46 5.33
c
0.45 0.58 0.531
D
6.00 6.20 6.10
D1
5.21 - -
e
- - 2.286 e
E
6.45 6.70 6.58 b(3x)
E1
4.32 - - b2(2x)
H
9.40 10.41 9.91 0.508
L
1.40 1.78 1.59 Gauge Plane
L3
0.88 1.27 1.08
L4
0.64 1.02 0.83 D1 E1 Seating Plane
a
0° 10° - a
All Dimensions in mm
L A1 2.74REF DMP10H400SK3 5 of 6 October 2014 Document number: DS35932 Rev. 5 - 2
