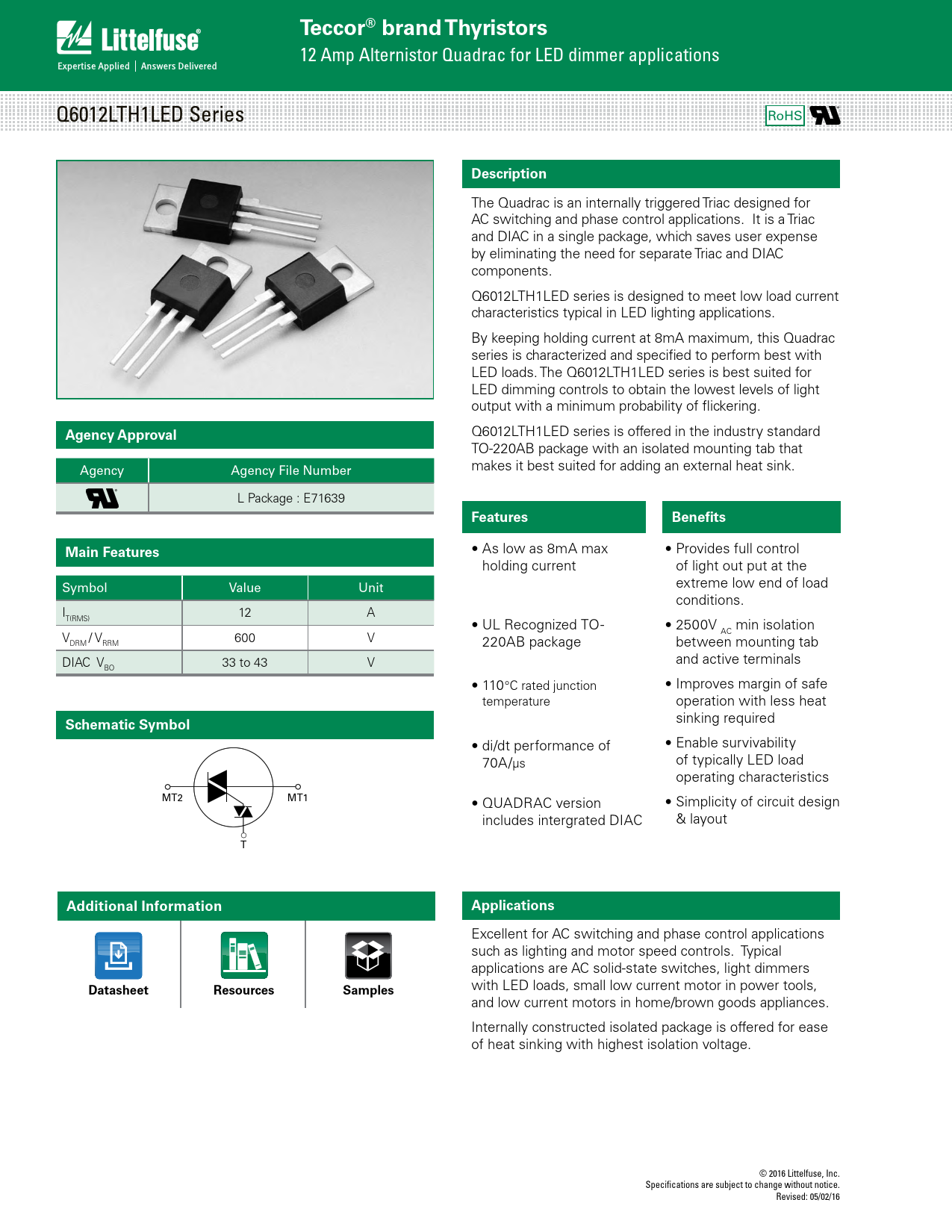

Teccor® brand Thyristors
12 Amp Alternistor Quadrac for LED dimmer applications Q6012LTH1LED Series RoHS
Description
The Quadrac is an internally triggered Triac designed for AC switching and phase control applications. It is a Triac and DIAC in a single package, which saves user expense by eliminating the need for separate Triac and DIAC components. Q6012LTH1LED series is designed to meet low load current characteristics typical in LED lighting applications. By keeping holding current at 8mA maximum, this Quadrac series is characterized and specified to perform best with LED loads. The Q6012LTH1LED series is best suited for LED dimming controls to obtain the lowest levels of light output with a minimum probability of flickering.
Agency Approval
Q6012LTH1LED series is offered in the industry standard TO-220AB package with an isolated mounting tab that Agency Agency File Number makes it best suited for adding an external heat sink. L Package : E71639
Features Benefits Main Features
• As low as 8mA max • Provides full control holding current of light out put at the Symbol Value Unit extreme low end of load conditions. I 12 A T(RMS) • UL Recognized TO- • 2500V min isolation V / V 600 V AC DRM RRM 220AB package between mounting tab DIAC V 33 to 43 V and active terminals BO • 110°C rated junction • Improves margin of safe temperature operation with less heat
Schematic Symbol
sinking required • di/dt performance of • Enable survivability 70A/μs of typical y LED load operating characteristics MT2 MT1 • QUADRAC version • Simplicity of circuit design includes intergrated DIAC & layout T
Additional Information Applications
Excellent for AC switching and phase control applications such as lighting and motor speed controls. Typical applications are AC solid-state switches, light dimmers with LED loads, small low current motor in power tools,
Datasheet Resources Samples
and low current motors in home/brown goods appliances. Internally constructed isolated package is offered for ease of heat sinking with highest isolation voltage. © 2016 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 05/02/16
