Datasheet IGB03N120H2 (Infineon) - 9
| 制造商 | Infineon |
| 描述 | HighSpeed 2-Technology for 1200V in PG-TO263-3-2 Package |
| 页数 / 页 | 12 / 9 — Figure 21. Typical turn off behavior, soft. switching |
| 文件格式/大小 | PDF / 1.2 Mb |
| 文件语言 | 英语 |

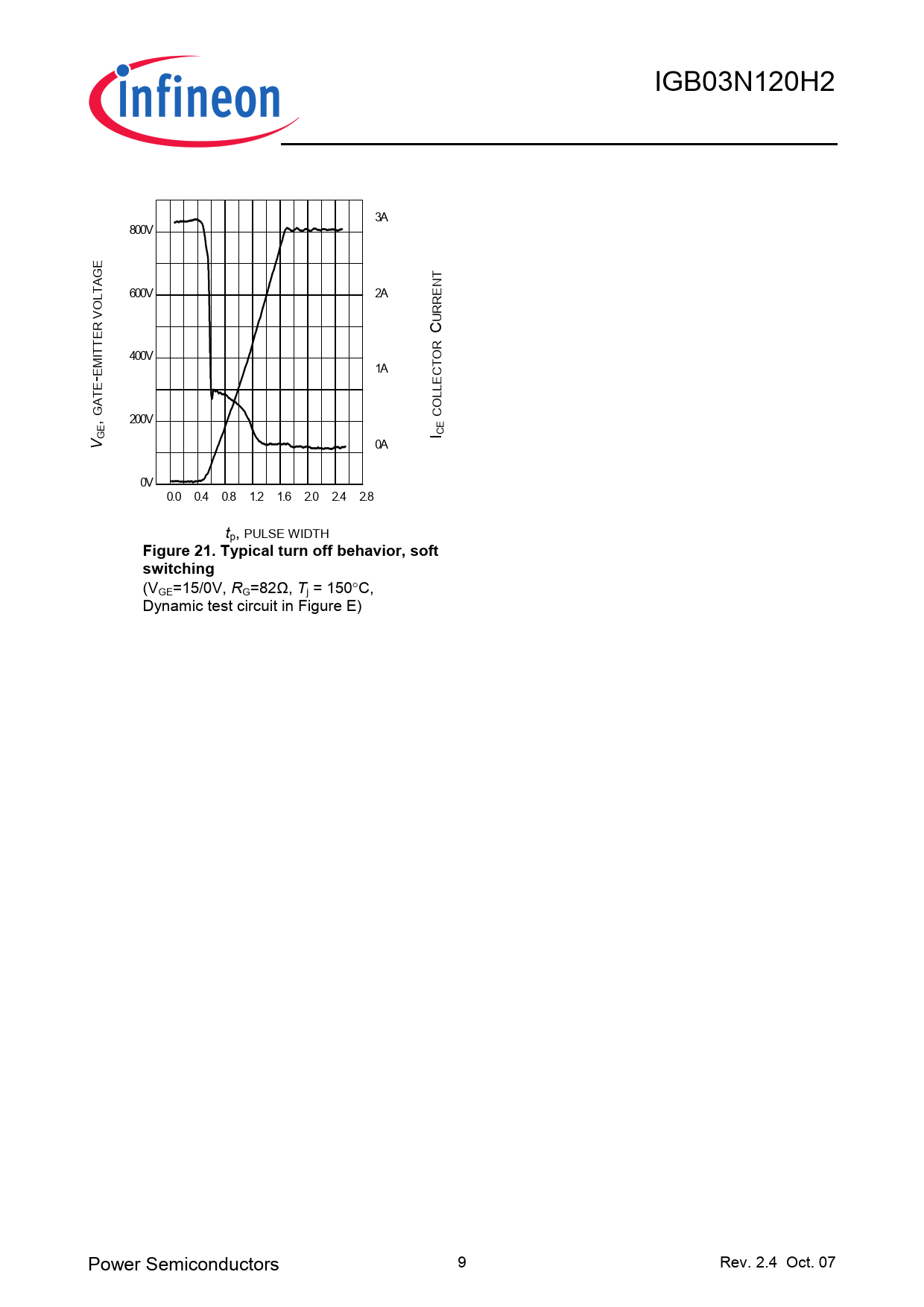

Figure 21. Typical turn off behavior, soft. switching
该数据表的模型线
文件文字版本
IGB03N120H2 3A 800V E G T A N LT 600V 2A O URRE R V E C T IT 400V OR -EM 1A CT TE , GA 200V COLLE I CE V GE 0A 0V 0.0 0.4 0.8 1.2 1.6 2.0 2.4 2.8 tp, PULSE WIDTH
Figure 21. Typical turn off behavior, soft switching
(VGE=15/0V, RG=82Ω, Tj = 150°C, Dynamic test circuit in Figure E) Power Semiconductors 9 Rev. 2.4 Oct. 07
Figure 21. Typical turn off behavior, soft switching
(VGE=15/0V, RG=82Ω, Tj = 150°C, Dynamic test circuit in Figure E) Power Semiconductors 9 Rev. 2.4 Oct. 07
