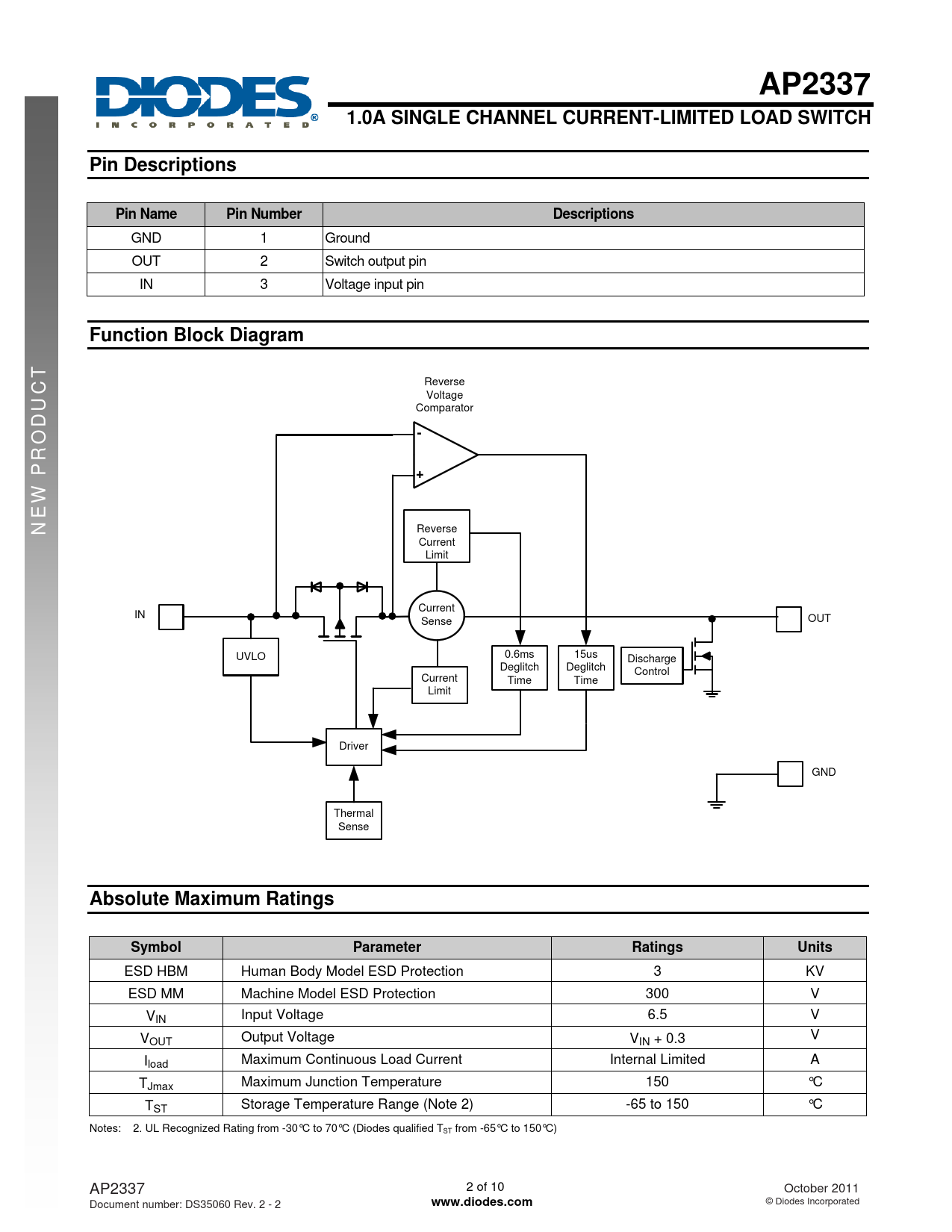

Datasheet AP2337 (Diodes) - 2

AP2337 1.0A SINGLE CHANNEL CURRENT-LIMITED LOAD SWITCH Pin Descriptions Pin Name Pin Number Descriptions
GND 1 Ground OUT 2 Switch output pin IN 3 Voltage input pin
Function Block Diagram T
Reverse
UC
Voltage Comparator
- + NEW PROD
Reverse Current Limit Current IN OUT Sense UVLO 0.6ms 15us Discharge Deglitch Deglitch Control Current Time Time Limit Driver GND Thermal Sense
Absolute Maximum Ratings Symbol Parameter Ratings Units
ESD HBM Human Body Model ESD Protection 3 KV ESD MM Machine Model ESD Protection 300 V VIN Input Voltage 6.5 V VOUT Output Voltage VIN + 0.3 V Iload Maximum Continuous Load Current Internal Limited A TJmax Maximum Junction Temperature 150 °C TST Storage Temperature Range (Note 2) -65 to 150 °C Notes: 2. UL Recognized Rating from -30°C to 70°C (Diodes qualified TST from -65°C to 150°C) AP2337 2 of 10 October 2011 Document number: DS35060 Rev. 2 - 2
