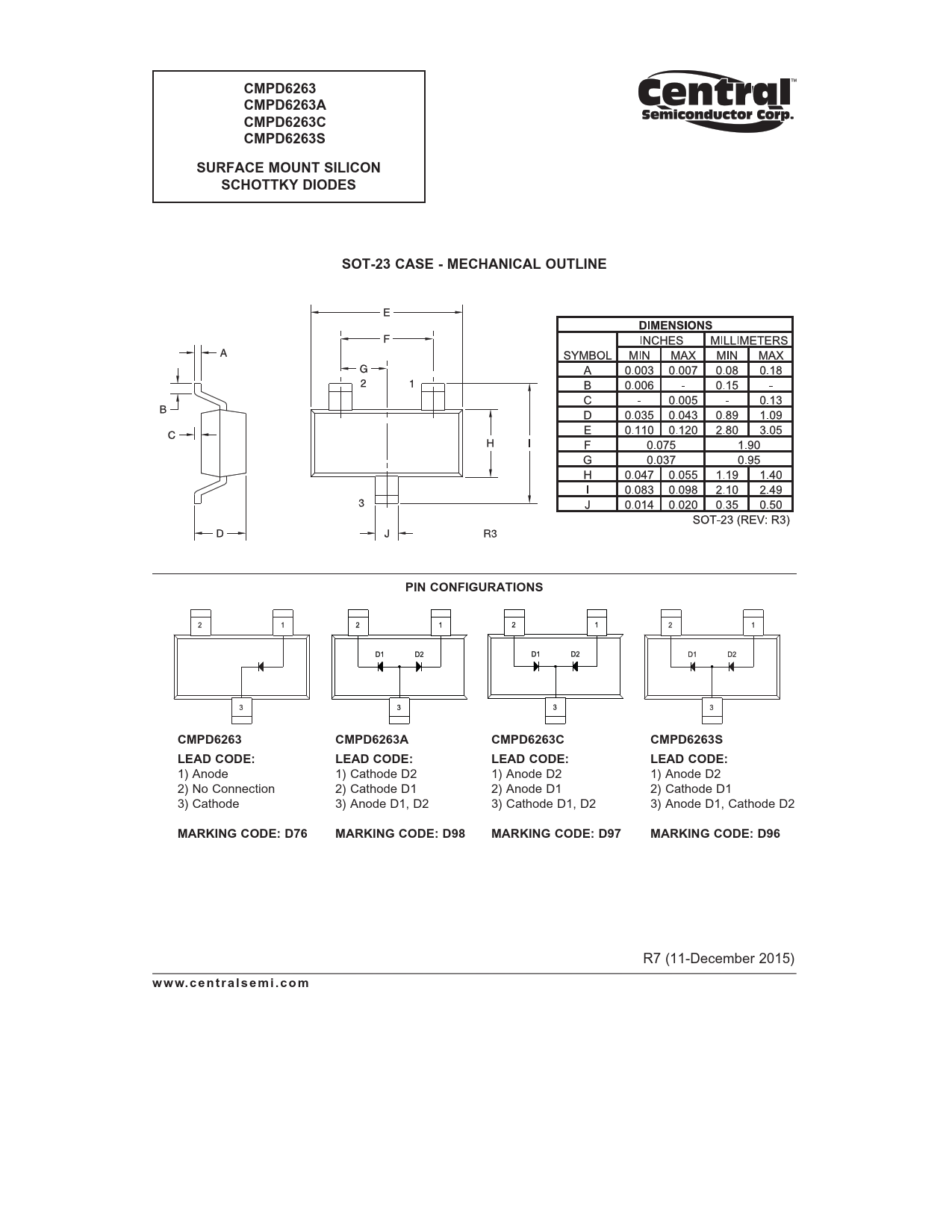

CMPD6263. CMPD6263A. CMPD6263C. CMPD6263S. SURFACE MOUNT SILICON. SCHOTTKY DIODES. SOT-23 CASE - MECHANICAL OUTLINE
该数据表的模型线
文件文字版本
CMPD6263 CMPD6263A CMPD6263C CMPD6263S SURFACE MOUNT SILICON SCHOTTKY DIODES SOT-23 CASE - MECHANICAL OUTLINE PIN CONFIGURATIONS CMPD6263 CMPD6263A CMPD6263C CMPD6263S LEAD CODE: LEAD CODE: LEAD CODE: LEAD CODE:
1) Anode 1) Cathode D2 1) Anode D2 1) Anode D2 2) No Connection 2) Cathode D1 2) Anode D1 2) Cathode D1 3) Cathode 3) Anode D1, D2 3) Cathode D1, D2 3) Anode D1, Cathode D2
MARKING CODE: D76 MARKING CODE: D98 MARKING CODE: D97 MARKING CODE: D96
R7 (11-December 2015)
www.centralsemi.com
