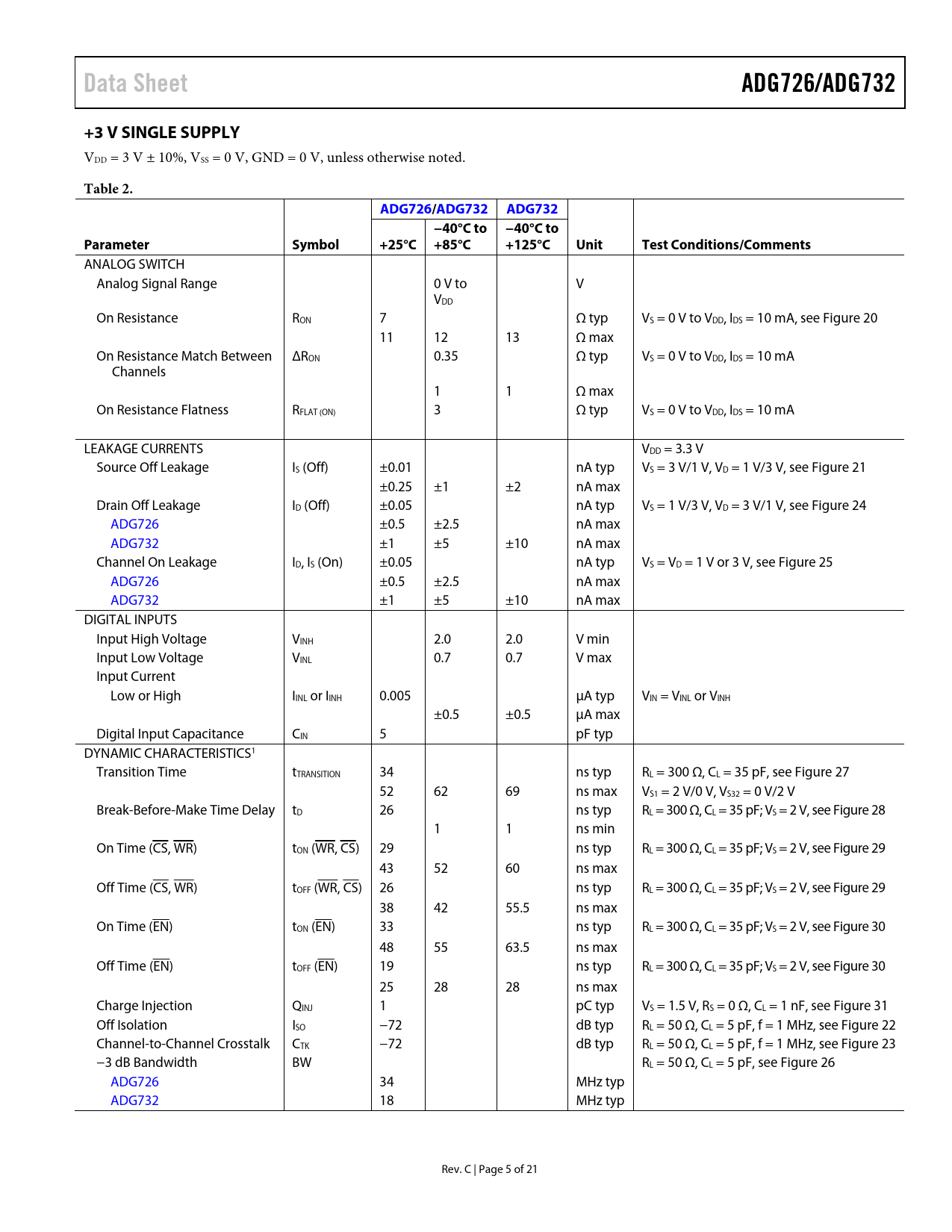

Data Sheet ADG726/ADG732 +3 V SINGLE SUPPLY
VDD = 3 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. ADG726/ ADG732 ADG732 −40°C to −40°C to Parameter Symbol +25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to V VDD On Resistance RON 7 Ω typ VS = 0 V to VDD, IDS = 10 mA, see Figure 20 11 12 13 Ω max On Resistance Match Between ΔRON 0.35 Ω typ VS = 0 V to VDD, IDS = 10 mA Channels 1 1 Ω max On Resistance Flatness RFLAT (ON) 3 Ω typ VS = 0 V to VDD, IDS = 10 mA LEAKAGE CURRENTS VDD = 3.3 V Source Off Leakage IS (Off) ±0.01 nA typ VS = 3 V/1 V, VD = 1 V/3 V, see Figure 21 ±0.25 ±1 ±2 nA max Drain Off Leakage ID (Off) ±0.05 nA typ VS = 1 V/3 V, VD = 3 V/1 V, see Figure 24 ADG726 ±0.5 ±2.5 nA max ADG732 ±1 ±5 ±10 nA max Channel On Leakage ID, IS (On) ±0.05 nA typ VS = VD = 1 V or 3 V, see Figure 25 ADG726 ±0.5 ±2.5 nA max ADG732 ±1 ±5 ±10 nA max DIGITAL INPUTS Input High Voltage VINH 2.0 2.0 V min Input Low Voltage VINL 0.7 0.7 V max Input Current Low or High IINL or IINH 0.005 μA typ VIN = VINL or VINH ±0.5 ±0.5 μA max Digital Input Capacitance CIN 5 pF typ DYNAMIC CHARACTERISTICS1 Transition Time tTRANSITION 34 ns typ RL = 300 Ω, CL = 35 pF, see Figure 27 52 62 69 ns max VS1 = 2 V/0 V, VS32 = 0 V/2 V Break-Before-Make Time Delay tD 26 ns typ RL = 300 Ω, CL = 35 pF; VS = 2 V, see Figure 28 1 1 ns min On Time (CS, WR) tON (WR, CS) 29 ns typ RL = 300 Ω, CL = 35 pF; VS = 2 V, see Figure 29 43 52 60 ns max Off Time (CS, WR) tOFF (WR, CS) 26 ns typ RL = 300 Ω, CL = 35 pF; VS = 2 V, see Figure 29 38 42 55.5 ns max On Time (EN) tON (EN) 33 ns typ RL = 300 Ω, CL = 35 pF; VS = 2 V, see Figure 30 48 55 63.5 ns max Off Time (EN) tOFF (EN) 19 ns typ RL = 300 Ω, CL = 35 pF; VS = 2 V, see Figure 30 25 28 28 ns max Charge Injection QINJ 1 pC typ VS = 1.5 V, RS = 0 Ω, CL = 1 nF, see Figure 31 Off Isolation ISO −72 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 22 Channel-to-Channel Crosstalk CTK −72 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 23 −3 dB Bandwidth BW RL = 50 Ω, CL = 5 pF, see Figure 26 ADG726 34 MHz typ ADG732 18 MHz typ Rev. C | Page 5 of 21 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS +5 V SINGLE SUPPLY +3 V SINGLE SUPPLY ±2.5 V DUAL SUPPLY TIMING CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTION 48-LEAD TQFP 48-LEAD LFCSP Truth Tables TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
