ADG725/ADG731. ABSOLUTE MAXIMUM RATINGS1. CAUTION. WARNING!. ESD SENSITIVE DEVICE
该数据表的模型线
文件文字版本

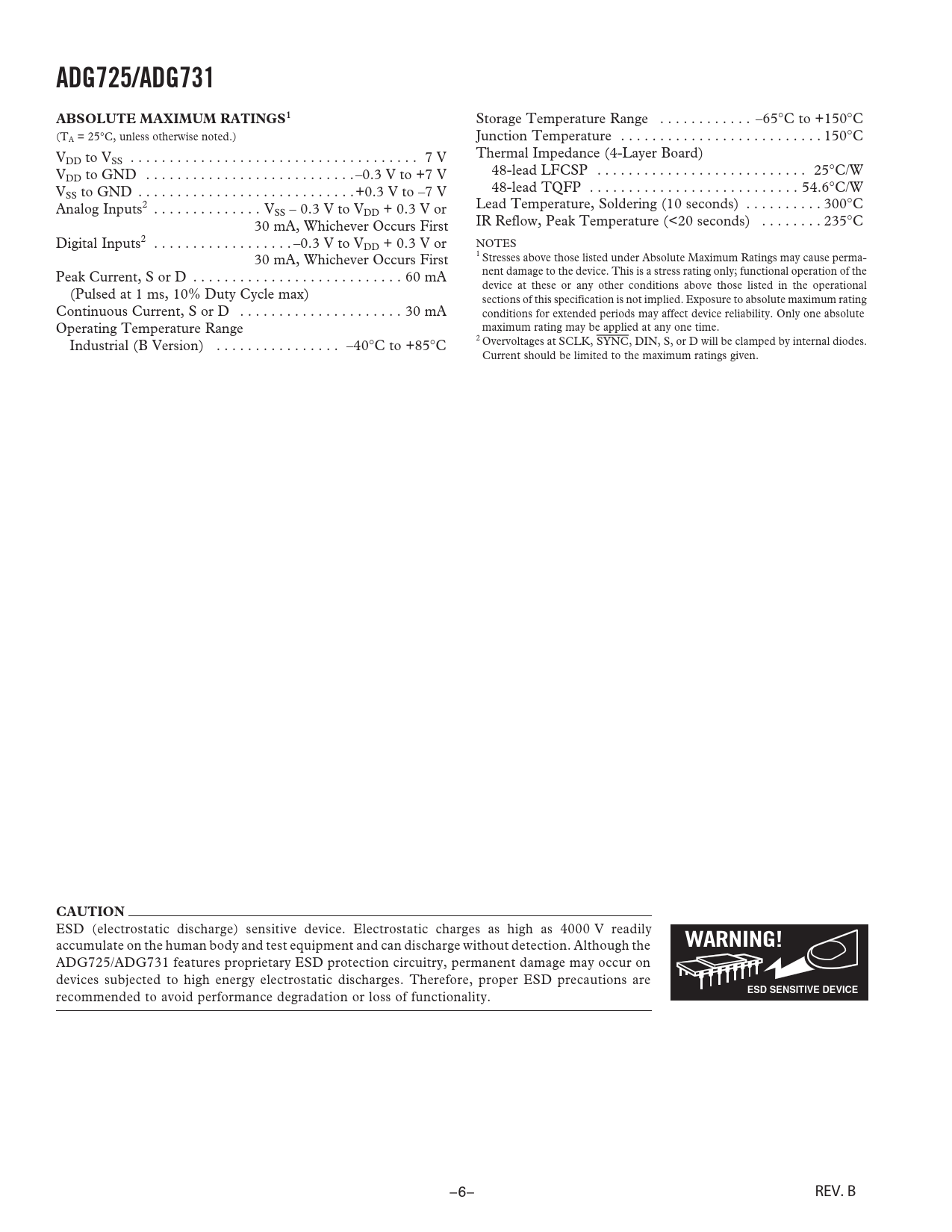

ADG725/ADG731 ABSOLUTE MAXIMUM RATINGS1
Storage Temperature Range . –65°C to +150°C (T Junction Temperature . 150°C A = 25°C, unless otherwise noted.) V Thermal Impedance (4-Layer Board) DD to VSS . 7 V V 48-lead LFCSP . 25°C/W DD to GND . –0.3 V to +7 V V 48-lead TQFP . 54.6°C/W SS to GND . +0.3 V to –7 V Analog Inputs2 . V Lead Temperature, Soldering (10 seconds) . 300°C SS – 0.3 V to VDD + 0.3 V or 30 mA, Whichever Occurs First IR Reflow, Peak Temperature (<20 seconds) . 235°C Digital Inputs2 . –0.3 V to VDD + 0.3 V or NOTES 30 mA, Whichever Occurs First 1 Stresses above those listed under Absolute Maximum Ratings may cause perma- Peak Current, S or D . 60 mA nent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational (Pulsed at 1 ms, 10% Duty Cycle max) sections of this specification is not implied. Exposure to absolute maximum rating Continuous Current, S or D . 30 mA conditions for extended periods may affect device reliability. Only one absolute Operating Temperature Range maximum rating may be applied at any one time. 2 Industrial (B Version) . –40°C to +85°C Overvoltages at SCLK, SYNC, DIN, S, or D will be clamped by internal diodes. Current should be limited to the maximum ratings given.
