Datasheet ADG5433, ADG5434 (Analog Devices)

制造商Analog Devices
描述High Voltage Latch-Up Proof, Triple/Quad SPDT Switches
页数 / 页24 / 1 — High Voltage Latch-Up Proof,. Triple/Quad SPDT Switches. Data Sheet. …
修订版C
文件格式/大小PDF / 428 Kb
文件语言英语

High Voltage Latch-Up Proof,. Triple/Quad SPDT Switches. Data Sheet. ADG5433/. ADG5434. FEATURES. FUNCTIONAL BLOCK DIAGRAMS

Datasheet ADG5433, ADG5434 Analog Devices, 修订版: C

该数据表的模型线

文件文字版本

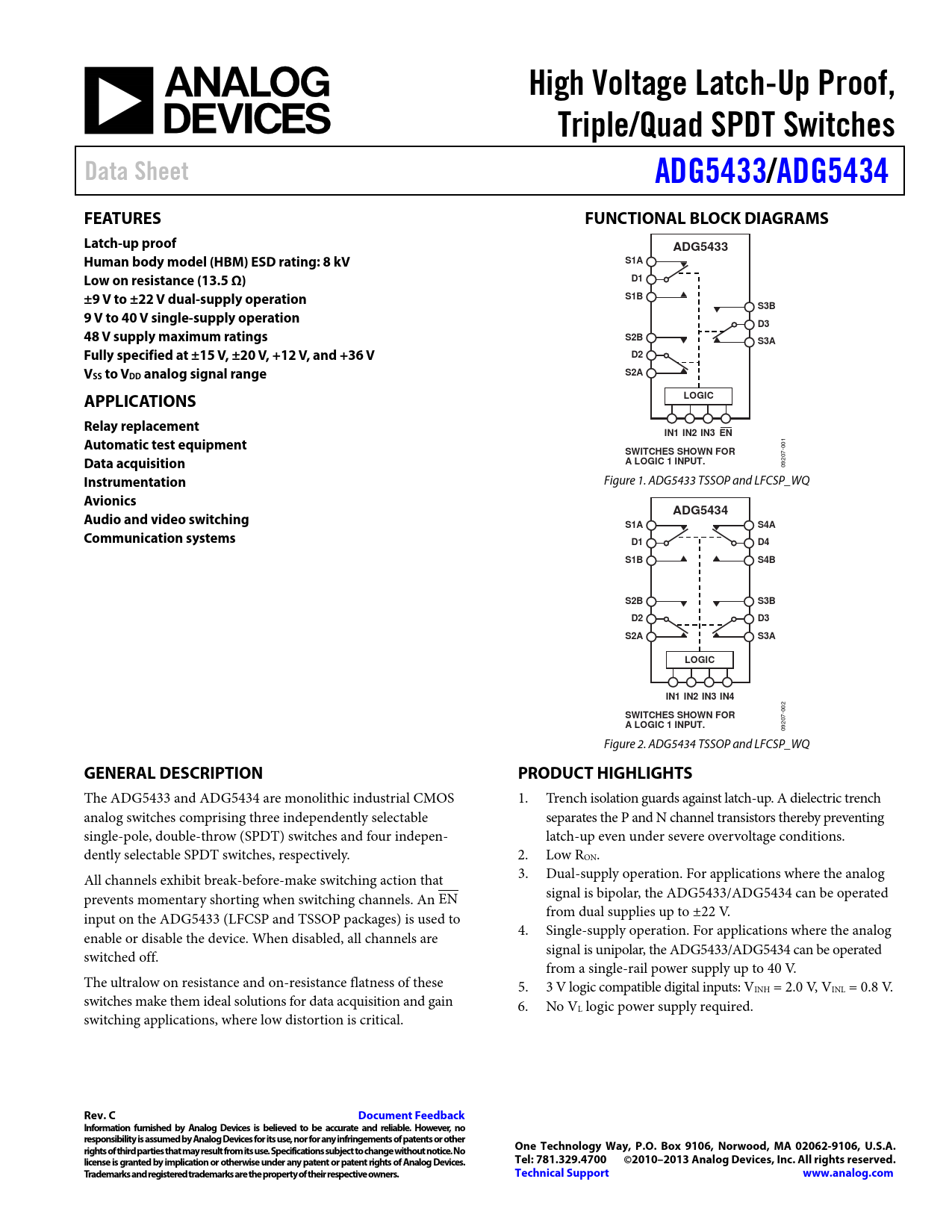

High Voltage Latch-Up Proof, Triple/Quad SPDT Switches Data Sheet ADG5433/ ADG5434 FEATURES FUNCTIONAL BLOCK DIAGRAMS Latch-up proof ADG5433 Human body model (HBM) ESD rating: 8 kV S1A Low on resistance (13.5 Ω) D1 ±9 V to ±22 V dual-supply operation S1B S3B 9 V to 40 V single-supply operation D3 48 V supply maximum ratings S2B S3A Fully specified at ±15 V, ±20 V, +12 V, and +36 V D2 VSS to VDD analog signal range S2A APPLICATIONS LOGIC Relay replacement IN1 IN2 IN3 EN Automatic test equipment
001
SWITCHES SHOWN FOR Data acquisition A LOGIC 1 INPUT.
09207-
Instrumentation
Figure 1. ADG5433 TSSOP and LFCSP_WQ
Avionics ADG5434 Audio and video switching S1A S4A Communication systems D1 D4 S1B S4B S2B S3B D2 D3 S2A S3A LOGIC IN1 IN2 IN3 IN4
002
SWITCHES SHOWN FOR A LOGIC 1 INPUT.
09207- Figure 2. ADG5434 TSSOP and LFCSP_WQ
GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG5433 and ADG5434 are monolithic industrial CMOS 1. Trench isolation guards against latch-up. A dielectric trench analog switches comprising three independently selectable separates the P and N channel transistors thereby preventing single-pole, double-throw (SPDT) switches and four indepen- latch-up even under severe overvoltage conditions. dently selectable SPDT switches, respectively. 2. Low RON. All channels exhibit break-before-make switching action that 3. Dual-supply operation. For applications where the analog prevents momentary shorting when switching channels. An EN signal is bipolar, the ADG5433/ADG5434 can be operated input on the ADG5433 (LFCSP and TSSOP packages) is used to from dual supplies up to ±22 V. enable or disable the device. When disabled, all channels are 4. Single-supply operation. For applications where the analog switched off. signal is unipolar, the ADG5433/ADG5434 can be operated from a single-rail power supply up to 40 V. The ultralow on resistance and on-resistance flatness of these 5. 3 V logic compatible digital inputs: VINH = 2.0 V, VINL = 0.8 V. switches make them ideal solutions for data acquisition and gain 6. No VL logic power supply required. switching applications, where low distortion is critical.
Rev. C Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2010–2013 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx or Dx Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Trench Isolation Applications Information Outline Dimensions Ordering Guide
