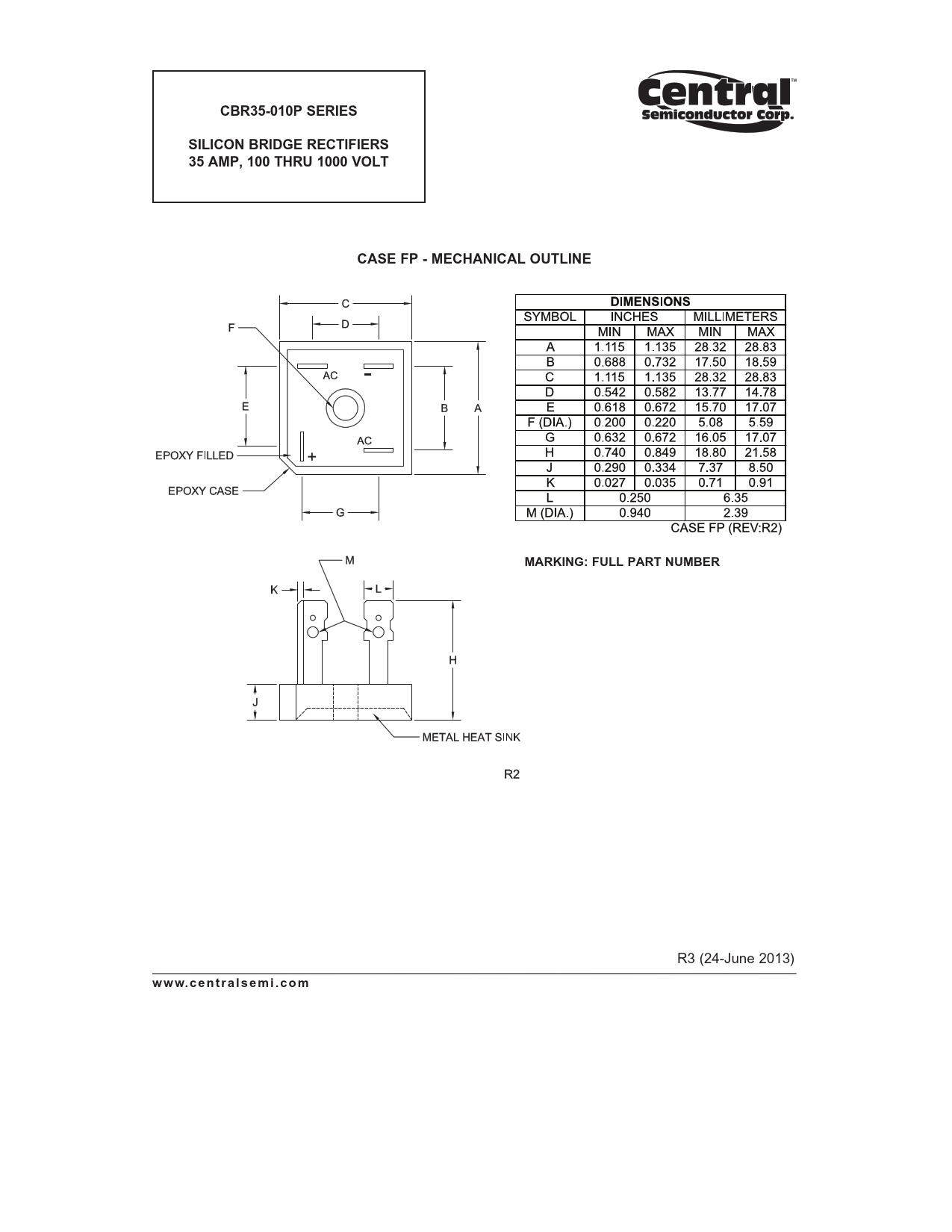

CBR35-010P SERIES. SILICON BRIDGE RECTIFIERS 35 AMP, 100 THRU 1000 VOLT. CASE FP - MECHANICAL OUTLINE

CBR35-010P SERIES SILICON BRIDGE RECTIFIERS 35 AMP, 100 THRU 1000 VOLT CASE FP - MECHANICAL OUTLINE

该数据表的模型线

文件文字版本

CBR35-010P SERIES SILICON BRIDGE RECTIFIERS 35 AMP, 100 THRU 1000 VOLT CASE FP - MECHANICAL OUTLINE MARKING: FULL PART NUMBER
R3 (24-June 2013)
w w w. c e n t r a l s e m i . c o m
