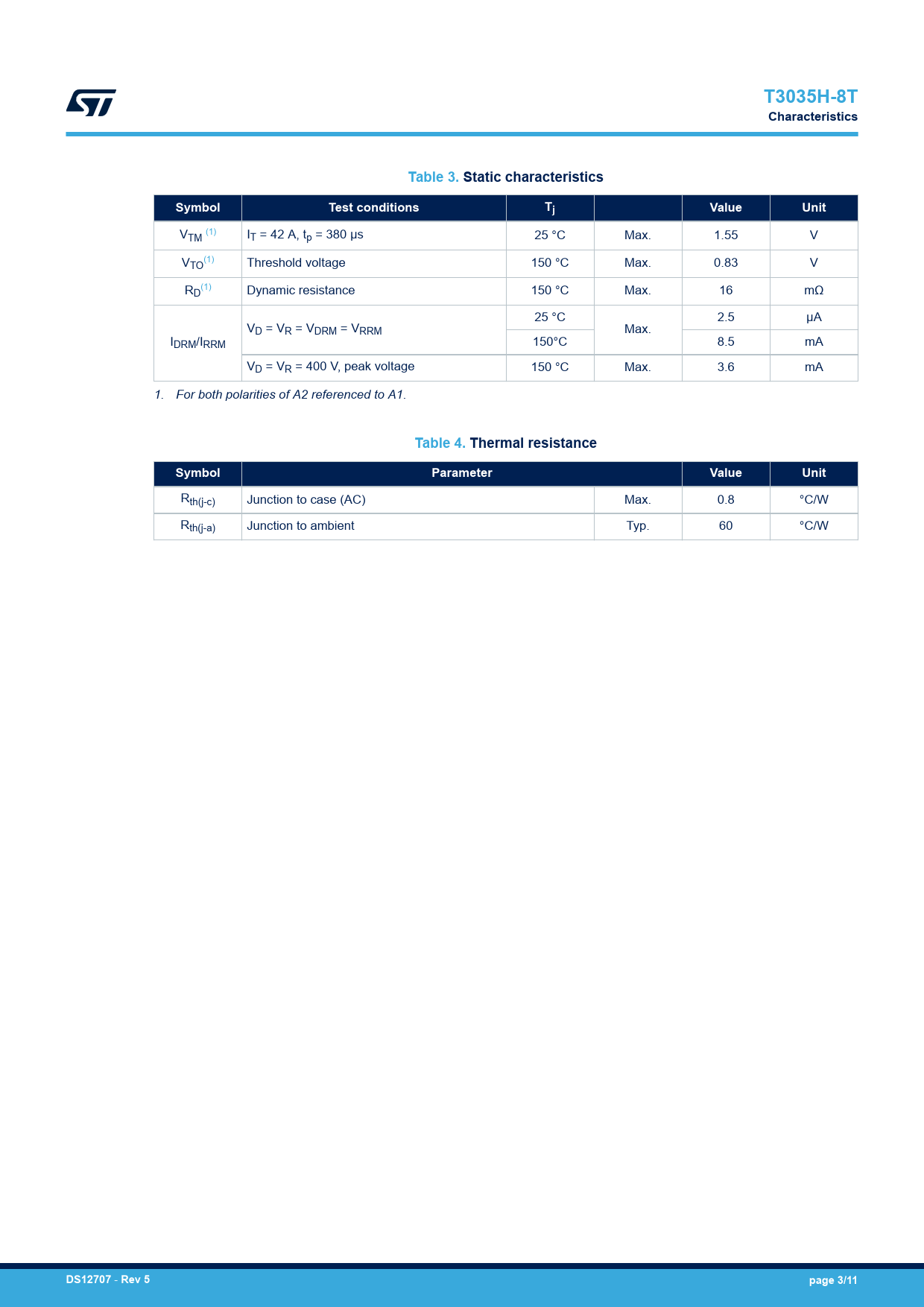

T3035H-8T Characteristics Table 3. Static characteristics Symbol Test conditions Tj Value Unit
VTM (1) IT = 42 A, tp = 380 µs 25 °C Max. 1.55 V V (1) TO Threshold voltage 150 °C Max. 0.83 V R (1) D Dynamic resistance 150 °C Max. 16 mΩ 25 °C 2.5 µA VD = VR = VDRM = VRRM Max. IDRM/IRRM 150°C 8.5 mA VD = VR = 400 V, peak voltage 150 °C Max. 3.6 mA 1. For both polarities of A2 referenced to A1.
Table 4. Thermal resistance Symbol Parameter Value Unit
Rth(j-c) Junction to case (AC) Max. 0.8 °C/W Rth(j-a) Junction to ambient Typ. 60 °C/W
DS12707
-
Rev 5 page 3/11
Document Outline 1 Characteristics 1.1 Characteristics (curves) 2 Package information 2.1 TO-220AB package information 3 Ordering information Revision history
