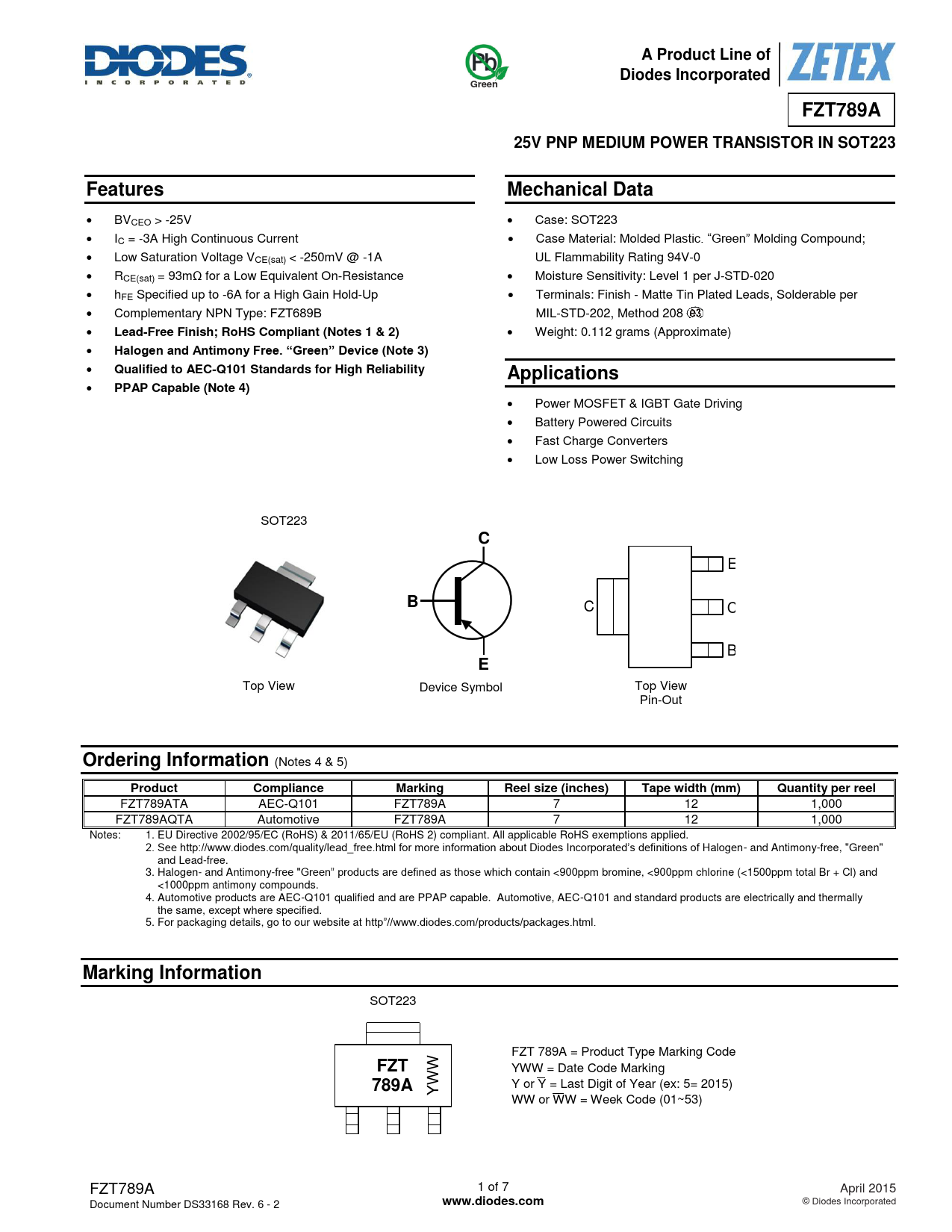

A Product Line ofDiodes IncorporatedGreenFZT789A25V PNP MEDIUM POWER TRANSISTOR IN SOT223FeaturesMechanical Data BVCEO > -25V Case: SOT223 IC = -3A High Continuous Current Case Material: Molded Plastic. “Green” Molding Compound; Low Saturation Voltage VCE(sat) < -250mV @ -1A UL Flammability Rating 94V-0 RCE(sat) = 93mΩ for a Low Equivalent On-Resistance Moisture Sensitivity: Level 1 per J-STD-020 hFE Specified up to -6A for a High Gain Hold-Up Terminals: Finish - Matte Tin Plated Leads, Solderable per Complementary NPN Type: FZT689B MIL-STD-202, Method 208 Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Weight: 0.112 grams (Approximate) Halogen and Antimony Free. “Green” Device (Note 3)Qualified to AEC-Q101 Standards for High ReliabilityApplicationsPPAP Capable (Note 4) Power MOSFET & IGBT Gate Driving Battery Powered Circuits Fast Charge Converters Low Loss Power Switching
SOT223 C E B C C
B E Top View Device Symbol Top View
Pin-Out Ordering Information (Notes 4 & 5) ProductComplianceMarkingReel size (inches)Tape width (mm)Quantity per reel FZT789ATA AEC-Q101 FZT789A 7 12 1,000 FZT789AQTA Automotive FZT789A 7 12 1,000 Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the same, except where specified. 5. For packaging details, go to our website at http”//www.diodes.com/products/packages.html. Marking Information SOT223 FZT 789A = Product Type Marking Code FZT YWW = Date Code Marking 789A YWW Y or Y = Last Digit of Year (ex: 5= 2015) WW or WW = Week Code (01~53)
