Datasheet RV1S9353A (Renesas) - 3

制造商Renesas
描述Optically Isolated Delta-Sigma Modulator
页数 / 页20 / 3 — RV1S9353A. Chapter. Title. MARKING. EXAMPLE. R. Company. Initial. Type. …
文件格式/大小PDF / 1.8 Mb
文件语言英语

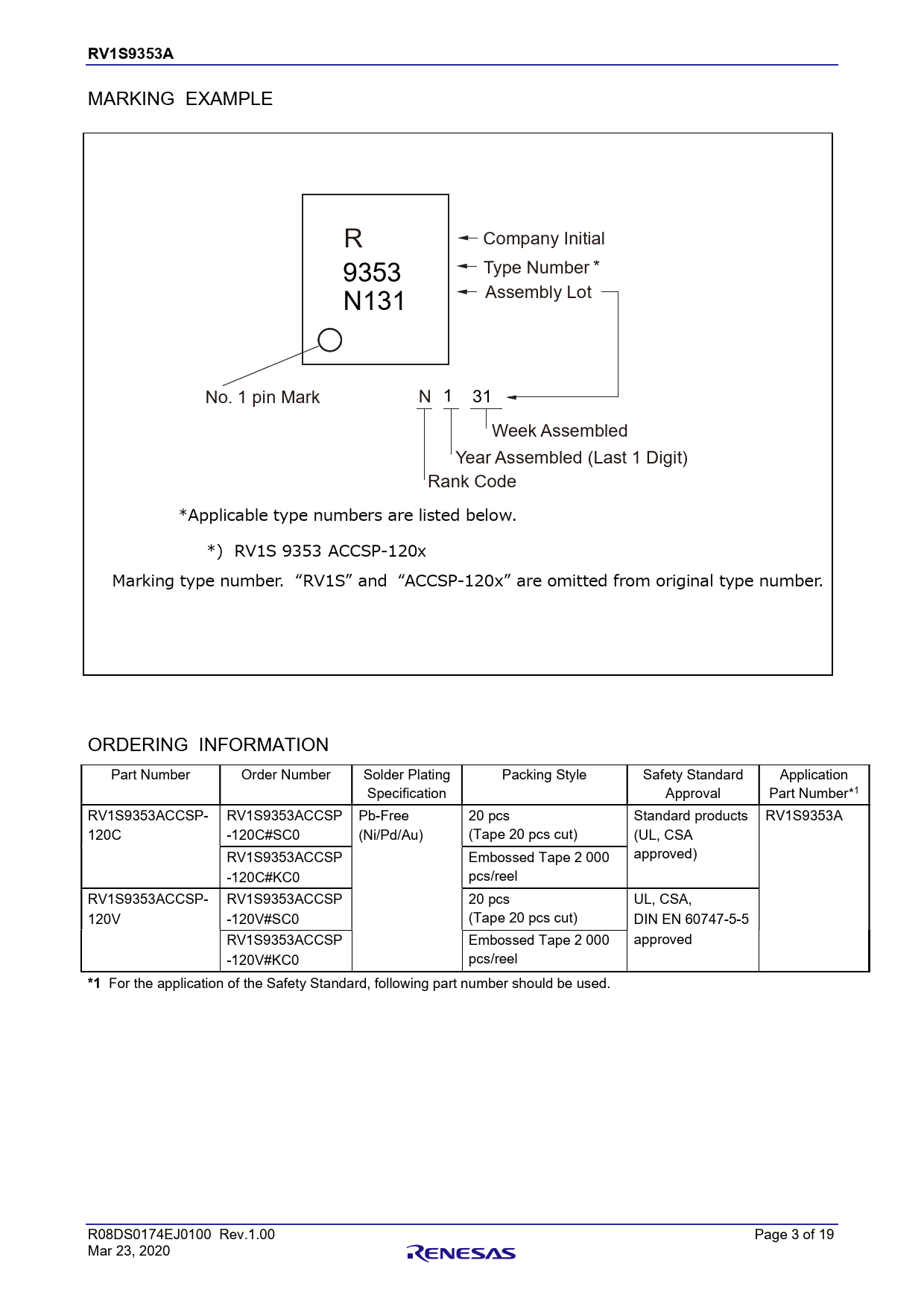

RV1S9353A. Chapter. Title. MARKING. EXAMPLE. R. Company. Initial. Type. Number. *. 9353. Assembly. Lot. N131. No. 1. pin. Mark. N. 1. 31. Week. Assembled. Year

RV1S9353A Chapter Title MARKING EXAMPLE R Company Initial Type Number * 9353 Assembly Lot N131 No 1 pin Mark N 1 31 Week Assembled Year

该数据表的模型线

文件文字版本

RV1S9353A Chapter Title MARKING EXAMPLE R Company Initial Type Number * 9353 Assembly Lot N131 No. 1 pin Mark N 1 31 Week Assembled Year Assembled (Last 1 Digit) Rank Code *Applicable type numbers are listed below. *) RV1S 9353 ACCSP-120x Marking type number. “RV1S” and “ACCSP-120x” are omitted from original type number. ORDERING INFORMATION Part Number Order Number Solder Plating Packing Style Safety Standard Application Specification Approval Part Number*1 RV1S9353ACCSP- RV1S9353ACCSP Pb-Free 20 pcs Standard products RV1S9353A 120C -120C#SC0 (Ni/Pd/Au) (Tape 20 pcs cut) (UL, CSA approved) RV1S9353ACCSP Embossed Tape 2 000 -120C#KC0 pcs/reel RV1S9353ACCSP- RV1S9353ACCSP 20 pcs UL, CSA, 120V -120V#SC0 (Tape 20 pcs cut) DIN EN 60747-5-5 RV1S9353ACCSP Embossed Tape 2 000 approved -120V#KC0 pcs/reel *1 For the application of the Safety Standard, fol owing part number should be used. R08DS0174EJ0100 Rev.1.00 Page 3 of 19 Mar 23, 2020
