描述20V Dual PNP LOW VCE(sat) Transistor
页数 / 页7 / 1 — ZXTP56020FDBQ. 20V DUAL PNP LOW VCE(SAT) TRANSISTOR. Features. Mechanical …
文件格式/大小PDF / 412 Kb
文件语言英语

ZXTP56020FDBQ. 20V DUAL PNP LOW VCE(SAT) TRANSISTOR. Features. Mechanical Data

Datasheet ZXTP56020FDBQ Diodes

该数据表的模型线

文件文字版本

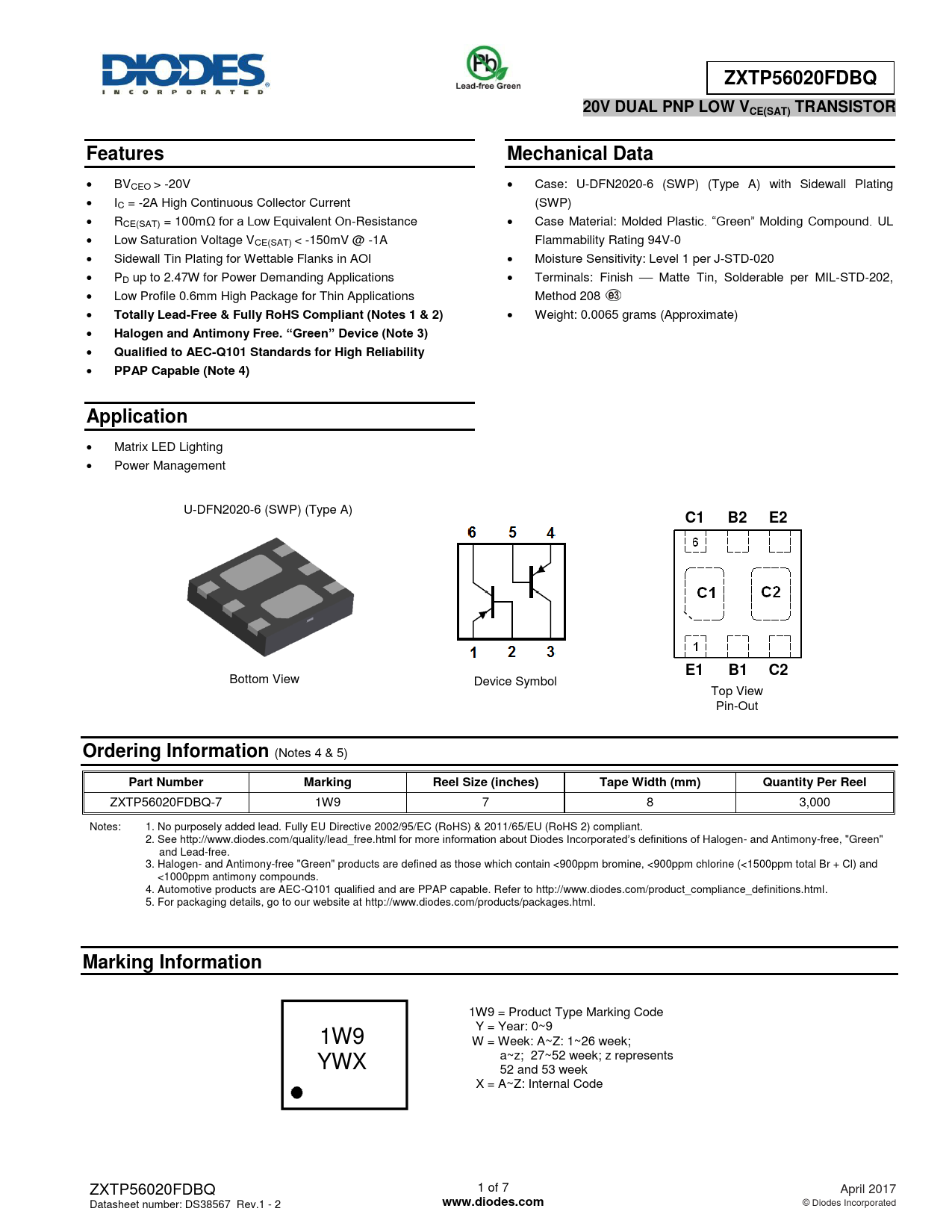

ZXTP56020FDBQ 20V DUAL PNP LOW VCE(SAT) TRANSISTOR Features Mechanical Data
BVCEO > -20V Case: U-DFN2020-6 (SWP) (Type A) with Sidewall Plating IC = -2A High Continuous Collector Current (SWP) RCE(SAT) = 100mΩ for a Low Equivalent On-Resistance Case Material: Molded Plastic. ―Green‖ Molding Compound. UL Low Saturation Voltage VCE(SAT) < -150mV @ -1A

Flammability Rating 94V-0 Sidewall Tin Plating for Wettable Flanks in AOI

Moisture Sensitivity: Level 1 per J-STD-020 PD up to 2.47W for Power Demanding Applications

Terminals: Finish  Matte Tin, Solderable per MIL-STD-202, Low Profile 0.6mm High Package for Thin Applications

Method 208
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Weight: 0.0065 grams (Approximate)
Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4) Application
Matrix LED Lighting Power Management

U-DFN2020-6 (SWP) (Type A)
C1 B2 E2 6 C1 C2 1 E1 B1 C2
Bottom View Device Symbol

Top View

Pin-Out
Ordering Information
(Notes 4 & 5)
Part Number Marking Reel Size (inches) Tape Width (mm) Quantity Per Reel
ZXTP56020FDBQ-7 1W9 7 8 3,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green" products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html. 5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
1W9 = Product Type Marking Code Y = Year: 0~9 1W9 W = Week: A~Z: 1~26 week; a~z; 27~52 week; z represents YWX 52 and 53 week X = A~Z: Internal Code ZXTP56020FDBQ 1 of 7 April 2017 Datasheet number: DS38567 Rev.1 - 2
