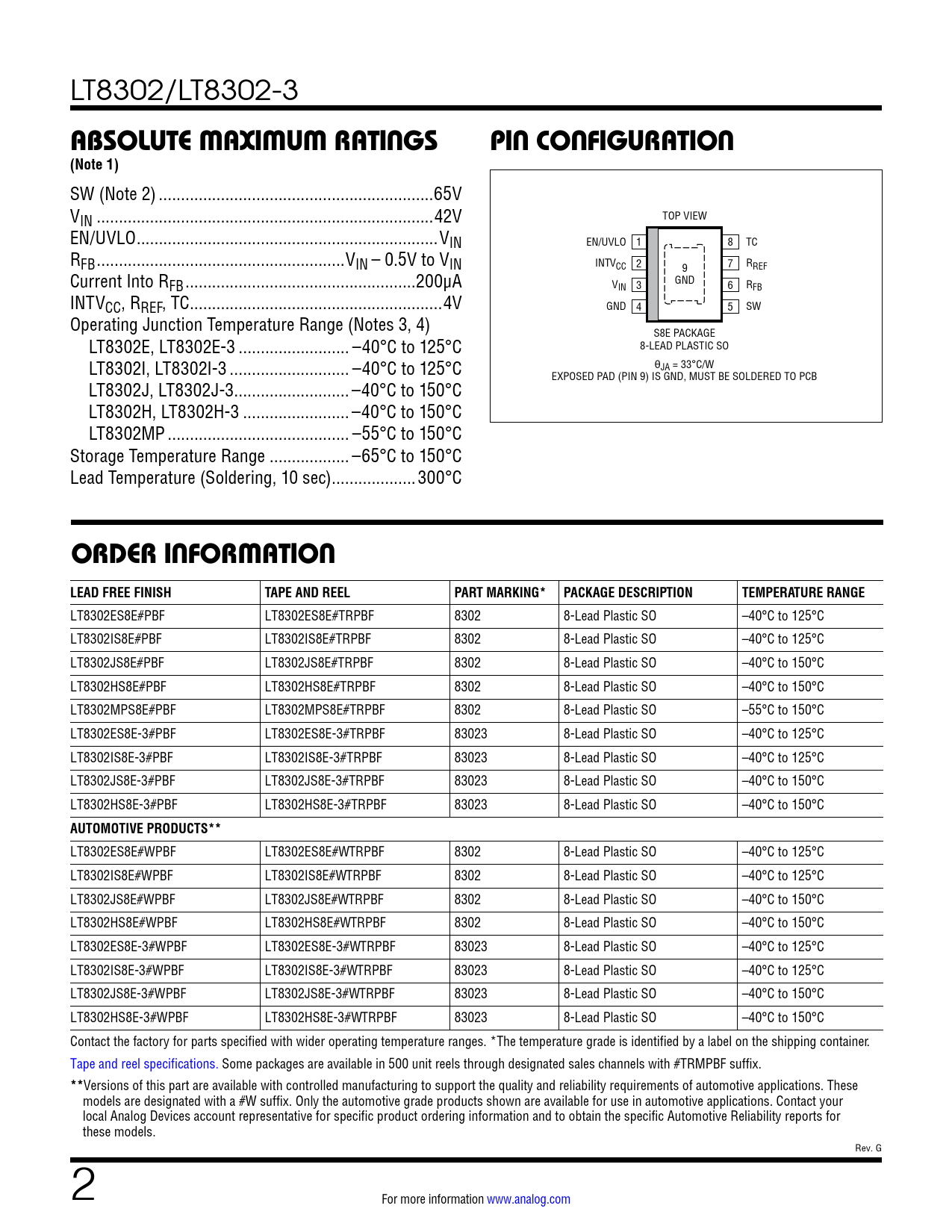

LT8302/LT8302-3
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
SW (Note 2) ..65V VIN ..42V TOP VIEW EN/UVLO ..VIN EN/UVLO 1 8 TC RFB ..VIN – 0.5V to VIN INTVCC 2 7 RREF 9 Current Into RFB ..200µA V GND IN 3 6 RFB INTVCC, RREF, TC ...4V GND 4 5 SW Operating Junction Temperature Range (Notes 3, 4) S8E PACKAGE LT8302E, LT8302E-3 ... –40°C to 125°C 8-LEAD PLASTIC SO LT8302I, LT8302I-3 ... –40°C to 125°C θJA = 33°C/W EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO PCB LT8302J, LT8302J-3 .. –40°C to 150°C LT8302H, LT8302H-3 .. –40°C to 150°C LT8302MP ... –55°C to 150°C Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT8302ES8E#PBF LT8302ES8E#TRPBF 8302 8-Lead Plastic SO –40°C to 125°C LT8302IS8E#PBF LT8302IS8E#TRPBF 8302 8-Lead Plastic SO –40°C to 125°C LT8302JS8E#PBF LT8302JS8E#TRPBF 8302 8-Lead Plastic SO –40°C to 150°C LT8302HS8E#PBF LT8302HS8E#TRPBF 8302 8-Lead Plastic SO –40°C to 150°C LT8302MPS8E#PBF LT8302MPS8E#TRPBF 8302 8-Lead Plastic SO –55°C to 150°C LT8302ES8E-3#PBF LT8302ES8E-3#TRPBF 83023 8-Lead Plastic SO –40°C to 125°C LT8302IS8E-3#PBF LT8302IS8E-3#TRPBF 83023 8-Lead Plastic SO –40°C to 125°C LT8302JS8E-3#PBF LT8302JS8E-3#TRPBF 83023 8-Lead Plastic SO –40°C to 150°C LT8302HS8E-3#PBF LT8302HS8E-3#TRPBF 83023 8-Lead Plastic SO –40°C to 150°C
AUTOMOTIVE PRODUCTS**
LT8302ES8E#WPBF LT8302ES8E#WTRPBF 8302 8-Lead Plastic SO –40°C to 125°C LT8302IS8E#WPBF LT8302IS8E#WTRPBF 8302 8-Lead Plastic SO –40°C to 125°C LT8302JS8E#WPBF LT8302JS8E#WTRPBF 8302 8-Lead Plastic SO –40°C to 150°C LT8302HS8E#WPBF LT8302HS8E#WTRPBF 8302 8-Lead Plastic SO –40°C to 150°C LT8302ES8E-3#WPBF LT8302ES8E-3#WTRPBF 83023 8-Lead Plastic SO –40°C to 125°C LT8302IS8E-3#WPBF LT8302IS8E-3#WTRPBF 83023 8-Lead Plastic SO –40°C to 125°C LT8302JS8E-3#WPBF LT8302JS8E-3#WTRPBF 83023 8-Lead Plastic SO –40°C to 150°C LT8302HS8E-3#WPBF LT8302HS8E-3#WTRPBF 83023 8-Lead Plastic SO –40°C to 150°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Rev. G 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Typical Application Related Parts
