页数 / 页207 / 10 — KSZ9897S. TABLE 3-1:. PIN ASSIGNMENTS. Pin. Pin Name. TXRX1P_A. AVDDH. …
文件格式/大小PDF / 1.4 Mb
文件语言英语

KSZ9897S. TABLE 3-1:. PIN ASSIGNMENTS. Pin. Pin Name. TXRX1P_A. AVDDH. RXD6_0 (Note 3-1). SDO. TXRX1M_A. TXRX4P_A. DVDDL. SDI/SDA/MDIO. AVDDL

KSZ9897S TABLE 3-1: PIN ASSIGNMENTS Pin Pin Name TXRX1P_A AVDDH RXD6_0 (Note 3-1) SDO TXRX1M_A TXRX4P_A DVDDL SDI/SDA/MDIO AVDDL

该数据表的模型线

文件文字版本

link to page 16 link to page 16 link to page 16 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10

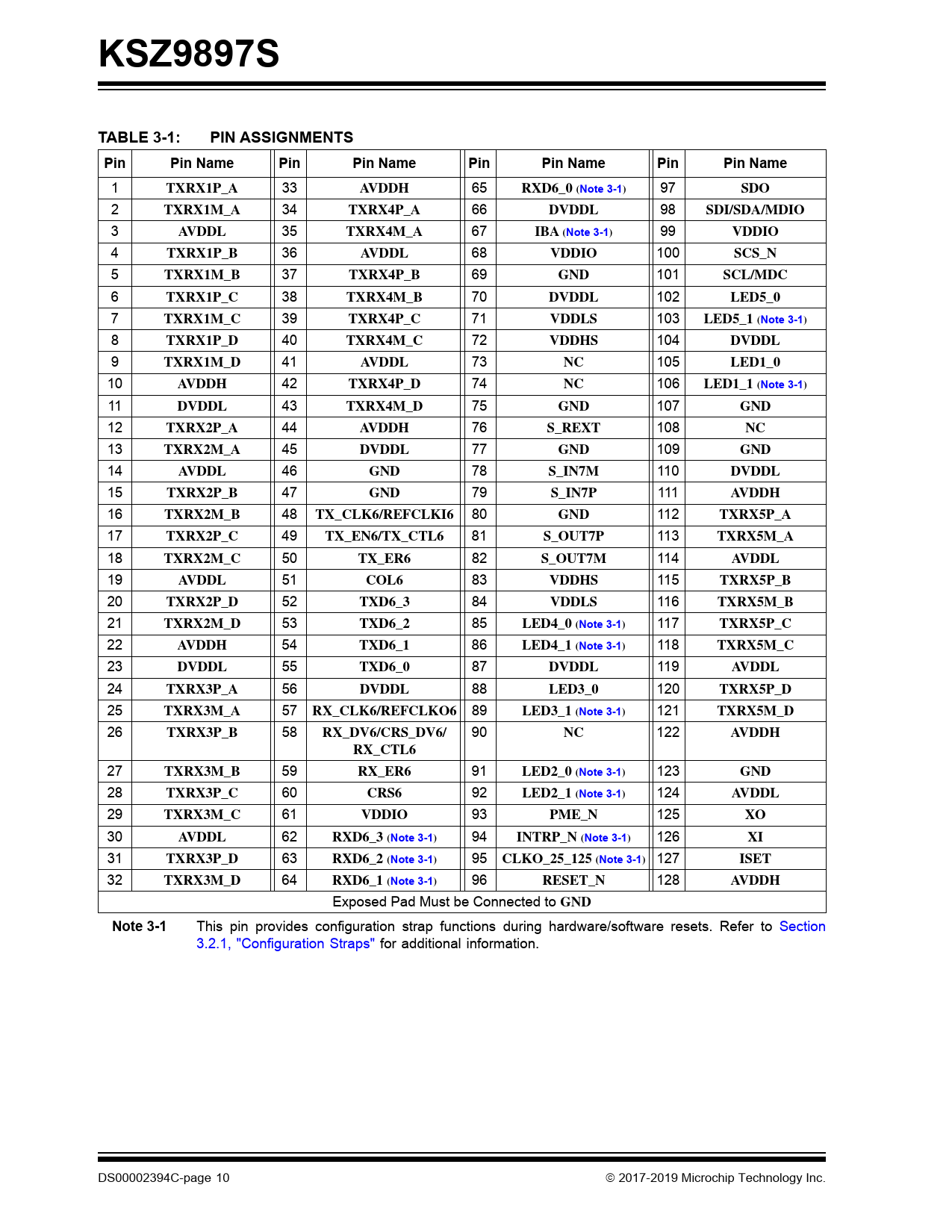

KSZ9897S TABLE 3-1: PIN ASSIGNMENTS Pin Pin Name Pin Pin Name Pin Pin Name Pin Pin Name
1
TXRX1P_A
33
AVDDH
65
RXD6_0 (Note 3-1)
97
SDO
2
TXRX1M_A
34
TXRX4P_A
66
DVDDL
98
SDI/SDA/MDIO
3
AVDDL
35
TXRX4M_A
67
IBA (Note 3-1 )
99
VDDIO
4
TXRX1P_B
36
AVDDL
68
VDDIO
100
SCS_N
5
TXRX1M_B
37
TXRX4P_B
69
GND
101
SCL/MDC
6
TXRX1P_C
38
TXRX4M_B
70
DVDDL
102
LED5_0
7
TXRX1M_C
39
TXRX4P_C
71
VDDLS
103
LED5_1 (Note 3-1)
8
TXRX1P_D
40
TXRX4M_C
72
VDDHS
104
DVDDL
9
TXRX1M_D
41
AVDDL
73
NC
105
LED1_0
10
AVDDH
42
TXRX4P_D
74
NC
106
LED1_1 (Note 3-1)
11
DVDDL
43
TXRX4M_D
75
GND
107
GND
12
TXRX2P_A
44
AVDDH
76
S_REXT
108
NC
13
TXRX2M_A
45
DVDDL
77
GND
109
GND
14
AVDDL
46
GND
78
S_IN7M
110
DVDDL
15
TXRX2P_B
47
GND
79
S_IN7P
111
AVDDH
16
TXRX2M_B
48
TX_CLK6/REFCLKI6
80
GND
112
TXRX5P_A
17
TXRX2P_C
49
TX_EN6/TX_CTL6
81
S_OUT7P
113
TXRX5M_A
18
TXRX2M_C
50
TX_ER6
82
S_OUT7M
114
AVDDL
19
AVDDL
51
COL6
83
VDDHS
115
TXRX5P_B
20
TXRX2P_D
52
TXD6_3
84
VDDLS
116
TXRX5M_B
21
TXRX2M_D
53
TXD6_2
85
LED4_0 (Note 3-1)
117
TXRX5P_C
22
AVDDH
54
TXD6_1
86
LED4_1 (Note 3-1)
118
TXRX5M_C
23
DVDDL
55
TXD6_0
87
DVDDL
119
AVDDL
24
TXRX3P_A
56
DVDDL
88
LED3_0
120
TXRX5P_D
25
TXRX3M_A
57
RX_CLK6/REFCLKO6
89
LED3_1 (Note 3-1)
121
TXRX5M_D
26
TXRX3P_B
58
RX_DV6/CRS_DV6/
90
NC
122
AVDDH RX_CTL6
27
TXRX3M_B
59
RX_ER6
91
LED2_0 (Note 3-1)
123
GND
28
TXRX3P_C
60
CRS6
92
LED2_1 (Note 3-1)
124
AVDDL
29
TXRX3M_C
61
VDDIO
93
PME_N
125
XO
30
AVDDL
62
RXD6_3 (Note 3-1)
94
INTRP_N (Note 3-1)
126
XI
31
TXRX3P_D
63
RXD6_2 (Note 3-1)
95
CLKO_25_125 (Note 3-1 )
127
ISET
32
TXRX3M_D
64
RXD6_1 (Note 3-1)
96
RESET_N
128
AVDDH
Exposed Pad Must be Connected to
GND Note 3-1
