Datasheet ADA4622-1, ADA4622-2, ADA4622-4 (Analog Devices) - 37
| 制造商 | Analog Devices |
| 描述 | 30 V, 8 MHz, Low Bias Current, Single-Supply, RRO, Precision Quad Op Amp |
| 页数 / 页 | 38 / 37 — Data Sheet. ADA4622-1/. ADA4622-2/. ADA4622-4. DETAIL A. (JEDEC 95). … |
| 修订版 | E |
| 文件格式/大小 | PDF / 3.0 Mb |
| 文件语言 | 英语 |

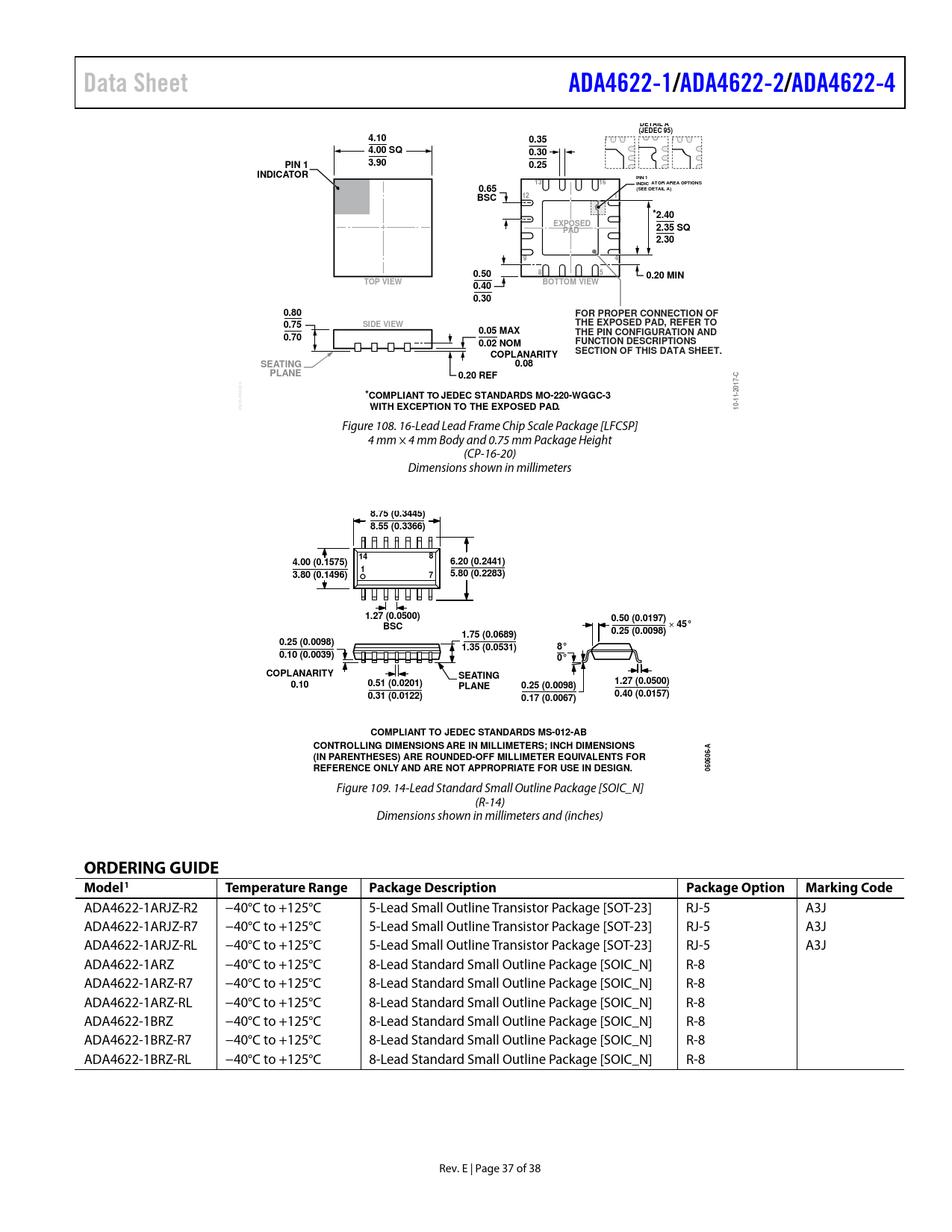

Data Sheet. ADA4622-1/. ADA4622-2/. ADA4622-4. DETAIL A. (JEDEC 95). 4.10. 0.35. 4.00 SQ. 0.30. 3.90. PIN 1. 0.25. INDICATOR
该数据表的模型线
- ADA4622-1ARJZ-R2 ADA4622-1ARJZ-R7 ADA4622-1ARJZ-RL ADA4622-1ARZ ADA4622-1ARZ-R7 ADA4622-1ARZ-RL ADA4622-1BRZ ADA4622-1BRZ-R7 ADA4622-1BRZ-RL
文件文字版本
link to page 38
Data Sheet ADA4622-1/ ADA4622-2/ ADA4622-4 DETAIL A (JEDEC 95) 4.10 0.35 4.00 SQ 0.30 3.90 PIN 1 0.25 INDICATOR PIN 1 13 16 INDIC ATOR AREA OPTIONS 0.65 (SEE DETAIL A) 12 1 BSC *2.40 EXPOSED 2.35 SQ PAD 2.30 9 4 8 5 0.50 0.20 MIN TOP VIEW 0.40 BOTTOM VIEW 0.30 0.80 FOR PROPER CONNECTION OF 0.75 SIDE VIEW THE EXPOSED PAD, REFER TO 0.05 MAX THE PIN CONFIGURATION AND 0.70 0.02 NOM FUNCTION DESCRIPTIONS COPLANARITY SECTION OF THIS DATA SHEET. SEATING 0.08 PLANE 0.20 REF C * 2017- -004024 COMPLIANT TO JEDEC STANDARDS MO-220-WGGC-3 1- 1 G K P WITH EXCEPTION TO THE EXPOSED PAD. 10-
Figure 108. 16-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm Body and 0.75 mm Package Height (CP-16-20) Dimensions shown in millimeters
8.75 (0.3445) 8.55 (0.3366) 14 8 4.00 (0.1575) 6.20 (0.2441) 1 3.80 (0.1496) 7 5.80 (0.2283) 1.27 (0.0500) 0.50 (0.0197) BSC 45° 1.75 (0.0689) 0.25 (0.0098) 0.25 (0.0098) 1.35 (0.0531) 8° 0.10 (0.0039) 0° COPLANARITY SEATING 0.10 0.51 (0.0201) 1.27 (0.0500) PLANE 0.25 (0.0098) 0.31 (0.0122) 0.40 (0.0157) 0.17 (0.0067) COMPLIANT TO JEDEC STANDARDS MS-012-AB CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS A (IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 060606-
Figure 109. 14-Lead Standard Small Outline Package [SOIC_N] (R-14) Dimensions shown in millimeters and (inches)
ORDERING GUIDE Model1 Temperature Range Package Description Package Option Marking Code
ADA4622-1ARJZ-R2 −40°C to +125°C 5-Lead Small Outline Transistor Package [SOT-23] RJ-5 A3J ADA4622-1ARJZ-R7 −40°C to +125°C 5-Lead Small Outline Transistor Package [SOT-23] RJ-5 A3J ADA4622-1ARJZ-RL −40°C to +125°C 5-Lead Small Outline Transistor Package [SOT-23] RJ-5 A3J ADA4622-1ARZ −40°C to +125°C 8-Lead Standard Small Outline Package [SOIC_N] R-8 ADA4622-1ARZ-R7 −40°C to +125°C 8-Lead Standard Small Outline Package [SOIC_N] R-8 ADA4622-1ARZ-RL −40°C to +125°C 8-Lead Standard Small Outline Package [SOIC_N] R-8 ADA4622-1BRZ −40°C to +125°C 8-Lead Standard Small Outline Package [SOIC_N] R-8 ADA4622-1BRZ-R7 −40°C to +125°C 8-Lead Standard Small Outline Package [SOIC_N] R-8 ADA4622-1BRZ-RL −40°C to +125°C 8-Lead Standard Small Outline Package [SOIC_N] R-8 Rev. E | Page 37 of 38 Document Outline Features Applications Pin Configuration General Description Table of Contents Revision History Specifications Electrical Characteristics, VSY = ±15 V Electrical Characteristics, VSY = ±5 V Electrical Characteristics, VSY = 5 V Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Theory Of Operation Input Characteristics Input Overvoltage Protection EMI Rejection Ratio Output Characteristics Capacitive Load Drive Capability Shutdown Operation Applications Information Recommended Power Solution Maximum Power Dissipation Second-Order Low-Pass Filter Wideband Photodiode Preamplifier Peak Detector Multiplexing Inputs Full Wave Rectifier Outline Dimensions Ordering Guide
