Zero-Drift, Single-Supply, Rail-to-Rail I/O. Quad, Operational Amplifier. Enhanced Product. AD8574-EP. FEATURES

Datasheet AD8574-EP Analog Devices, 修订版: A

该数据表的模型线

文件文字版本

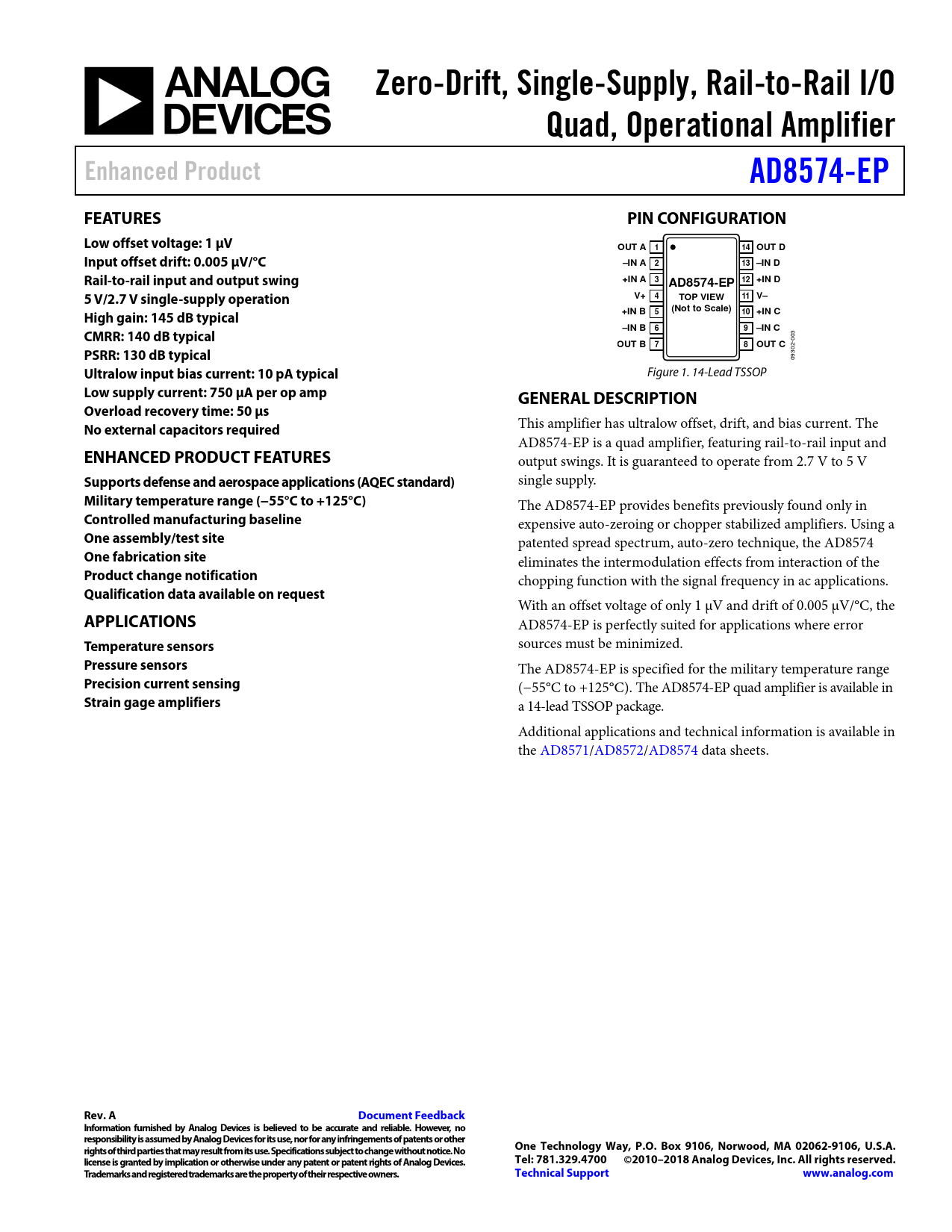

Zero-Drift, Single-Supply, Rail-to-Rail I/O Quad, Operational Amplifier Enhanced Product AD8574-EP FEATURES PIN CONFIGURATION Low offset voltage: 1 μV OUT A 1 14 OUT D Input offset drift: 0.005 μV/°C –IN A 2 13 –IN D Rail-to-rail input and output swing +IN A 3 12 +IN D AD8574-EP 5 V/2.7 V single-supply operation V+ 4 11 TOP VIEW V– +IN B (Not to Scale) 5 10 +IN C High gain: 145 dB typical –IN B 6 9 –IN C CMRR: 140 dB typical
3 0
OUT B
-0
7 8 OUT C
2
PSRR: 130 dB typical
30 09
Ultralow input bias current: 10 pA typical
Figure 1. 14-Lead TSSOP
Low supply current: 750 μA per op amp GENERAL DESCRIPTION Overload recovery time: 50 μs
This amplifier has ultralow offset, drift, and bias current. The
No external capacitors required
AD8574-EP is a quad amplifier, featuring rail-to-rail input and
ENHANCED PRODUCT FEATURES
output swings. It is guaranteed to operate from 2.7 V to 5 V
Supports defense and aerospace applications (AQEC standard)
single supply.
Military temperature range (−55°C to +125°C)
The AD8574-EP provides benefits previously found only in
Controlled manufacturing baseline
expensive auto-zeroing or chopper stabilized amplifiers. Using a
One assembly/test site
patented spread spectrum, auto-zero technique, the AD8574
One fabrication site
eliminates the intermodulation effects from interaction of the
Product change notification
chopping function with the signal frequency in ac applications.
Qualification data available on request
With an offset voltage of only 1 μV and drift of 0.005 μV/°C, the
APPLICATIONS
AD8574-EP is perfectly suited for applications where error
Temperature sensors
sources must be minimized.
Pressure sensors
The AD8574-EP is specified for the military temperature range
Precision current sensing
(−55°C to +125°C). The AD8574-EP quad amplifier is available in
Strain gage amplifiers
a 14-lead TSSOP package. Additional applications and technical information is available in the AD8571/AD8572/AD8574 data sheets.
Rev. A Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2010–2018 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
