Datasheet Addendum XFP236312.500000I (IDT)
| 制造商 | IDT |
| 描述 | 150fs Small Package Quartz-based PLL Oscillator |
| 页数 / 页 | 2 / 1 — 312.500000MHz Crystal. XFP236312.500000I. Oscillator. Datasheet Addendum. … |
| 修订版 | 20181207 |
| 文件格式/大小 | PDF / 34 Kb |
| 文件语言 | 英语 |
312.500000MHz Crystal. XFP236312.500000I. Oscillator. Datasheet Addendum. General Configuration. Parameter. Value. Pin Assignments
该数据表的模型线
文件文字版本
312.500000MHz Crystal XFP236312.500000I Oscillator Datasheet Addendum General Configuration Parameter Value

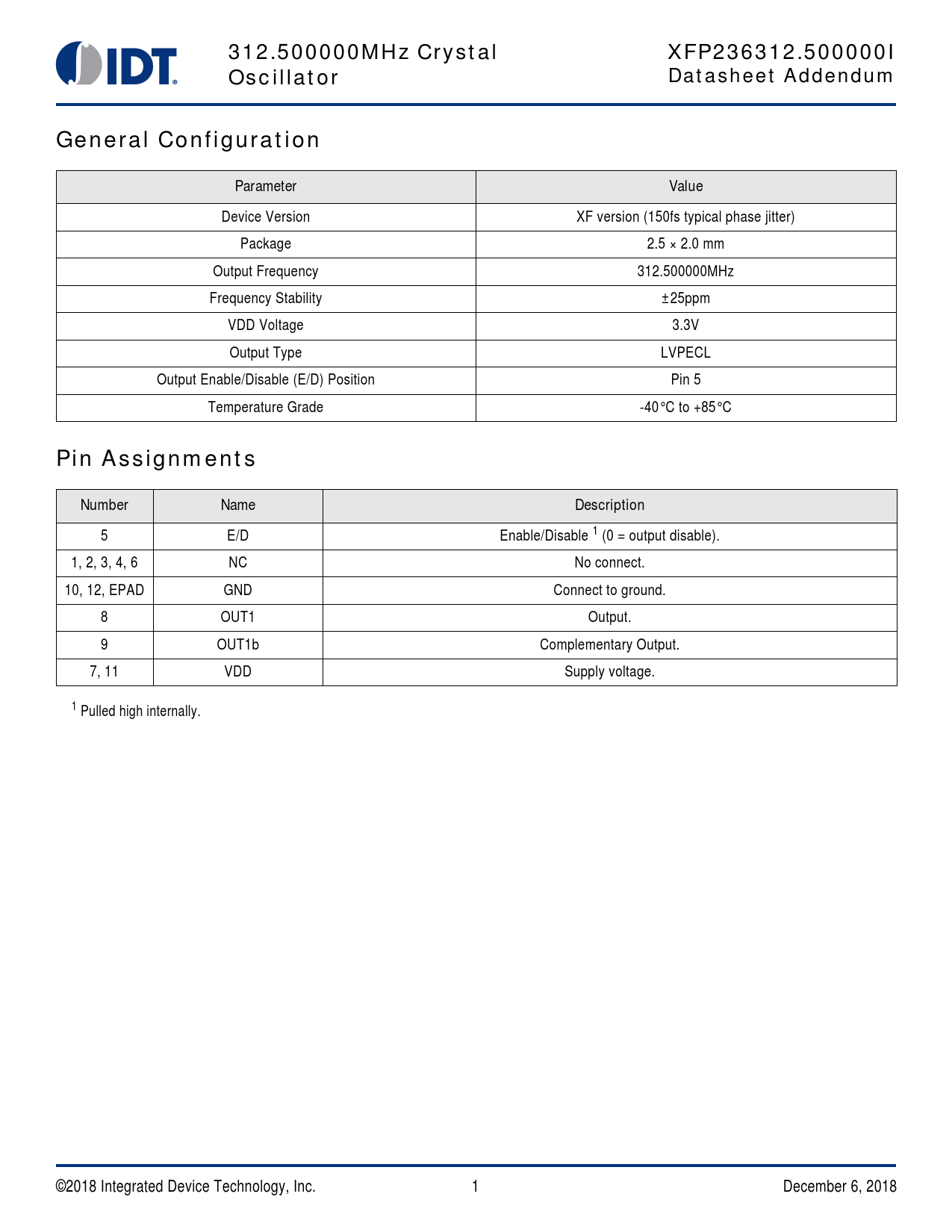

Device Version XF version (150fs typical phase jitter) Package 2.5 × 2.0 mm Output Frequency 312.500000MHz Frequency Stability ±25ppm VDD Voltage 3.3V Output Type LVPECL Output Enable/Disable (E/D) Position Pin 5 Temperature Grade -40°C to +85°C
Pin Assignments Number Name Description
5 E/D Enable/Disable 1 (0 = output disable). 1, 2, 3, 4, 6 NC No connect. 10, 12, EPAD GND Connect to ground. 8 OUT1 Output. 9 OUT1b Complementary Output. 7, 11 VDD Supply voltage. 1 Pulled high internally. ©2018 Integrated Device Technology, Inc. 1 December 6, 2018 Document Outline General Configuration Pin Assignments Revision History
Device Version XF version (150fs typical phase jitter) Package 2.5 × 2.0 mm Output Frequency 312.500000MHz Frequency Stability ±25ppm VDD Voltage 3.3V Output Type LVPECL Output Enable/Disable (E/D) Position Pin 5 Temperature Grade -40°C to +85°C
Pin Assignments Number Name Description
5 E/D Enable/Disable 1 (0 = output disable). 1, 2, 3, 4, 6 NC No connect. 10, 12, EPAD GND Connect to ground. 8 OUT1 Output. 9 OUT1b Complementary Output. 7, 11 VDD Supply voltage. 1 Pulled high internally. ©2018 Integrated Device Technology, Inc. 1 December 6, 2018 Document Outline General Configuration Pin Assignments Revision History
