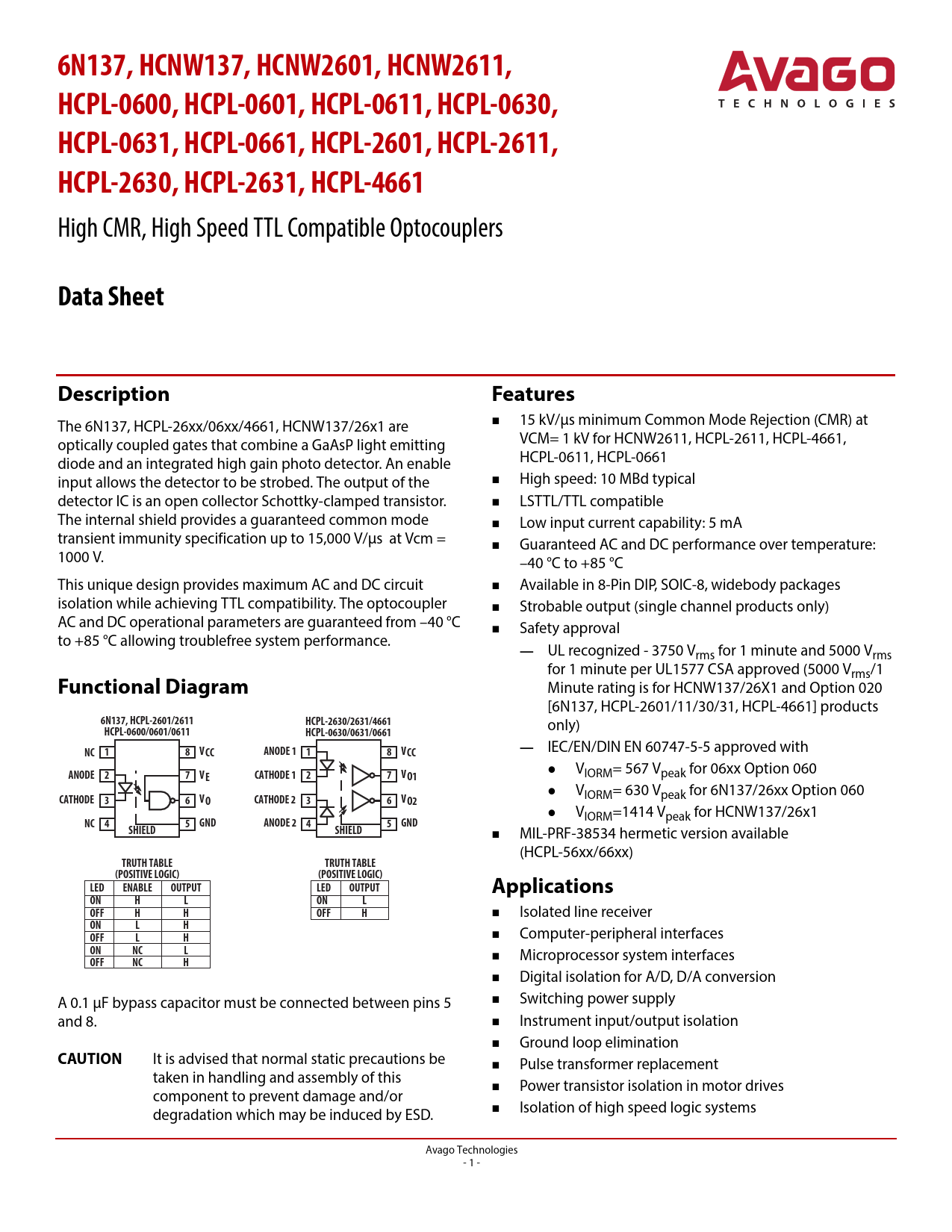

6N137, HCNW137, HCNW2601, HCNW2611, HCPL-0600, HCPL-0601, HCPL-0611, HCPL-0630, HCPL-0631, HCPL-0661, HCPL-2601, HCPL-2611, HCPL-2630, HCPL-2631, HCPL-4661
High CMR, High Speed TTL Compatible Optocouplers
Data Sheet Description Features
The 6N137, HCPL-26xx/06xx/4661, HCNW137/26x1 are 15 kV/μs minimum Common Mode Rejection (CMR) at optically coupled gates that combine a GaAsP light emitting VCM= 1 kV for HCNW2611, HCPL-2611, HCPL-4661, diode and an integrated high gain photo detector. An enable HCPL-0611, HCPL-0661 input allows the detector to be strobed. The output of the High speed: 10 MBd typical detector IC is an open collector Schottky-clamped transistor. LSTTL/TTL compatible The internal shield provides a guaranteed common mode Low input current capability: 5 mA transient immunity specification up to 15,000 V/μs at Vcm = Guaranteed AC and DC performance over temperature: 1000 V. –40 °C to +85 °C This unique design provides maximum AC and DC circuit Available in 8-Pin DIP, SOIC-8, widebody packages isolation while achieving TTL compatibility. The optocoupler Strobable output (single channel products only) AC and DC operational parameters are guaranteed from –40 °C Safety approval to +85 °C allowing troublefree system performance.

UL recognized - 3750 Vrms for 1 minute and 5000 Vrms for 1 minute per UL1577 CSA approved (5000 Vrms/1
Functional Diagram
Minute rating is for HCNW137/26X1 and Option 020 [6N137, HCPL-2601/11/30/31, HCPL-4661] products
6N137, HCPL-2601/2611 HCPL-2630/2631/4661
only)
HCPL-0600/0601/0611 HCPL-0630/0631/0661
IEC/EN/DIN EN 60747-5-5 approved with
NC 1 8 VCC ANODE 1 1 8 VCC
V
ANODE 2 7 V CATHODE 1 2 7
IORM= 567 Vpeak for 06xx Option 060
E VO1
VIORM= 630 Vpeak for 6N137/26xx Option 060
CATHODE 3 6 VO CATHODE 2 3 6 VO2
VIORM=1414 Vpeak for HCNW137/26x1
NC 4 5 GND ANODE 2 4 5 GND SHIELD SHIELD
MIL-PRF-38534 hermetic version available (HCPL-56xx/66xx)
TRUTH TABLE TRUTH TABLE (POSITIVE LOGIC) (POSITIVE LOGIC) LED ENABLE OUTPUT LED OUTPUT Applications ON H L ON L OFF H H OFF H
Isolated line receiver
ON L H
Computer-peripheral interfaces
OFF L H ON NC L
Microprocessor system interfaces
OFF NC H
Digital isolation for A/D, D/A conversion A 0.1 μF bypass capacitor must be connected between pins 5 Switching power supply and 8. Instrument input/output isolation Ground loop elimination
CAUTION
It is advised that normal static precautions be Pulse transformer replacement taken in handling and assembly of this Power transistor isolation in motor drives component to prevent damage and/or Isolation of high speed logic systems degradation which may be induced by ESD. Avago Technologies - 1 - Document Outline High CMR, High Speed TTL Compatible Optocouplers Description Functional Diagram Features Applications Selection Guide Ordering Information Schematic Package Outline Drawings 8-pin DIP Package (6N137, HCPL-2601/11/30/31, HCPL-4661) 8-pin DIP Package with Gull Wing Surface Mount Option 300 (6N137, HCPL-2601/11/30/31, HCPL-4661) Small-Outline SO-8 Package (HCPL-0600/01/11/30/31/61) 8-Pin Widebody DIP Package (HCNW137, HCNW2601/11) 8-Pin Widebody DIP Package with Gull Wing Surface Mount Option 300 (HCNW137, HCNW2601/11) Reflow Soldering Profile Regulatory Information Insulation and Safety Related Specifications IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (HCPL-06xx Option 060 Only) IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (HCPL-26xx; 46xx; 6N13x Option 060 Only) IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (HCNW137/2601/2611 Only) Absolute Maximum Ratings (No Derating Required up to 85 °C) Recommended Operating Conditions Electrical Specifications Switching Specifications (AC) Package Characteristics Propagation Delay, Pulse-Width Distortion and Propagation Delay Skew
