Datasheet AD8574 (Analog Devices) - 3

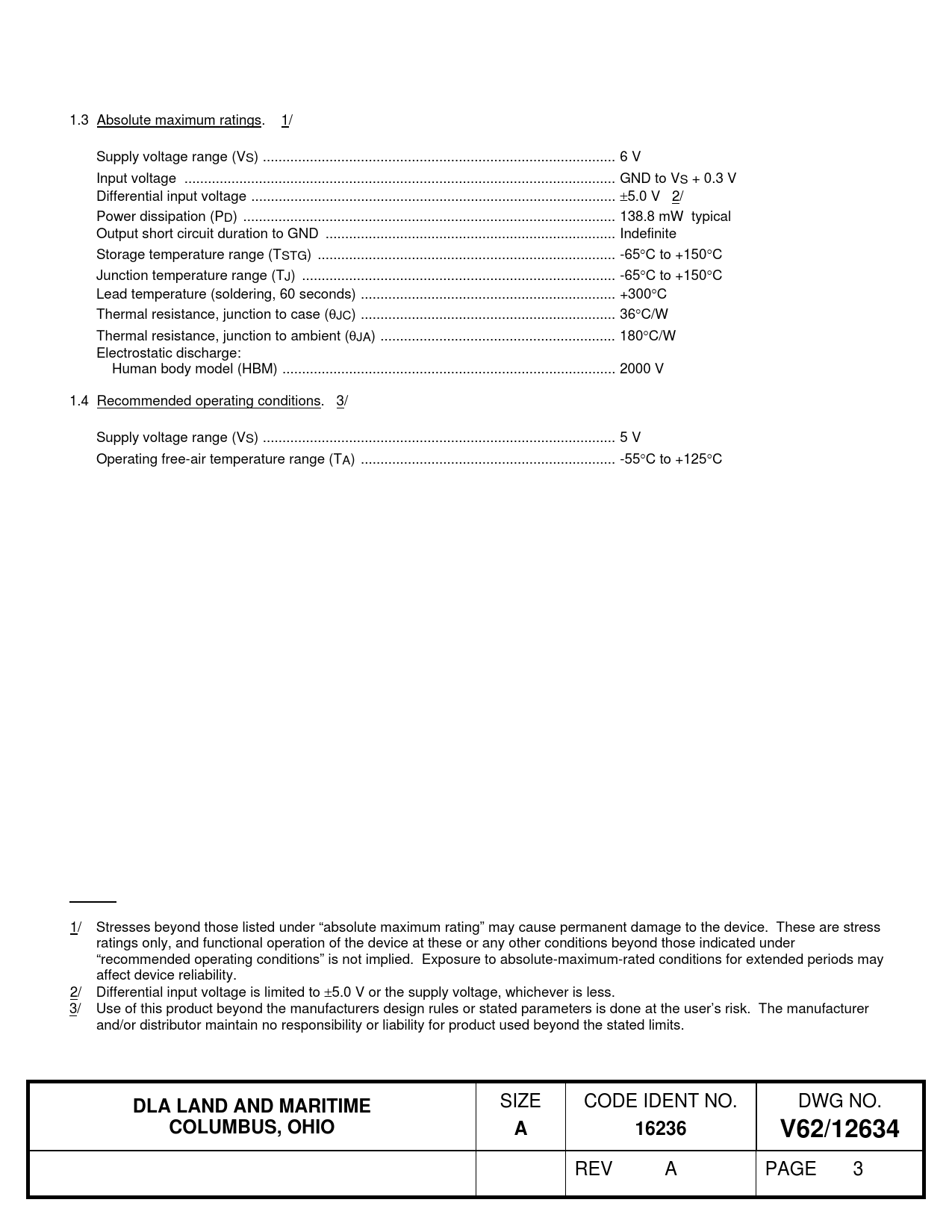

1.3 Absolute maximum ratings. 1/ Supply voltage range (VS) .. 6 V Input voltage .. GND to VS + 0.3 V Differential input voltage ... 5.0 V 2/ Power dissipation (PD) ... 138.8 mW typical Output short circuit duration to GND .. Indefinite Storage temperature range (TSTG) .. -65C to +150C Junction temperature range (TJ) .. -65C to +150C Lead temperature (soldering, 60 seconds) ... +300C Thermal resistance, junction to case (JC) ... 36C/W Thermal resistance, junction to ambient (JA) .. 180C/W Electrostatic discharge: Human body model (HBM) ... 2000 V 1.4 Recommended operating conditions. 3/ Supply voltage range (VS) .. 5 V Operating free-air temperature range (TA) ... -55C to +125C 1/ Stresses beyond those listed under “absolute maximum rating” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. 2/ Differential input voltage is limited to 5.0 V or the supply voltage, whichever is less. 3/ Use of this product beyond the manufacturers design rules or stated parameters is done at the user’s risk. The manufacturer and/or distributor maintain no responsibility or liability for product used beyond the stated limits.
DLA LAND AND MARITIME
SIZE

CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/12634
REV A PAGE 3
