Datasheet Si4490DY (Vishay) - 6
| 制造商 | Vishay |
| 描述 | N-Channel 200-V (D-S) MOSFET |
| 页数 / 页 | 7 / 6 — Application Note 826. RECOMMENDED MINIMUM PADS FOR SO-8 |
| 文件格式/大小 | PDF / 166 Kb |
| 文件语言 | 英语 |
Application Note 826. RECOMMENDED MINIMUM PADS FOR SO-8
该数据表的模型线
文件文字版本

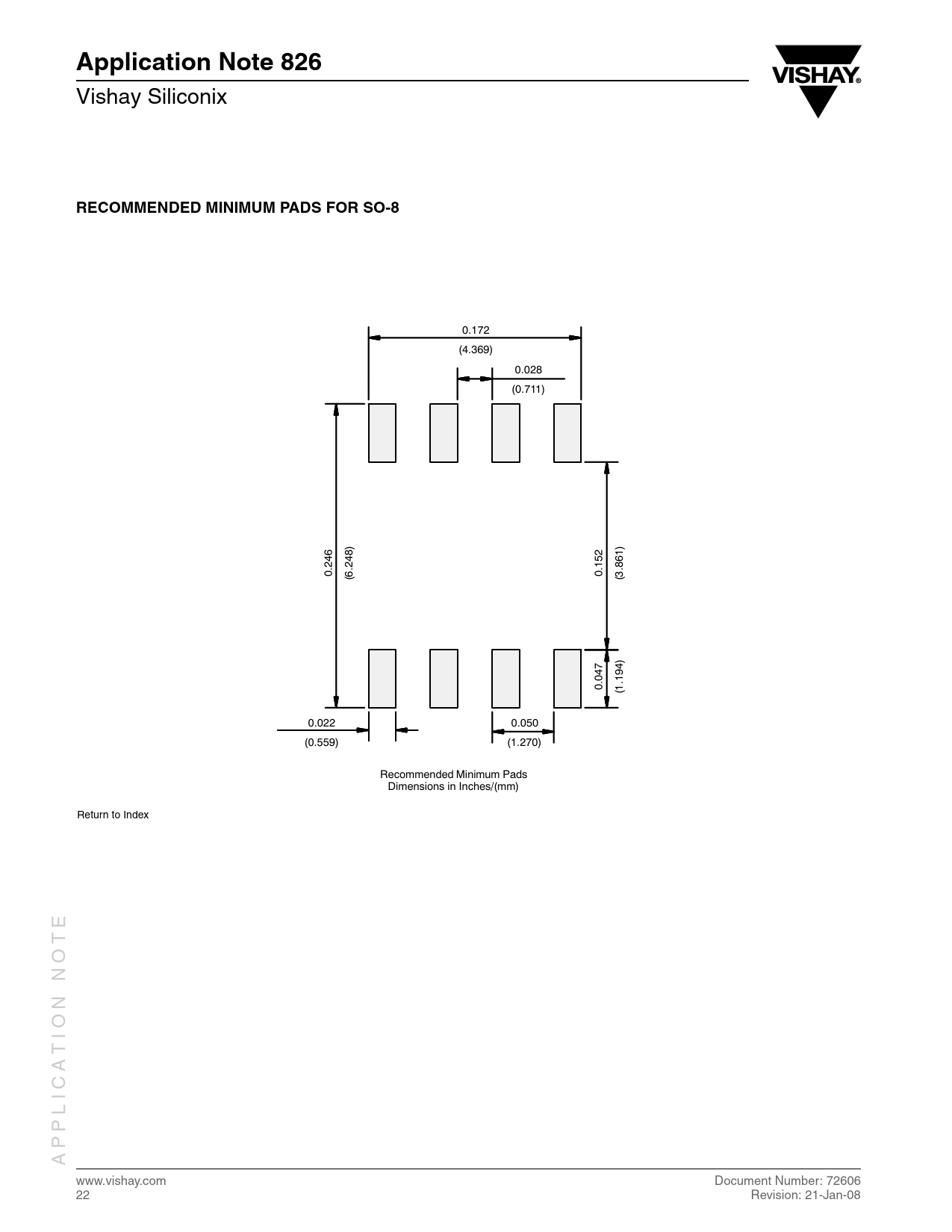

Application Note 826
Vishay Siliconix
RECOMMENDED MINIMUM PADS FOR SO-8
0.172 (4.369) 0.028 (0.711) 0.246 (6.248) 0.152 (3.861) 0.047 (1.194) 0.022 0.050 (0.559) (1.270) Recommended Minimum Pads Dimensions in Inches/(mm) Return to Index Return to Index ICATION NOTE APPL www.vishay.com Document Number: 72606 22 Revision: 21-Jan-08
Vishay Siliconix
RECOMMENDED MINIMUM PADS FOR SO-8
0.172 (4.369) 0.028 (0.711) 0.246 (6.248) 0.152 (3.861) 0.047 (1.194) 0.022 0.050 (0.559) (1.270) Recommended Minimum Pads Dimensions in Inches/(mm) Return to Index Return to Index ICATION NOTE APPL www.vishay.com Document Number: 72606 22 Revision: 21-Jan-08
