ADXRS623. ABSOLUTE MAXIMUM RATINGS Table 2. RATE-SENSITIVE AXIS. Parameter. Rating. RATE AXIS. RATE OUT. VCC = 5V. LONGITUDINAL. 4.75V

ADXRS623 ABSOLUTE MAXIMUM RATINGS Table 2 RATE-SENSITIVE AXIS Parameter Rating RATE AXIS RATE OUT VCC = 5V LONGITUDINAL 4.75V

该数据表的模型线

文件文字版本

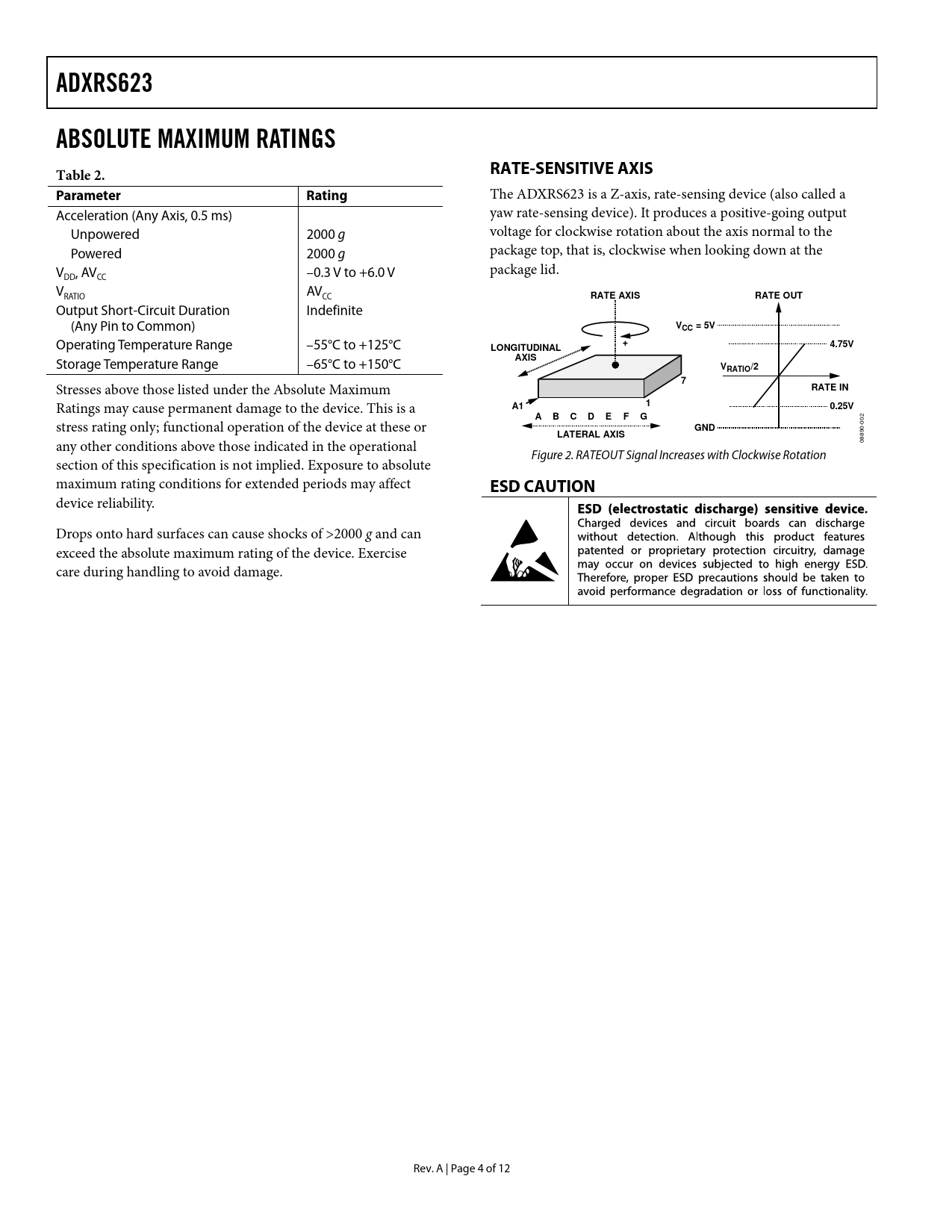

ADXRS623 ABSOLUTE MAXIMUM RATINGS Table 2. RATE-SENSITIVE AXIS Parameter Rating
The ADXRS623 is a Z-axis, rate-sensing device (also called a Acceleration (Any Axis, 0.5 ms) yaw rate-sensing device). It produces a positive-going output Unpowered 2000 g voltage for clockwise rotation about the axis normal to the Powered 2000 g package top, that is, clockwise when looking down at the V , AV –0.3 V to +6.0 V package lid. DD CC V AV RATIO CC
RATE AXIS RATE OUT
Output Short-Circuit Duration Indefinite (Any Pin to Common)
VCC = 5V
Operating Temperature Range –55°C to +125°C
+ LONGITUDINAL 4.75V
Storage Temperature Range –65°C to +150°C
AXIS VRATIO/2
Stresses above those listed under the Absolute Maximum
7 RATE IN
Ratings may cause permanent damage to the device. This is a
1 A1 0.25V A B C D E F G
stress rating only; functional operation of the device at these or 002
GND LATERAL AXIS
any other conditions above those indicated in the operational 08890- Figure 2. RATEOUT Signal Increases with Clockwise Rotation section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect
ESD CAUTION
device reliability. Drops onto hard surfaces can cause shocks of >2000 g and can exceed the absolute maximum rating of the device. Exercise care during handling to avoid damage. Rev. A | Page 4 of 12 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings Rate-Sensitive Axis ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Setting Bandwidth Temperature Output and Calibration Calibrated Performance ADXRS623 and Supply Ratiometricity Null Adjustment Self-Test Function Continuous Self-Test Outline Dimensions Ordering Guide Automotive Products
