LTC6433-15

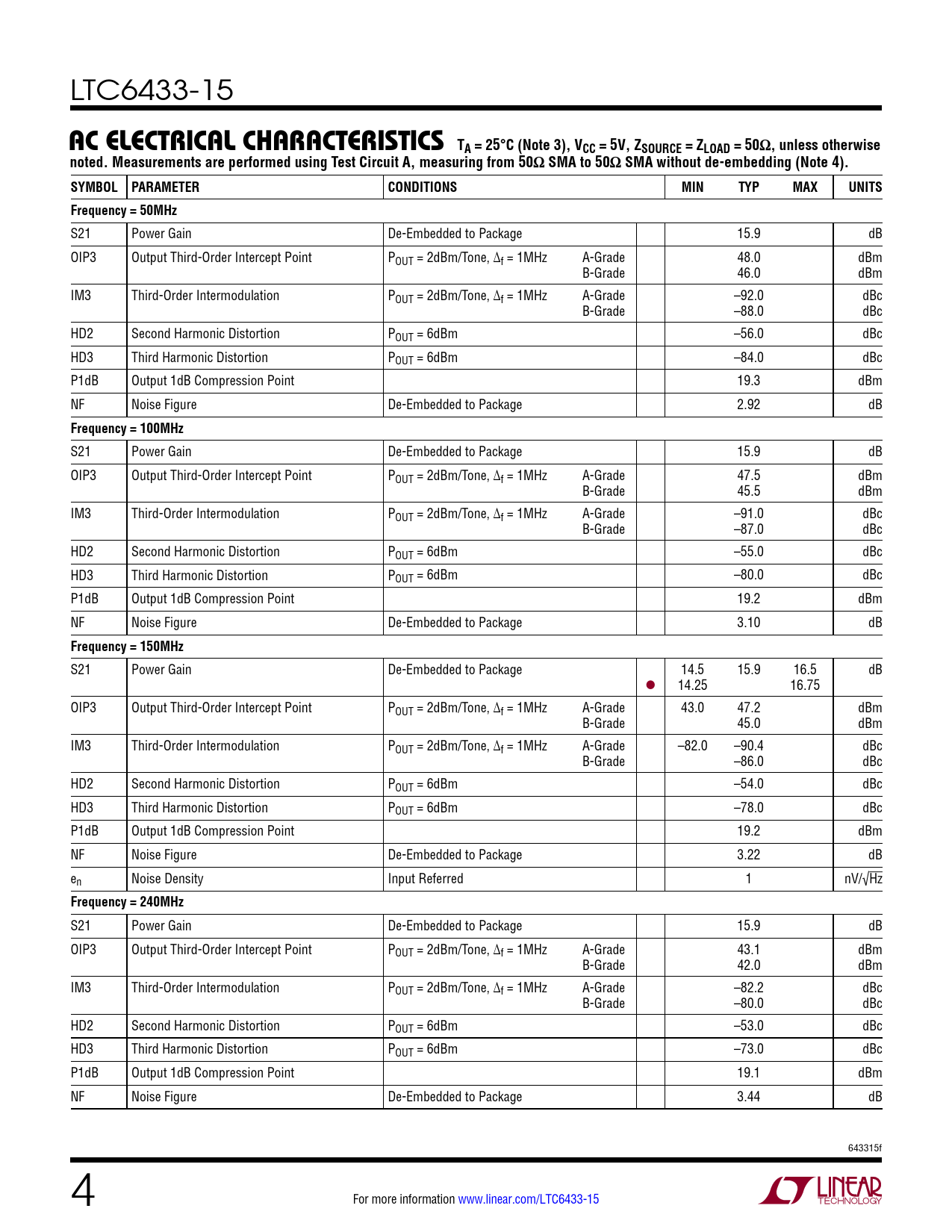

ac elecTrical characTerisTics TA = 25°C (Note 3), VCC = 5V, ZSOURCE = ZLOAD = 50Ω, unless otherwise noted. Measurements are performed using Test Circuit A, measuring from 50Ω SMA to 50Ω SMA without de-embedding (Note 4). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Frequency = 50MHz
S21 Power Gain De-Embedded to Package 15.9 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz A-Grade 48.0 dBm B-Grade 46.0 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz A-Grade –92.0 dBc B-Grade –88.0 dBc HD2 Second Harmonic Distortion POUT = 6dBm –56.0 dBc HD3 Third Harmonic Distortion POUT = 6dBm –84.0 dBc P1dB Output 1dB Compression Point 19.3 dBm NF Noise Figure De-Embedded to Package 2.92 dB
Frequency = 100MHz
S21 Power Gain De-Embedded to Package 15.9 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz A-Grade 47.5 dBm B-Grade 45.5 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz A-Grade –91.0 dBc B-Grade –87.0 dBc HD2 Second Harmonic Distortion POUT = 6dBm –55.0 dBc HD3 Third Harmonic Distortion POUT = 6dBm –80.0 dBc P1dB Output 1dB Compression Point 19.2 dBm NF Noise Figure De-Embedded to Package 3.10 dB
Frequency = 150MHz
S21 Power Gain De-Embedded to Package 14.5 15.9 16.5 dB l 14.25 16.75 OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz A-Grade 43.0 47.2 dBm B-Grade 45.0 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz A-Grade –82.0 –90.4 dBc B-Grade –86.0 dBc HD2 Second Harmonic Distortion POUT = 6dBm –54.0 dBc HD3 Third Harmonic Distortion POUT = 6dBm –78.0 dBc P1dB Output 1dB Compression Point 19.2 dBm NF Noise Figure De-Embedded to Package 3.22 dB en Noise Density Input Referred 1 nV/√Hz
Frequency = 240MHz
S21 Power Gain De-Embedded to Package 15.9 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz A-Grade 43.1 dBm B-Grade 42.0 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz A-Grade –82.2 dBc B-Grade –80.0 dBc HD2 Second Harmonic Distortion POUT = 6dBm –53.0 dBc HD3 Third Harmonic Distortion POUT = 6dBm –73.0 dBc P1dB Output 1dB Compression Point 19.1 dBm NF Noise Figure De-Embedded to Package 3.44 dB 643315f 4 For more information www.linear.com/LTC6433-15 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information DC Electrical Characteristics AC Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit A Operation Applications Information S Parameters Package Description Related Parts Features Applications Typical Application Description Absolute Maximum Ratings Order Information DC Electrical Characteristics Pin Configuration AC Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit A Operation S Parameters Package Description Typical Application Related Parts
